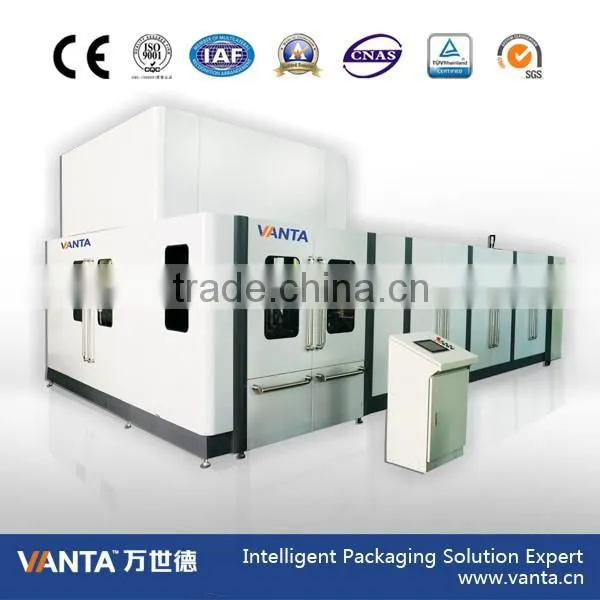

PET Bottle Blowing Machine Plastic Molding Machine 3 in 1 Machine (10XSD)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 L Bottle Machine Rotary Blow Molding Machine Cheap Mono Block MchineNegotiableMOQ: 1 Set -
Automatic Blow Molding Machine With CE Certificate (08XSD)NegotiableMOQ: 1 Set
-
Rotrary Plastic Bottle Blow Molding Machine (06XST)NegotiableMOQ: 1 Set
-
Molding Machine Bottle Making Machine 40000bphNegotiableMOQ: 1 Set
-
Labeling Machine Bottle Filling Capping and Labeling Machine Water Production LineNegotiableMOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PET
Blow Moulding Type
Stretch Blow Moulding
Automatic
Yes
Place of Origin
Guangdong, China
Brand Name
VANTA
Model Number
DSL-10XSD
Voltage
380V
Power(W)
150KW
Dimension(L*W*H)
2200*3400*3200
Weight
11T
Certification
CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Product information
1. Description:

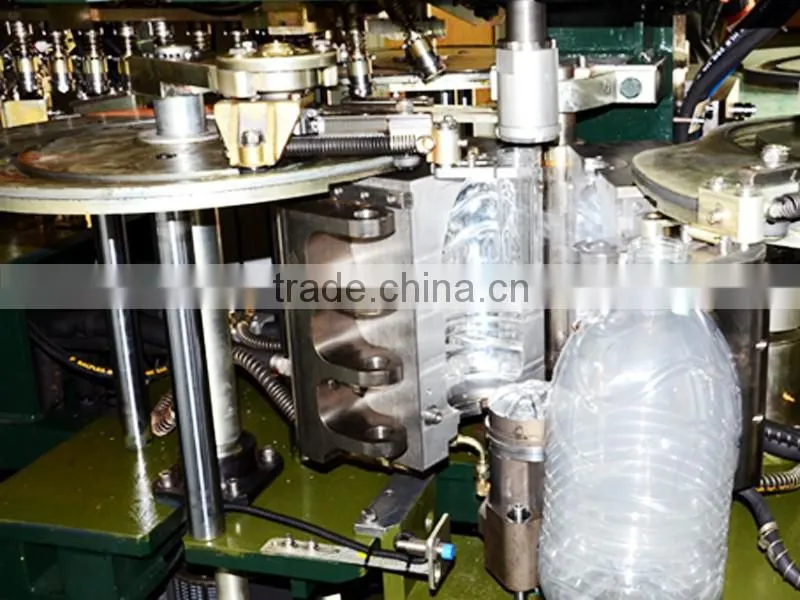

PET Bottle Blowing Machine Plastic Molding Machine 3 in 1 Machine (10XSD) The DSL series of rotary blow molding machine is developed by Vanta engineer under the world's most advanced technology for bottle making. It ensures high performances in the blow-molding of PET bottles by using high pressure air.

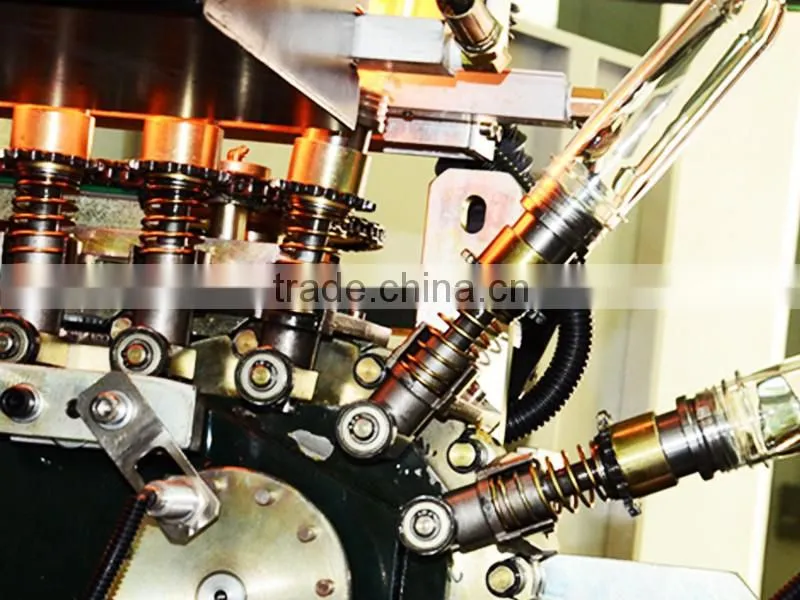

Thanks to high-tech components, minimized maintenance and operational costs and excellent quality/price ratio, the DSL series already reached industry leading level in auto preform arrangement, heating and bottle stretching.
2. Equipment datasheet:
| Model Number | Cold filling | |||
| DSL-10XSD | ||||
| PRODUCTION DATA | Mould cavities | N | 10 | |
| Max. body diameter | mm | 110 | ||
| Max. Height | mm | 320 | ||
| Max. diameter | mm | 38 | ||
| Max. preform Height | mm | 135 | ||
| Max. capacity | ml | 2300 | ||
| Max. output for 500ml , bottle (*) | pcs/h | 16000 | ||
| Nominal output for 500ml , bottle (*) | pcs/h | 15000 | ||
| Rate of finished product(*) | % | ≥99.5 | ||
| DIMENSIONS | HOST | Length *Width*Height | mm | 2200*3400*3200 |
| Weight | kg | 11000 | ||
| HEATING FURNACE | Length *Width*Height | mm | 4050*1210*2160 | |
| Weight | kg | 2500 | ||
| ELECTRICAL FEEDING | Voltage | V | 380 | |
| Frequency | Hz | 50 | ||
| Power line diameter | mm² | 120 | ||
| Total power installed | kW | 150 | ||
| Total motors/power installed | kW | 5.5 | ||
| Medium power absorbed | kW | 90 | ||
| Voltage permitted | ±5% | |||
| Frequency permitted | ±1% | |||
| Voltage auxiliary | V DC | 24 | ||
| Distribution | 3PH + PE | |||
| Cos. | 0.9 | |||
| COOLING /HEATING SYSTEM | BASE MOULD | Water inlet temperature (**) | ºC | 8~10 |
| Water inlet pressure (**) | bar | 4~6 | ||
| Power installed (**) | kW | 3 | ||
| BODY MOULD | Water inlet temperature | ºC | 10~15 | |
| Water inlet pressure | bar | 4~6 | ||
| Power installed (**) | kW | 4 | ||
| BLOW AIR | Nominal pressure | bar | 40 | |
| Air rate (**) | m3/min | 12 | ||
| Filtering grade(filter) | micron | 0.01 | ||
| Humidity | dehumidification | |||
| Oil | Free | |||
| HEATING | Heating groups * pcs | n | 8*9 | |
| ENVIRONMENT | Environment temperature (**) | ºC | 10 ~40 | |
| Environment humidity (without condensate) | % | 5 ~60 | ||
| Max. altitude(over sea) | m | 4000 | ||
| CONNECTIONS | Connection service air | Inch. | 1 | |
| Connection blow air | Inch. | 1,5 | ||
| Connection water and oil | Inch. | 1.5 | ||
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise machine
3.8 Low cost of production
3.9 Low failure rate
4. Products:
