Help CenterAutomatic Blow Molding Machine With CE Certificate (08XSD)
Related Products
-
Rotrary Plastic Bottle Blow Molding Machine (06XST)NegotiableMOQ: 1 Set -
Molding Machine Bottle Making Machine 40000bphNegotiableMOQ: 1 Set
-
Labeling Machine Bottle Filling Capping and Labeling Machine Water Production LineNegotiableMOQ: 1 Set
-
Linear PET Blow Molding Machine Bottel Blowing Machine (2cav. Max. 6L, 1200-1500bph)NegotiableMOQ: 1 Set
-
Plastic Blow Molding Machine Linear PET Blow Moulding Machine (9 Cav. Max. 600ml, 12500bph)NegotiableMOQ: 1 Set
1. Description:

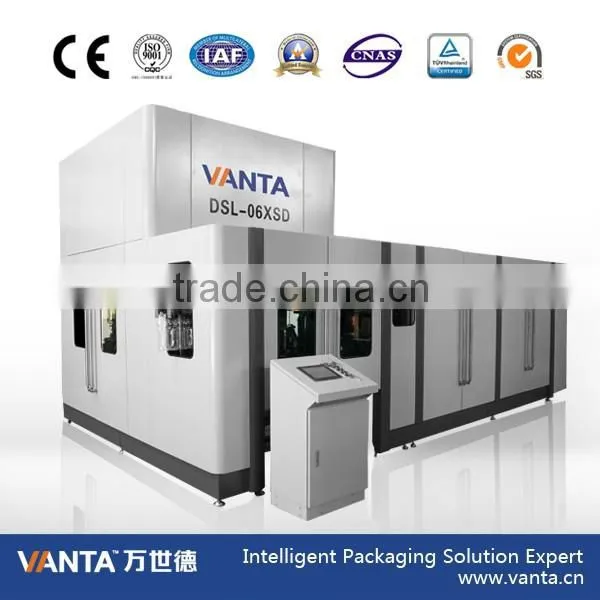

The DSL series of rotary blow molding machine is developed by Vanta engineer under the world's most advanced technology for bottle making. The PET blowing machien ensures high performances in making PET bottles by using high pressure air.
Thanks to high-tech components, minimized maintenance and operational costs and excellent quality/price ratio, the DSL series blowing machiner has already reached the leading level in the field of auto preform arrangement, heating and bottle stretching.
2. Datasheet
MODEL |
DSL-08XSD |
||
PRODUCTION DATA |
Mould cavities |
N |
8 |
|
Max. capacity |
ml |
2300 |
|
Max. output for 500ml , bottle (*) |
pcs/h |
13000 |
|
Rate of finished product(*) |
% |
≥99.5 |
|
Host DIMENSIONS
|
L * W * H |
mm |
2200*3400*3200 |
|
Total power installed |
kW |
150 |
|
Medium power absorbed |
kW |
90 |
BLOW AIR |
Nominal pressure |
bar |
40 |
|
Air rate (**) |
m3/min |
10 |
|
humidity (without condensate) |
% |
5 ~60 |
|
Max. altitude(over sea) |
m |
4000 |
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise machine
3.8 Low cost of production
3.9 Low failure rate
4. Products:
