Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > CNC Drilling Machining Center Curtain Wall Profile Machine

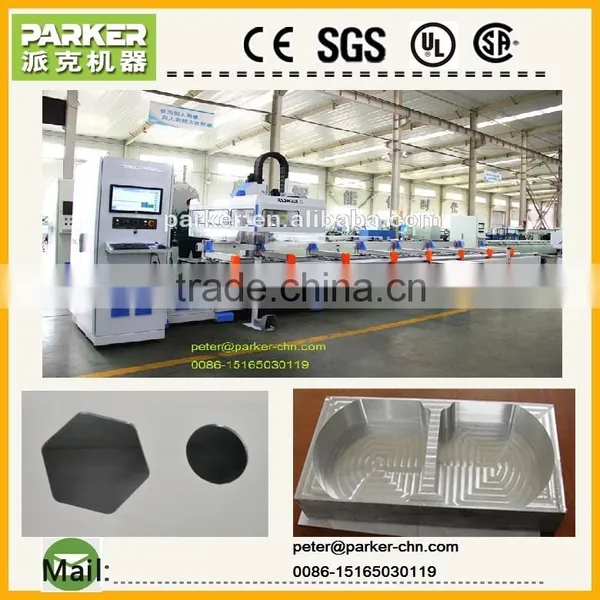

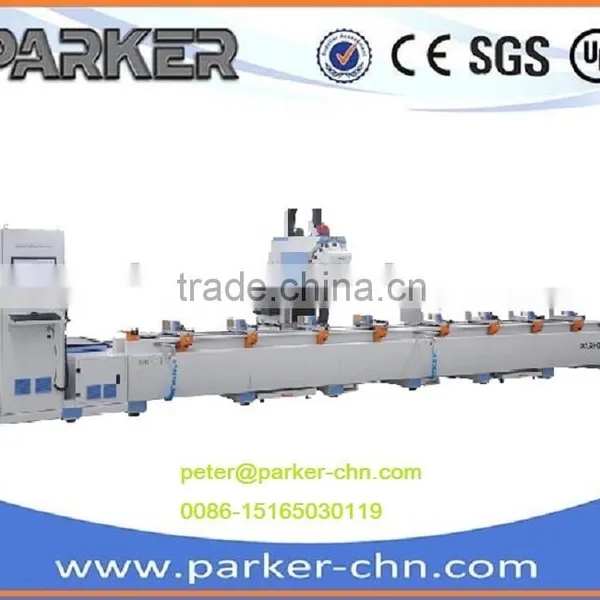

CNC Drilling Machining Center Curtain Wall Profile Machine

Name: CNC Drilling Machining Center Curtain Wall Profile Machine
Brand: PARKER
SKU: 126027985
Availability: InStock

US$ 36,900 - 79,900 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Jinan Parker Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Place of Origin Shandong, China

Brand Name PARKER

Model Number DMCC3

Voltage 380V/50Hz

Power(W) 13KW

Dimension(L*W*H) 10000mm x2300mm x 2800mm

Weight 5000kg

Certification ISO9001 CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

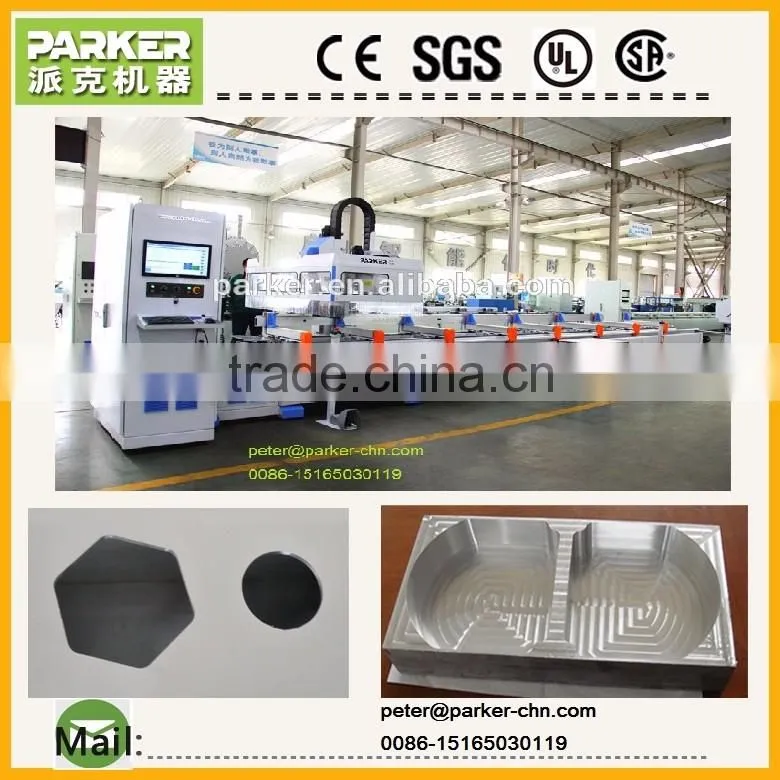

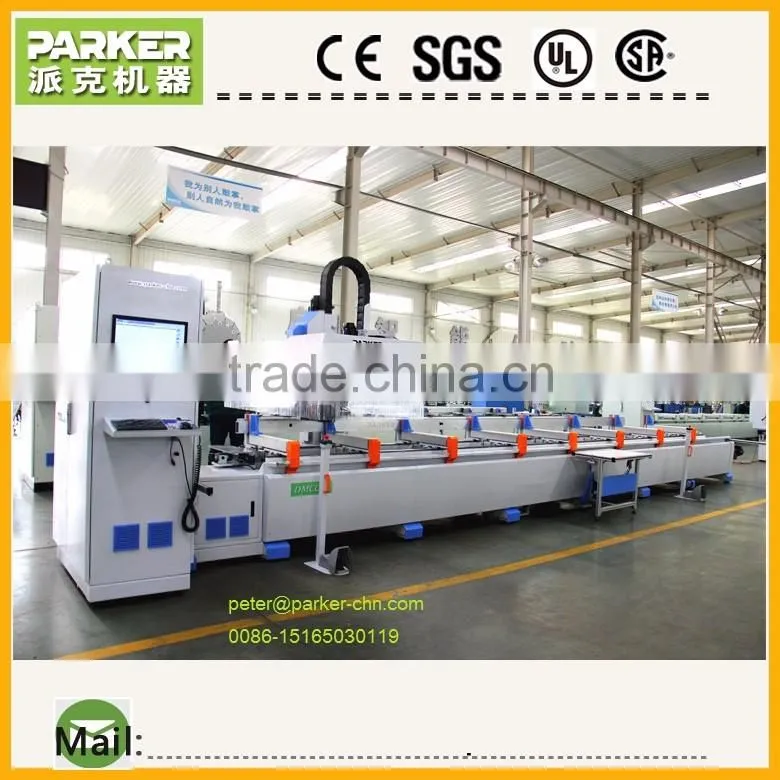

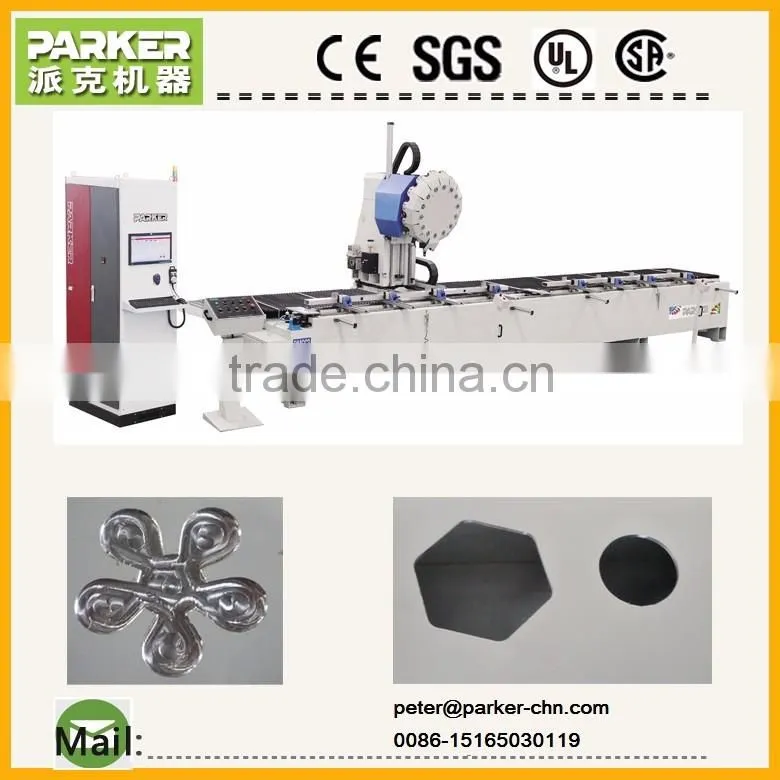

CNC Drilling machining center curtain wall profile machine

Product Description

Application field: CNC automatic drilling and grooving and tapping machine Drilling and milling machine bed,

Steel machining center, Hardware lock handle machining center,Rail way processing machining center,Rail Transit machine ,aeronautical and space technologies,auto parts machine, automobile wheel hub/bearings machine,parts mould machine,Automobile skylight machine,Automobile Sunroof and Panoramic sunroof machine and so on.
Aluminum Architecture Material/PVC Window Door Profiles/Wooden Profiles/Railway Steel Profiles/Curtain Wall and Facade Lock Hardware etc. CNC Drilling machining center curtain wall profile machine

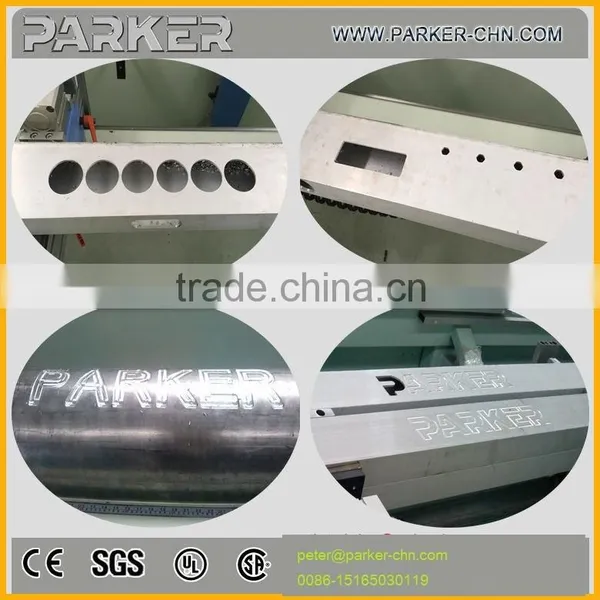

1 It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.

2 The full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

3 Designed the moving work table for material, and moving box.

4 The list of processing about drilling, milling, tapping into one clamping.

5 The body is welding by steel tube with high quality and be processed by scratch push, so it is stability and strong steel.

6 Ball screw from ABBA, HIWIN from Taiwan, UUC rack from Taiwan keep high precision.

7 Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.

8 Double location design, the machine goes on working when feeding profiles interactively, which makes the equipment improve efficiency greatly.

9 Power of continuing function, the machine can go on processing when the power is get through. Linked speed(processing, interpolation) can get to 1000mm/min

10 It is equipped with lock tool apron, which makes it convenient to change the cutters.

11 All the components adopt batch-type feed system, central lubrication; the cutters adopt freezing spray system to cooling, which can improve the life and working depth of work piece.

12 The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.

13 Use plant oil to spray, lubricate once half an hour.

14 There is safe photo electricity protection screen in the front of the machine, equipped with the location of machine head detection, the location of operators detection to insure the safe of operators.

Parameter:

Voltage: 380V 50HZ

Total Power: 13KW

Location error:±0.05mm

Resetting error: ±0.02mm

Processing error: ±0.1mm

Surface roughness: Ra12.5

X axis:7070mm

X axis running speed: 48m/min

Y axis:40mm

Y axis running speed: 48m/min

Z axis:572mm
