Aluminium Window Door Frame Assembly Machine from China Jinan Factory

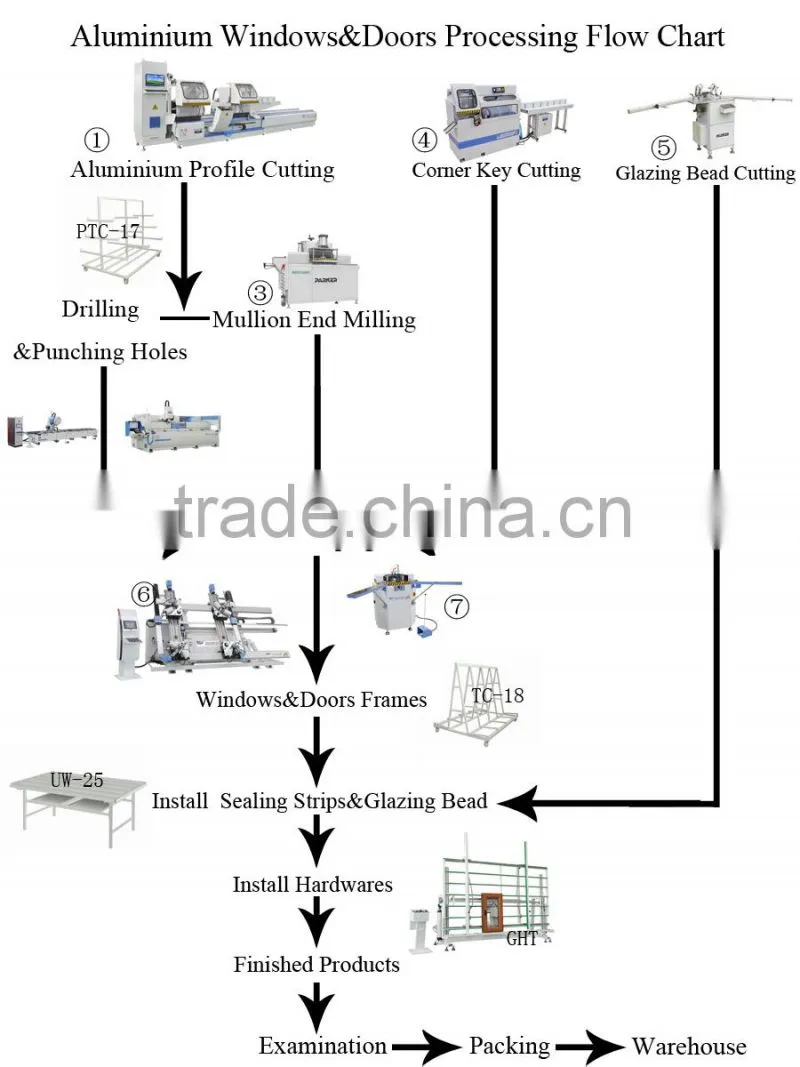

Basic Window door Making Machine Line :
A: Parker Machinery Co.,Ltd China Real Video Show Links:
/watch?v=hYwmgxfRge4
1.LJZ2-CNC-E500 CNC Double cutting machine
/watch?v=TN-E8b2g_DA
2.A8-500 Aluminum 3Axis Double Cutting Saw With CNC
/watch?v=ZPf0rh6d4pc
3.New model APA3+ DMCC3H Axis Aluminum Profile CNC machining center
/watch?v=d5NHjVsZ-C4
4.4 axis machining center DMCC6
/watch?v=gjHc4hsMFQA
5.DMCC82 4 AXIS milling and drilling machine
/watch?v=tHN0X175AHQ
6.ACH130 Aluminum Alloy High Speed Copy Router
/watch?v=HFf1_HH0yfk
7.A9 Aluminum Profile Intelligent Cutting Center
/watch?v=Rrz37cu9qv8

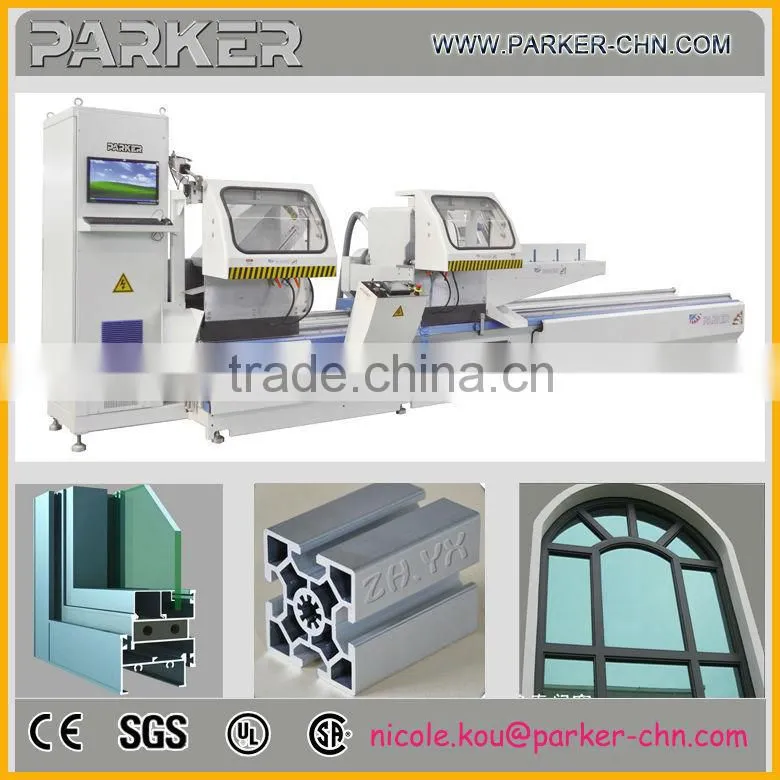

1) Aluminium Profile Double Head Cutting Machine : Model A8-500
Technical Data:
| Voltage | 380V 50 Hz |
| Power | 6.8 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 (Standard Size) |
| Cutter Moving Speed | 0 to 2 m/min |
| Cutting Length of CNC Cutting Saw |
Max. 5000mm Min. 480 at 90° Max. 5000mm Min. (Double Height of Profile) at 45° |
| Cutting Width | 120 mm |
| Cutting Height | 230 mm |
| Cutting Angle | 45° to 157.5° |
| Repeat Locating Length Error | ± 0.2 mm |
| Surface Plainness | ± 4´ |
| Overall Dimension |
6800 mm × 1500 mm × 2040 mm |

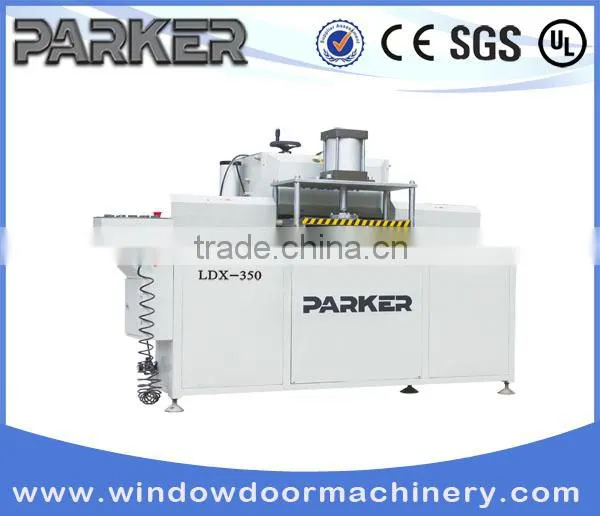

2)Aluminium Window Door Mullion Cutting Machine:LDX-250
Technical Data:
| Type | LDX-250 Automatic Aluminum Profile End Milling Machine |
| Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Motor Power | 6.6 kW |
| Rotary Speed | 2840 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Diameter of Milling Cutter | 250 mm |
| Motor Adjusted Travel | 0 to 80 mm |
| Overall Dimension | 2300 mm × 1060 mm × 1670 mm |
| Weight of Aluminum Profile Milling Machine | 842 kg |

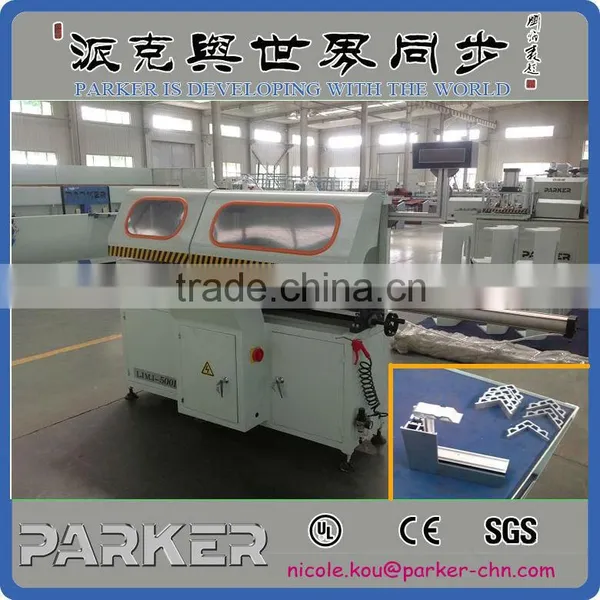

3) Aluminium Window Door Corner Key Cutting Machine : Model LJMJ-500B:
Technical Data:
| Model | LJMJ-CNC-500B CNC Connector Key Cutting Saw |
| Voltage | 380V 50 Hz |
| Power | 2.2 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 200 L/min |
| Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 |
| Feeding Speed | 0 to 3 m/min |
| Rotary Speed | 2800 rpm |
| Cutting Length | Max. 600 mm Min. 3 mm |
| Cutting Width | 140 mm |
| Cutting Height | 140 mm |
| Surface Plainness | ± 0.1 mm |
| Surface Harshness | Ra12.5 µ m |
| Overall Dimension | 1700 × 1700 × 1400 (mm) |

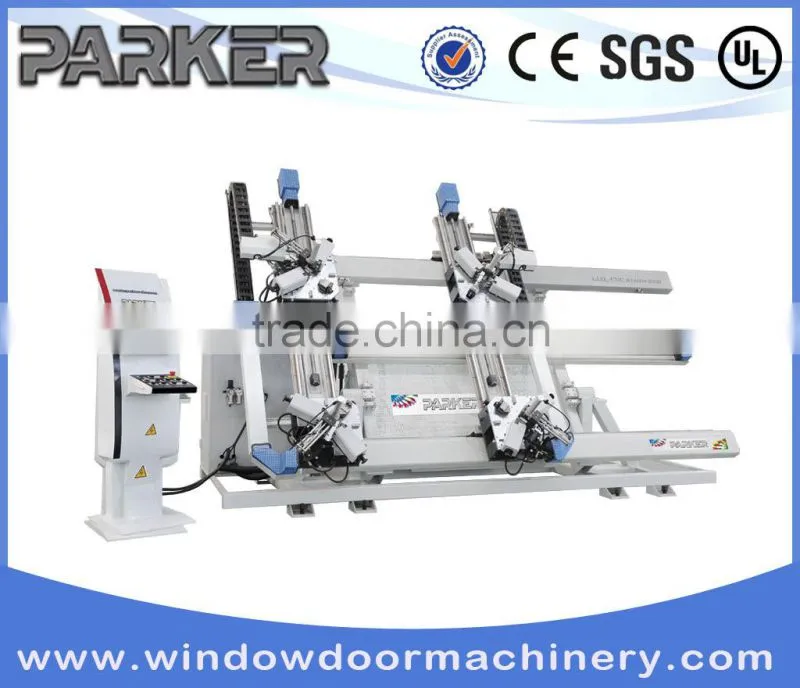

4) Aluminium Window Door Corner Single Head Crimping Machine : Model LJJ-120 and LJJZ4-CNC-1800X3500:
Technical Data
| Model | LJJZ4-CNC-1800×3000 |
| Type | CNC Four Head Corner Crimper |
| Power Supply | 380V 50 Hz |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Oil Tank Capacity | 60 L |
| Air Consumption | 0.45 L/min |
| Corner-Assemble | 0 to 50 mm |
| Max. Dimension | 1800 mm × 3000 mm |
| Min. Dimension of Window | 510 mm × 510 mm |
| Dimension of Profile | 100 mm |
| Overall Dimension | 5000 mm × 2000 mm × 2600 mm |
| Weight of CNC 4-Head Corner Crimping Machine | 3000 kg |
Technical Data
| Model | LJJ-120 Hydraulic Corner Crimping Machine |
| Joint Seam Error | ≤ 0.15 mm |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Input Power | 1.5 kW |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 2 L/min |
| Oil Tank Capacity | 20 L |
| Width of Profile | 120 mm |
| Overall Dimension | 1000 mm × 1200 mm × 1200 mm |
| Weight of Single Head Crimping Machine |
360 kg |

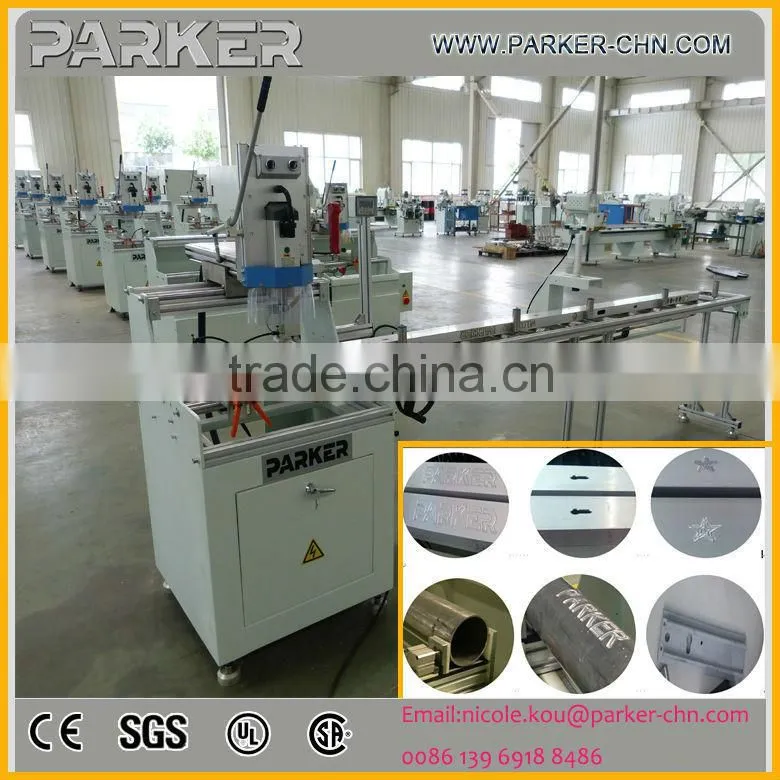

5) Aluminium Window Door Single Axis Copy Router Machine : ACH130
Technical Data:
| Model | ACH-130 High Speed Aluminum Curtain Wall Single Axis Copy Router |
| Voltage | 380V 50 Hz |
| Motor Power | 3.0 kW |
| Air Pressure | 0.5-0.8 MPa |
| Diameter of Milling Cutter | 8 mm |
| Air Consumption | 10 L/min |
| Processing Profile Section | 200 mm (W) × 150 mm (H) |
| Copying Dimension | 370 mm × 125 mm |
| Overall Dimension | 720 mm × 1070 mm × 1760 mm |
| Weight of High Speed Copy Router | 225 kg |
