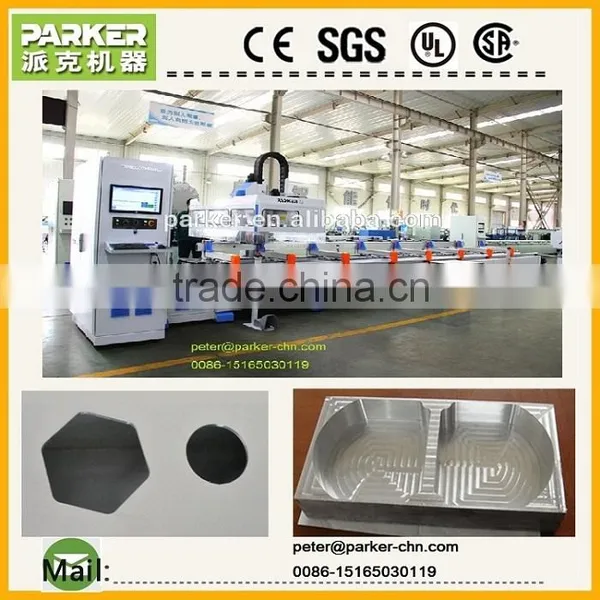

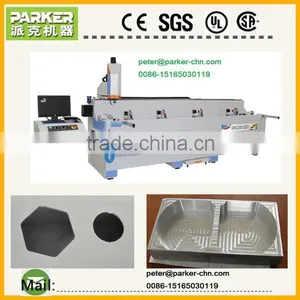

high-speed-drilling-tapping-and-milling-machine
Product Description
Feature:
For curtain walls, aluminium profiles and so on.
Drilling and milling functions.
Spindle: Italy HSD, 18000 rpm/min.
Industrial personal computer: Taiwan ADVANTECH.
Servo motor and driver: Japan OMRON.
Ball screw and square guide rail: Japan ABBA.
A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.
Half dry cooling system, with plant oil, no damage to workers and environment.
Continue to work from the breakpoint.
Equipped with professional software CAD-CAM.
Light curtain to protect workers effectively.
Lock Knife block is convenient to change cutters.
Parameter:
Power 380V/50Hz/11kw
Air pressure 0.5-0.8Mpa
Aluminum machine X axis stroke 3600mm
X axis speed 120m/min
Aluminum machine Y axis stroke 380mm
Y axis speed 80m/min
Aluminum machine Z axis stroke 400mm
Z axis speed 60m/min
Aluminum machine Max. processing speed 3m/min
Location error ±0.05mm
Resetting error ±0.02mm
Aluminum Processing error ±0.1mm
Surface roughness Ra12.5μm
Overall dimension 5380x1890x2240mm
Weight 3000kg
Aluminum machine max. tool diameter 13mm
Other Aluminium Window Door Machines:

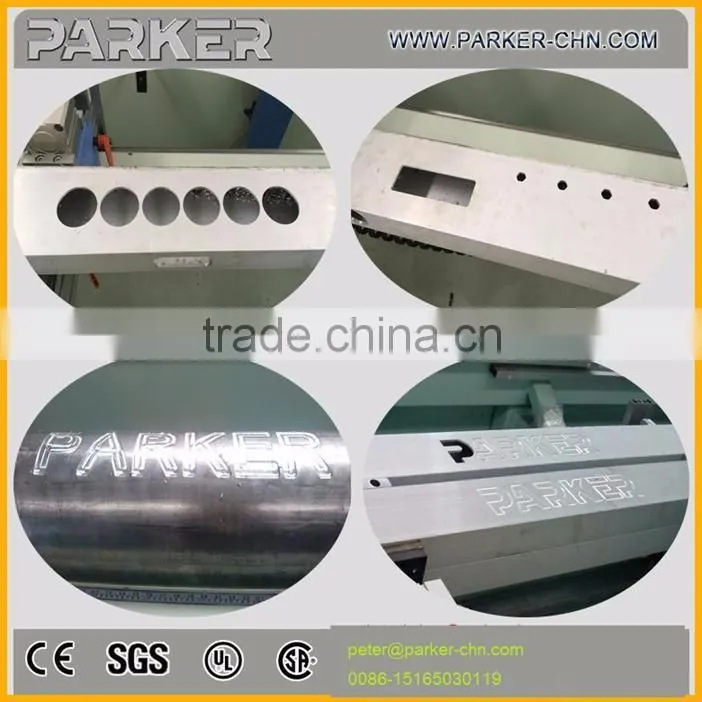

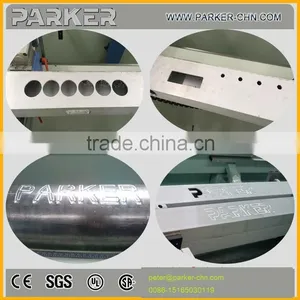

Samples:
Exhibitions:

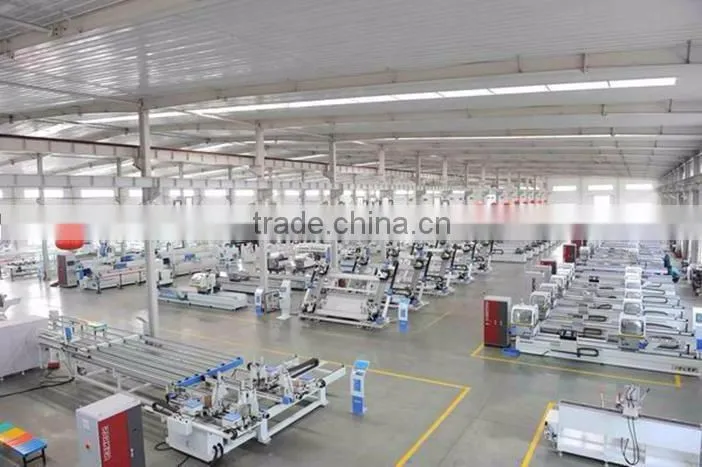

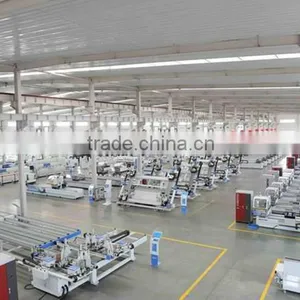

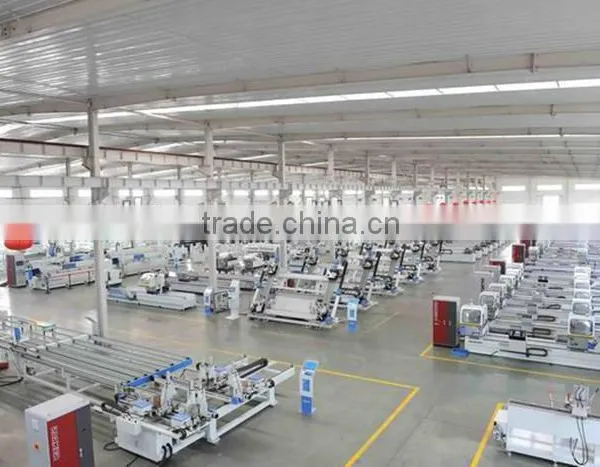

Factories of Customers:

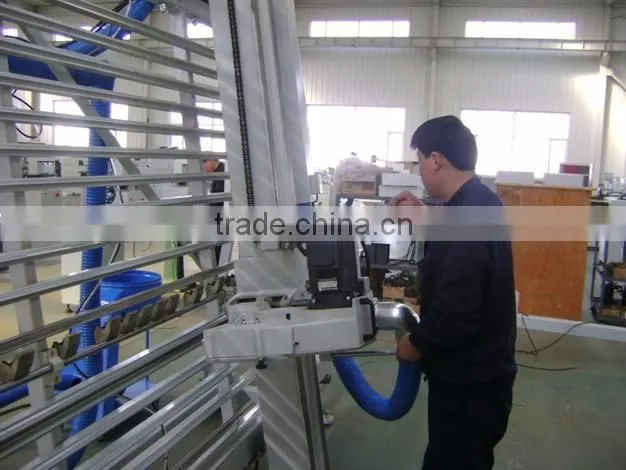

Customers Visit:
Our Services
Parker Service Team:
Packaging & Shipping
Packing & Loading:
FAQ
Contact Information:
JINAN PARKER MACHINERY Co.,LTD
Website: ;
Contact: Peter
Cell: 0086-151-6503-0119
Skype: oscarwilde2012
Email: Peter
