cnc glass cutting machine with optima system italy,cnc glass cutting machine PARKER
- 200 Set / Sets per Month
- QINGDAO SHANGHAI CHINA
- T/T Credit Card PayPal
Product Details
| Condition: | New | Machine Type: | Glass Cutting Machine | Production Capacity: | 30000M |
| Place of Origin: | Shandong, China | Brand Name: | PARKER | Model Number: | RGC-CNC |
| Voltage: | 380v 50hz | Power(W): | 5kw | Dimension(L*W*H): | cnc glass cutting machine |
| Weight: | Glass cutting machine | Certification: | CE | Warranty: | 1years |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

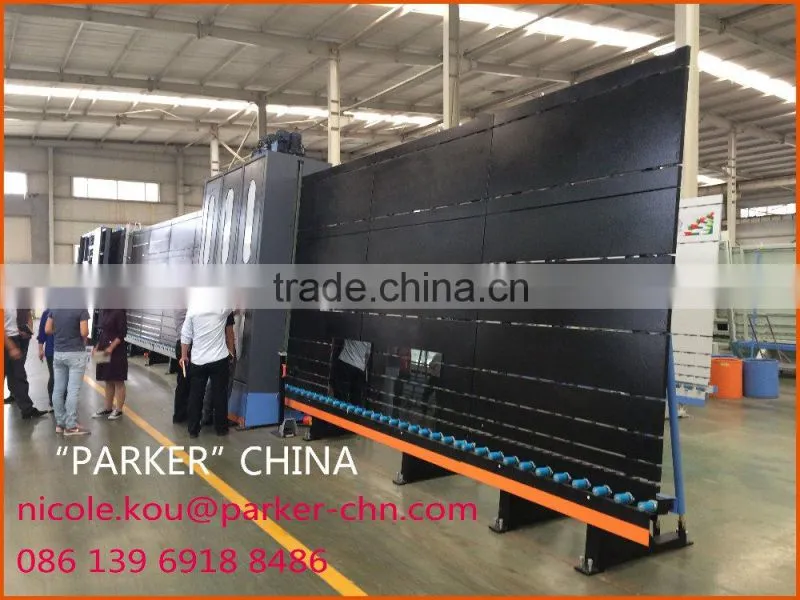

Automatic Glass Cutting Machine /CNC Glass Cutting Machine for insulating glass production line
B: Video Links:
1) Parker Machinery Co.,Ltd China Real Brief Video Links:
/watch?v=hYwmgxfRge4
1) Insulating Glass Prodution Line IGV-22S Video Links:Model: IGV-22S
/watch?v=Sp3_iYgl0CQ&index=3
2) CNC Glass Cutting Machine Video Links:Model:RGC-CNC
/watch?v=UYN9cZvEOY0&index=2
3)Molecular Sieve Filling Machine Video Links:Model:EMSF
/watch?v=w-UyGbhN1-0&index=4
4)LOW-E/ Coated Glass Film Removing Machine Video Links:Model:A4 (any shape!!)
/watch?v=VhuCbUGK1ak&index=9
5) Rotary Coating Machine Video Links:Model:RCT-5
/watch?v=knXex4NuboY&index=5
6)Butyl Coating/Hot Melt Glue Coating Machine Video Links:Model:BC-10
3)Product hot point/specification:
Glass cutting machine
A:load glass,cut glass automatically.
B:Adopt OPTIMA Italy software
C:Similar as Bottero

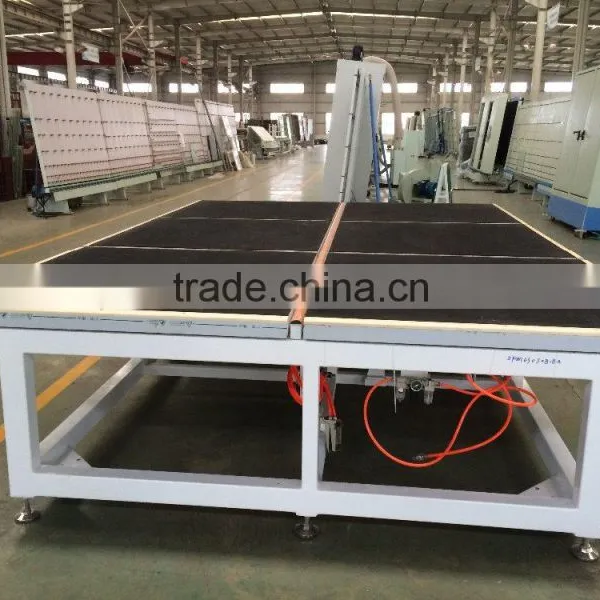

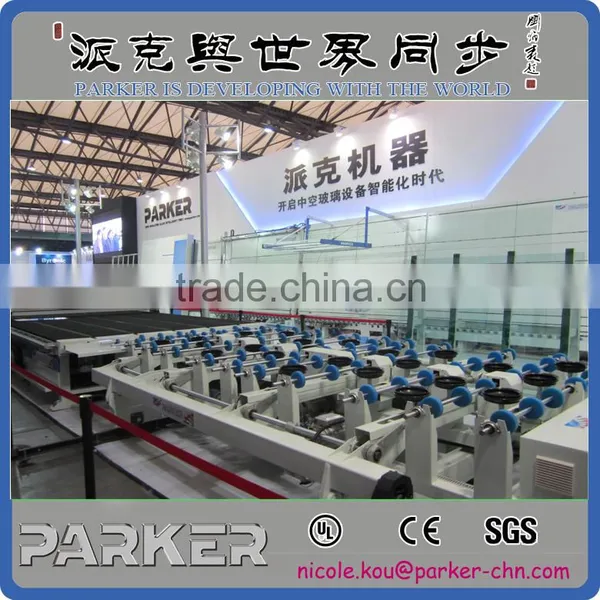

Automatic double multi-position glass loading machine
1)Loading Sheet size:
Min.loading size:1500*1500mm,
Max.loading size:2440*3660mm
2)Loading thickness: 2~19mm.
3)The fastest loading cycle: 30-60s(adjustable)
4)Transfer speed: 0~40m/min(adjustable)
5)Max.suction depth: 750mm
6)Max.loading weight: 900Kg
7)Unilateral upper arm volume: Four arms.
8)The number of single arm suckers:Three.
9)Turning arm:Double
10)Loading position:Multi-position.
11)Power supply/Power
Installed power supply: 380V/50Hz(Special condition can be adjusted according to customer’s demand)
12)Installed power: 9KW about 9kw.
13)Compressed air: 0.5-0.8Mpa
14)Vacuum pressure: -70~90Kpa((according to glass’s depth can be adjusted)
15) X axis normal working speed: 25m/min(Variable frequency can be adjusted)
Y axis normal workding speed: 5m/min (Variable frequency can be adjusted)
16)Table Height: 900±50mm

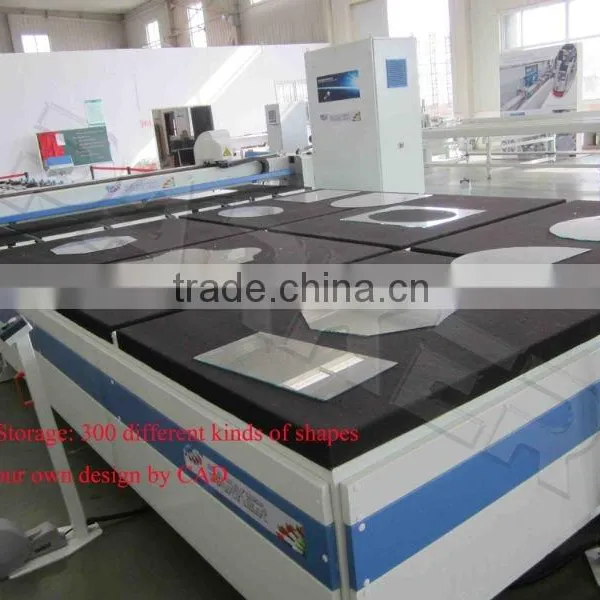

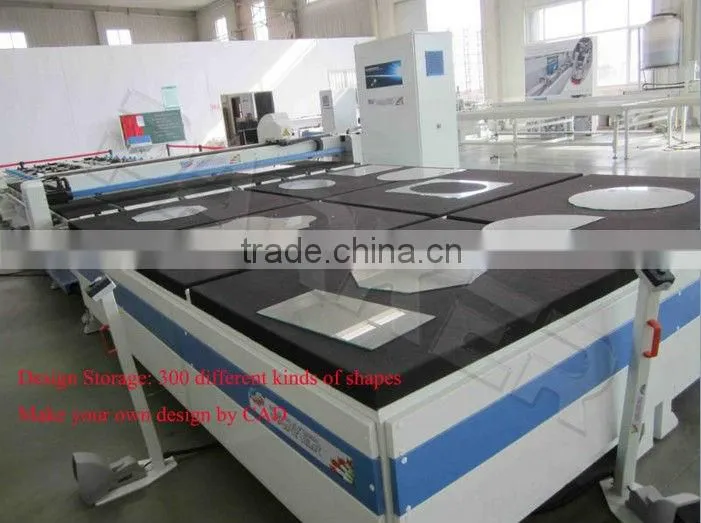

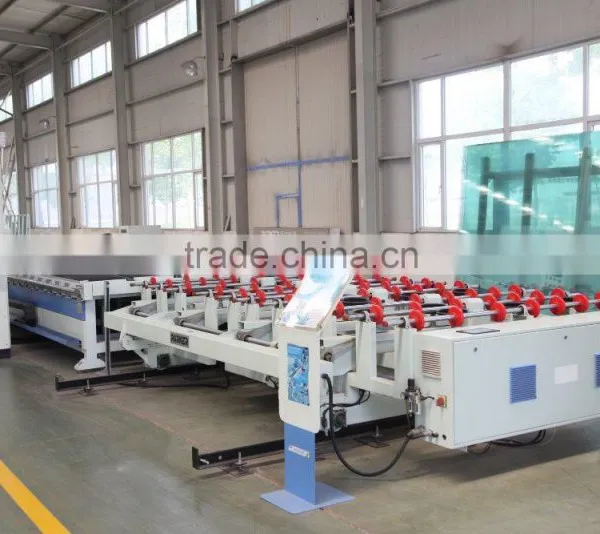

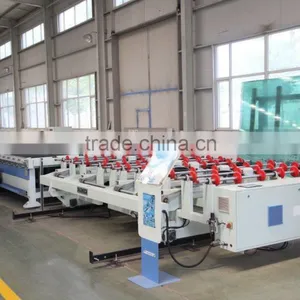

Automatic Glass Cutting Machine
Parameter:
1) Cutting the max. glass size:3660*2500mm
2)The height of working table:900±50mm.
3)Cutting thickness:2~25mm
4)Cutting precision:≤±0.20mm/m
5)Cutting bridge speed:0~150m/min.(adjustable)
6)Cutter head speed≥160m/min
7)The error for cutting head positioning ≤±0.15 mm

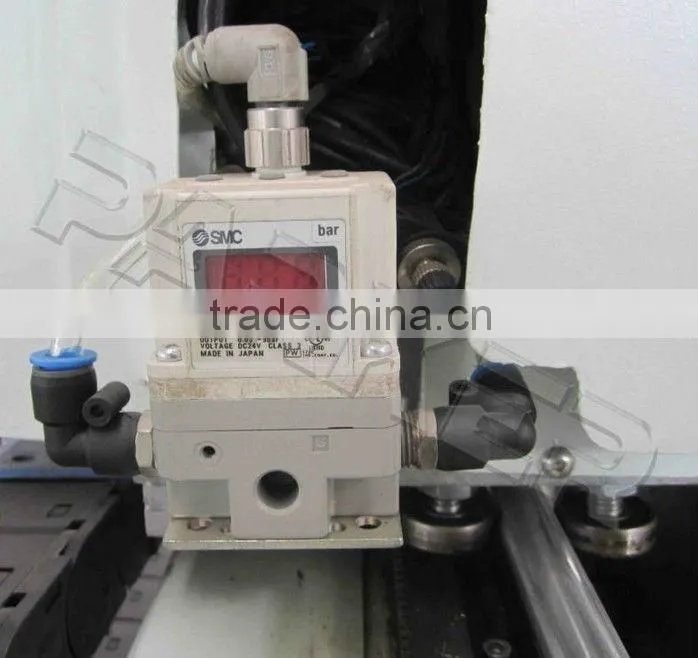

8)Cutting operation:Using air pressure and the spring SMC precision digital display module, the cutter head rotate 360 degrees, upper and lower cutter can cut any different glass shapes.
9)Oil injection mode: Automatic oil inject device
10)Conveying device: Automatic induction of synchronous belt transmission device (It is convenient for glass transmission to achieve the automatic transmission to reduce the manual workload )
11)Glass positioning:The photoelectric scanning positioning system and machine positioning be used together
Max.Glass Cutting Size:3.66x2.5m
Cutting glass thickness:2-25mm
Cutting and Optimization Software: OPTIMA Italy
Main Pneumatic Parts: Japan SMC, Taiwan AIRTAC

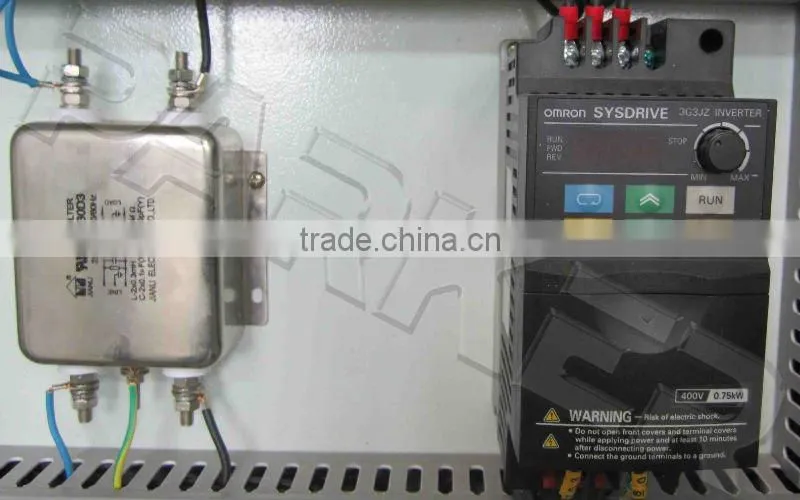

Electrical Parts: OMRON and SCHNEIDER
Controlling Card: Imported from Italy

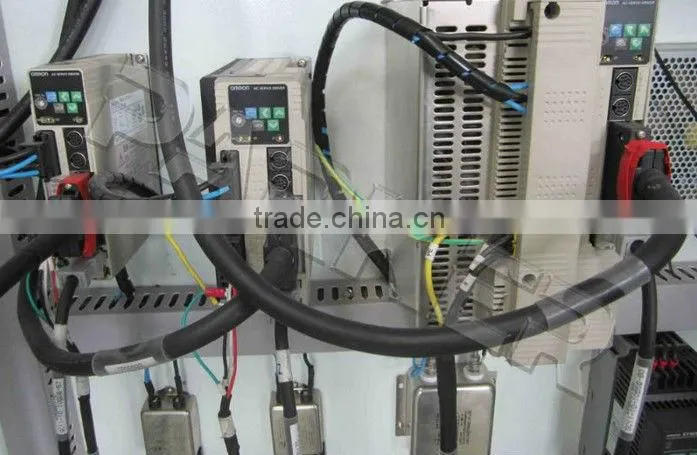

Servo System: Japan OMRON
PC Computer Control: Windows interface
Cutter Wheel or Wheel Clamp: Italy BAILEY
Main Bearing: Japan NSK
Introduction
Parker automatic glass cutting machine is quite suitable for cutting different specifications of linear and rectangular glass.
It should be the first choice for enterprises engaged in processing sophisticated glass, such as decoration glass, special glass, commodity glass, glass for electronic applications, glass for medical use, etc. Featuring accurate transmission, and fast and convenient cutting size adjustment, the automatic glass cutting machinery is especially suitable for users who want to frequently change the specification of glass.
Features
1. This type of glass cutting table is equipped with advanced international high-precision servo motors and bearing spindles. The onboard controller consists of PLC computer, CD drive, tough screen and reliable peripherals.
2. Parker automatic glass cutting machinery adopts imported servo motor, CNC controller and guide rail.
3. Advanced control interface makes it easy to handle and acquire high cutting precision.
4. It adopts double mechanical movement bridge system that is automatically driven by motor.
5. Glass breaking machine and glass loading machine are optional.
6. Our automatic glass cutting machinery is more reliable and endurable.
Technical Specifications
| Voltage | 380V / 220 V 50 Hz |
| Power | 5 kW |
| Air Pressure | 0.8 Mpa |
| Max.Glass Cutting Size | 3660 mm × 2500 mm |
| Cutting Bridge Speed | 0 to 150 m/min |
| Working Table Height | 900 ± 50 mm |
| Glass Cutting Thickness | 2 to 25 mm |
| Cutting Precision | ≤ ± 0.20 mm |
| Cutter Head Speed | ≥ 160 m/min |
| Cutter Positioning Error | ≤ ± 0.15 mm |
| Cutting Operation | Automatic glass cutting machinery uses air pressure and the spring SMC precision digital display module. The cutter head rotates 360 degree. The upper and lower cutter can cut glass into different shapes. |
| Oil Injection Mode | Automatic oil inject device |
| Conveying Device | Automatic induction of synchronous belt transmission device (It is convenient for glass transmission to achieve automatic transmission to reduce the manual workload.) |
| Glass Positioning | The photoelectric scanning positioning system and machine positioning can be used together |
| Platen | Imported, waterproofing or fireproofing |
| Rack or Guide Rail | Taiwan YYC |
| Main Bearing | Japan NSK |
| Transmission Belt or Belt Wheel | Italy BAILEY |
| Cutter Wheel or Wheel Clamp | Germany BOHLE |
| PC Computer Control | Windows interface |
| Servo System | Japan OMRON |
| Controlling Card | Imported from Italy |
| Electrical Parts | OMRON and SCHNEIDER |
| Main Pneumatic Parts | Japan SMC, Taiwan AIRTAC |
| Cutting and Optimization Software | OPTIMA Italy |
Details Images Show

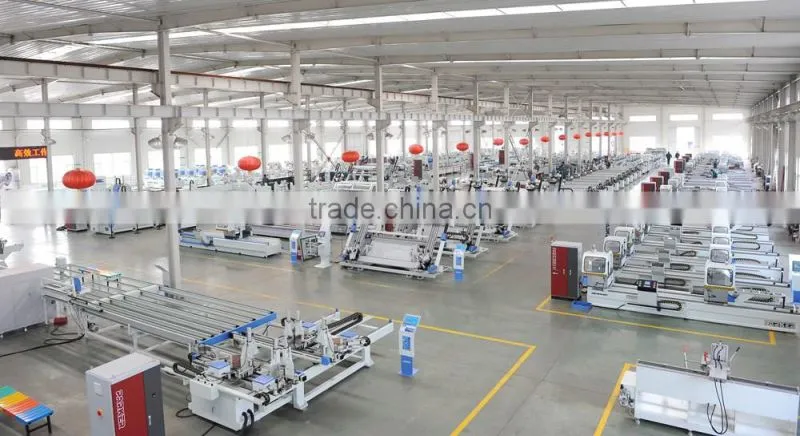

Parker Machinery Co., Ltd is a leading supplier and exporter of door and window making machine in China.
We mainly provide aluminum profile Machine:
1)Aluminium window door frame machine :CNC cutting machine,
2) insulating glass processing machine.
3)PVC window and door machine,
4)3Axis,4Axis CNC Drilling and Milling Machine Center curtain wall equipment, and so on.
Complying with European standards, we always purchase main parts internationally.
Our machinery has passed CE and UL certifications.
They are exported to over120Countries and regions, such as North America, East Europe and the Middle East
Aluminium Window Door Machine,Aluminium profile Saw Cutting Machine,Aluminium Window door frame Corner Crimping Machine, Window door Punching Machine, 3 Axis 4 Axis Machine center/ Milling and Drilling machine,China Aluminium Door Makine, Window door Fabrication Machine.
