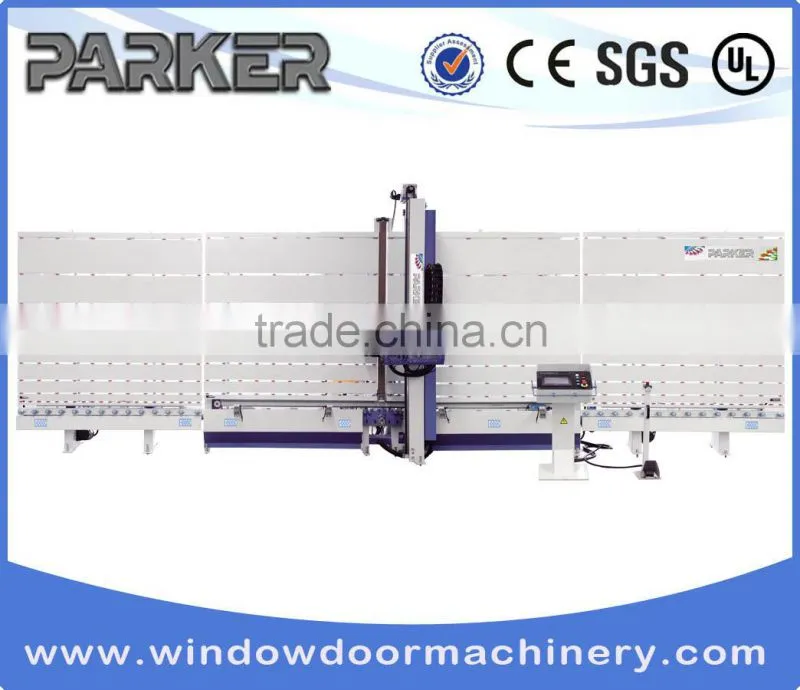

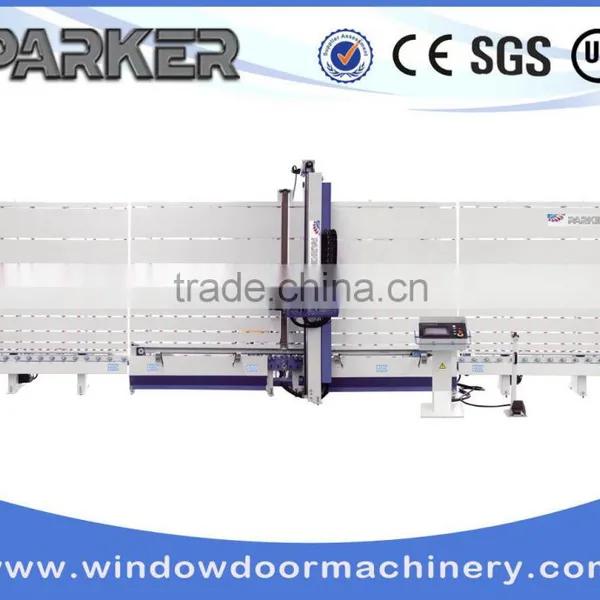

automatic vertical glass film removing machine with cnc

Model: AM22-A4

Features:

1、 The collocation of British Motion Controller and Japanese Panasonic Motion system can realize superior performance. The adoption of E-view touching screen makes operation easier;

2、 The graphical design rather than literal expression makes it easier and vivid for operating the touching screen, and live supervision of the working situation can be realized on the screen;

3、 Four-axis servo motors work together realizes precise location ;

4、 Regular shape can be monitored and processed automatically according to the input size. And there is no need to change the grinding wheel for irregular shape;

5、 The adoption of linear guide rail increases working accuracy;

6、 Low-E and coated glass can be identified automatically;

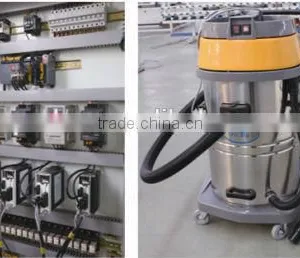

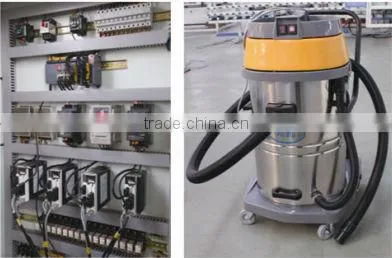

7、 Automatically dust removal;

8、 Automatically revising and correcting the grinding wheel;

9、 The adoption of variable frequency motor in assistant transmission section makes it much stable and reliable;

10、 Laser cutting and CNC bending technologies makes the back plate high-strength, good-vision and hard-distortion;

11、 The seamless design of this machine matches all kinds of vertical glass production line.

Parameter:

1、 Power supply: 380V 50HZ

2、 Total power: 3.35KW

3、 Conveying motor: 0.75KW

4、 Lifting motor of grinding head： 1.5KW

5、 Conveying motor of vacuum： 0.75KW

6、 Rotary motor of grinding wheel： 0.4KW

7、 Dust cleaner motor: 1.1KW

8、 Assistant convey motor： 0.8KW

9、 Convey speed: 30m/min

10、 Film removing speed: 0-20m/min

11、 Filming removing width: 0-150mm

12、 Grinding wheel size: 200x76.2x(10-30)mm

13、 Processing precision: +-0.3mm

14、 Working pressure: 0.5-0.8Mpa

15、 Air consumption: 120L/min

16、 Working height of glass: 520mm

17、 Glass processing size: 350x500-2200x3000mm

18、 Glass processing thickness: 5-15mm

19、 Overall dimension: 8200x2500x3400mm

20、 Weight: 2000KG

Packaging & Shipping

  Plastic package,Wooden pallet or as required.
