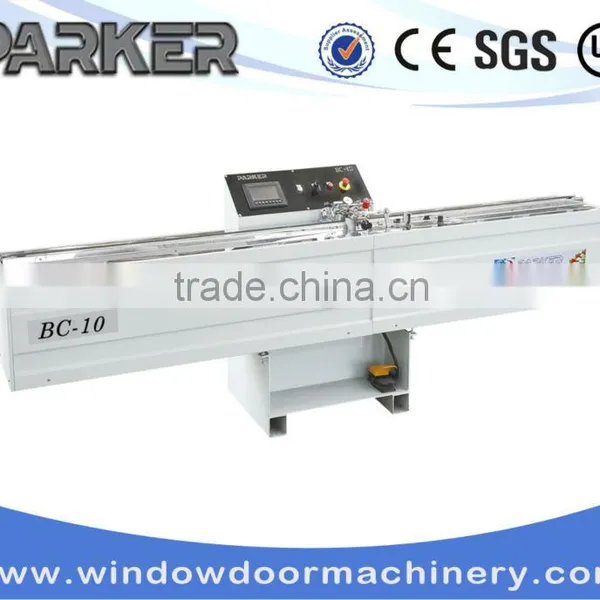

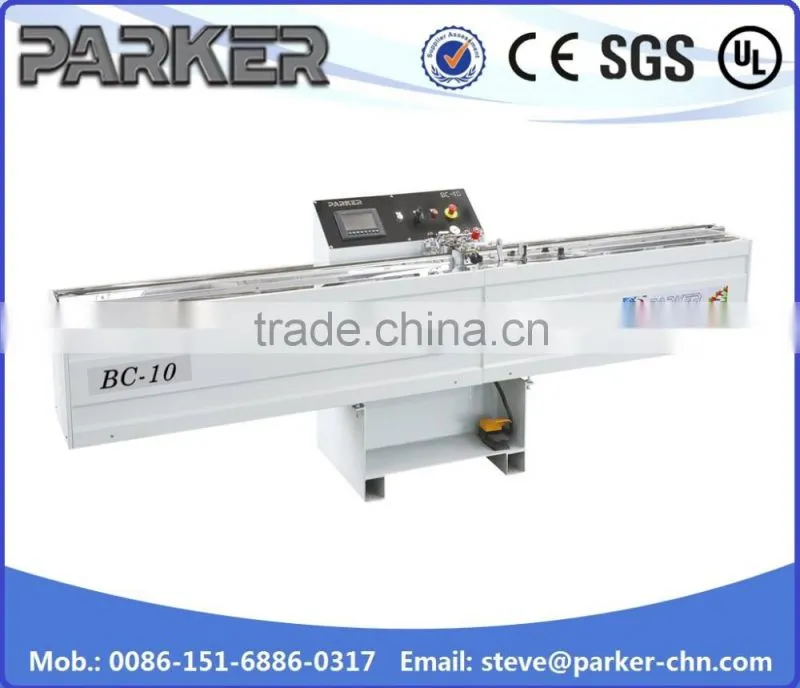

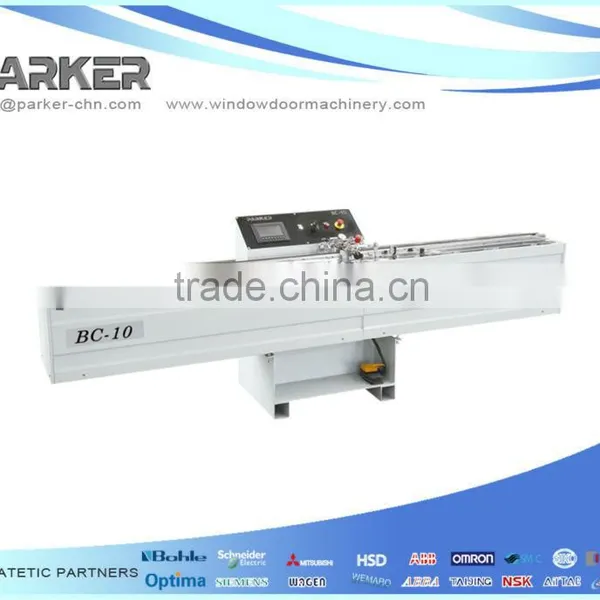

Help CenterBC-10 Butyl Coating Machine
Related Products
-
Hollow Glass Rotary Coating TableUS$ 2,216 - 2,449MOQ: 1 Unit -
Hollow Glass Two-component Coating Machine TCC300AUS$ 19,800 - 21,875MOQ: 1 Unit
-
Glass Edge Grinding Machine EF95US$ 1,750 - 2,000MOQ: 1 Unit
-
Cnc Control Glass Cutting MachineUS$ 76,000 - 84,000MOQ: 1 Unit
-
Super Intelligent Insulating Glass Produce Line Inside &outside AssemblingUS$ 67,000 - 76,000MOQ: 1 Unit
Model: BC-10
Features:
1、 Controlled by PLC.
2、 Digital Display system can show you the quantity of the glue automatically.
3、 Butyl spreading is well-proportioned and the linearity is good.
4、 Temperature and pressure can adjust automatically. Also time of pre-heating can be set, then the machine can be turned on and off automatically.
5、 Adopting the imported hydraulic and pneumatic supercharging system makes sure of the stability and continuity of the glue.
6、 The glue jar warning system will make alarm when glue material is used up.
7、 Advanced device guarantees and best spreading effect on the arc aluminium frame.
Parameter:
1、 Voltage: 380V 50HZ
2、 Power: 1.8KW
3、 Air pressure: 0.5-0.8Mpa
4、 Air consumption: 50L/min
5、 Transmit speed: 0-35m/min
6、 Temperature: 100-140°C
7、 Squeeze pressure: 8-15Mpa
8、 Adjustable range: 3-30mm
9、 Overall dimension: 3000mm x 680mm x 1080mm
10、 Weight: 850kg
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
