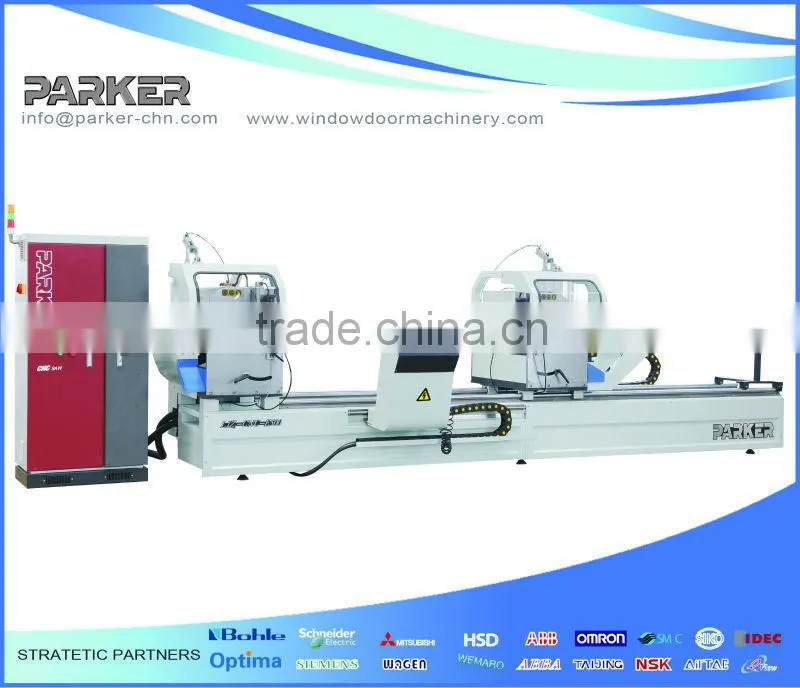

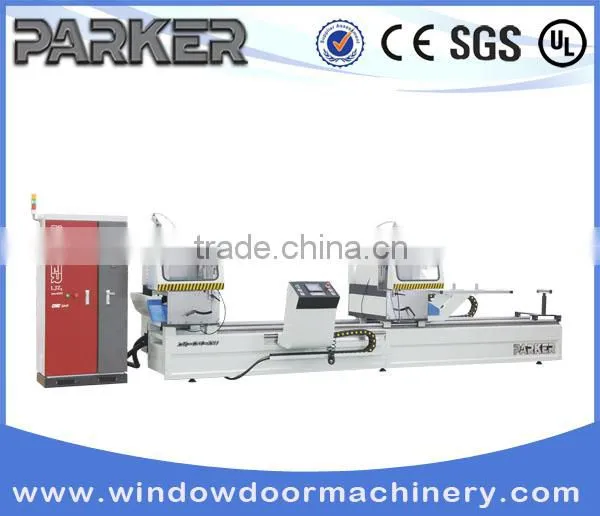

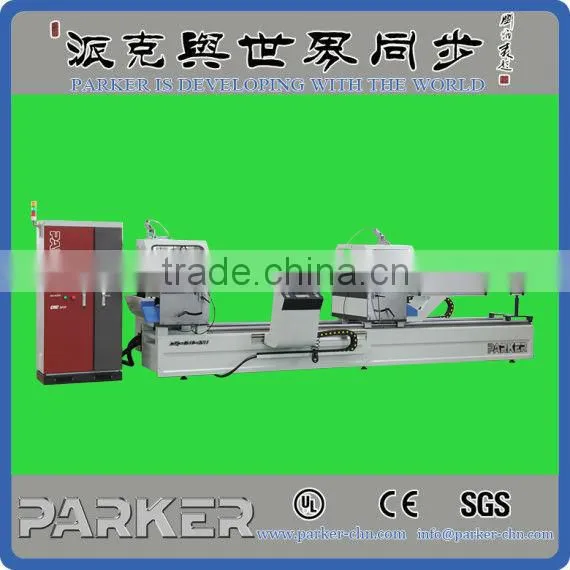

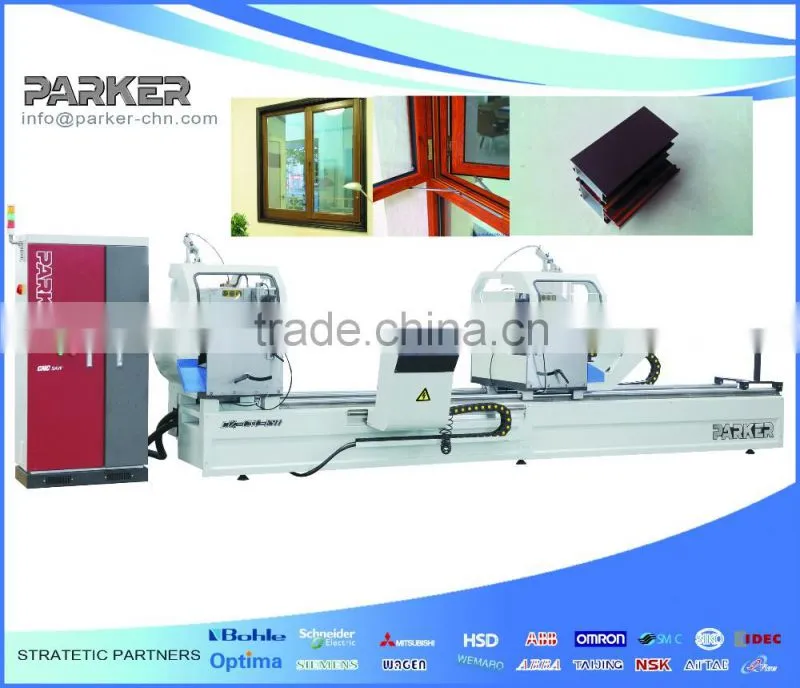

Aluminium Profile CNC Control Double Mitre Saw

Aluminium Profile CNC Control Double Mitre Saw photo-1

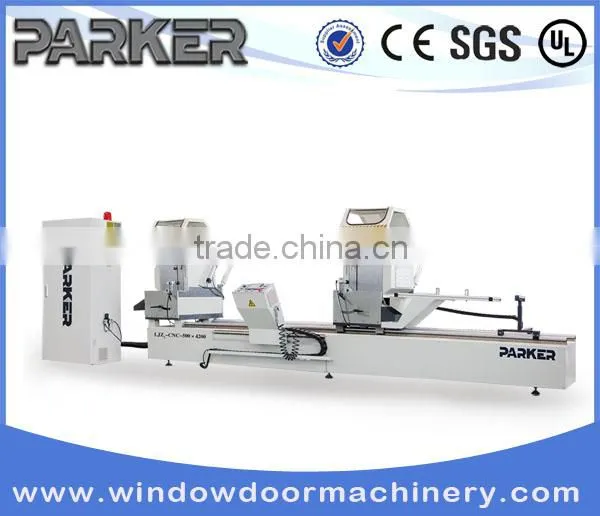

Aluminium Profile CNC Control Double Mitre Saw photo-2

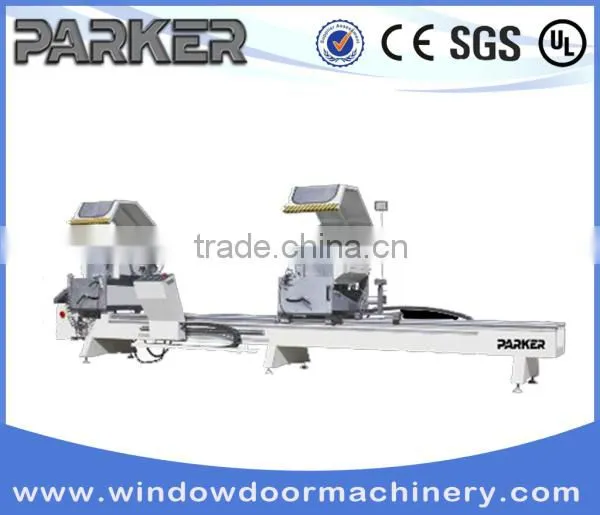

Aluminium Profile CNC Control Double Mitre Saw photo-3
Aluminium Profile CNC Control Double Mitre Saw photo-4
Aluminium Profile CNC Control Double Mitre Saw photo-5
Aluminium Profile CNC Control Double Mitre Saw photo-6
US$ 21,375 - 23,625 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
PARKER
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name PARKER

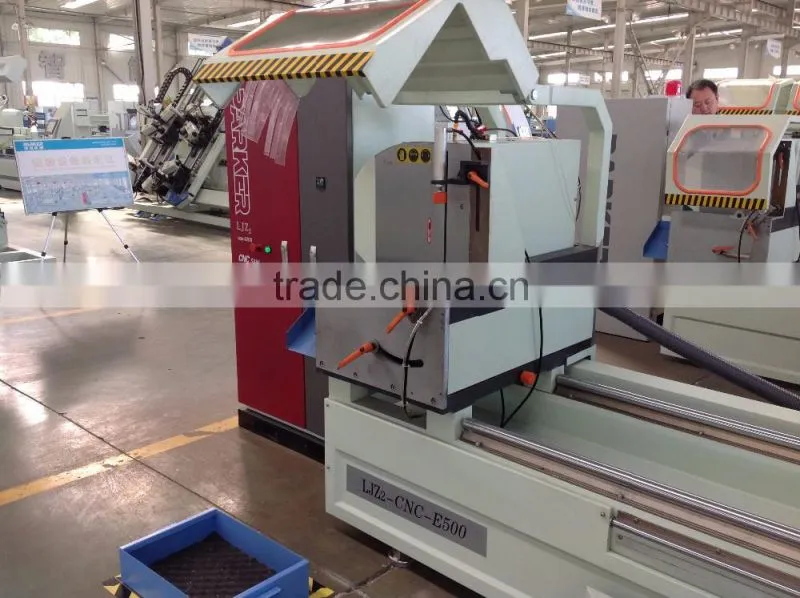

Model Number LJZ2-CNC-E500
Voltage 380V 50HZ
Rated Power 4.4KW
Dimension(L*W*H) 5500*1750*1990mm
Weight 2600kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Description

 1.It has large cutting range, hiefficiency and perfect safe guards. It is suitable for large scale production.
2.It is suitable for large-scale production with high efficiency.
3.It has perfect safe guards.
4.The CNC technology can cut different standards profiles automatically.
5.The strucure is strong and of excellent rigidity and reliability,so it is impossible to be out of shape.
6.The hi-quality imported special hard-metal saw feature the cutting precision.
7.The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth.
8.The gas-liquid damping cylinder realize smooth feeding and steady moving.
9.The imported guide rails and the linear motion pair can realize high precision and accurate location.
10.The heads return automatically.The two-way location-and-clamping features high precision and steadiness.
11.The weii-sealed safeguard of sawblade prewents the cutting bits from flowing everywhere.



Main Technique Parameter
Power supply
380V   50Hz(Three phase four wire)
Power
2*2.2KW+1.5KW
Rotary speed
2800r/min
Air pressure
0.5MPa-0.8MPa
Air consumption
200L/min
Cutting length
Max.4200mm      Min.400mm
Cutting width
Max.135mm
Cutting height
Max.300mm
Cutting angle
90°、45°、67.5°(22.5°)
Feeding speed
0-3m/min
Saw blade dimension
500mm*4.4mm*30mm   Z=120
Overall dimension
5500mm*1750mm*1990mm
Weight
2600kg
Our Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
Packing & Delivery

Packaging Details: wooden case

Delivery Detail: 10-15 Workdays after received the deposit
