1..This machine adopts Shneider System.
2.Adopt the plunger type hydraulic Station

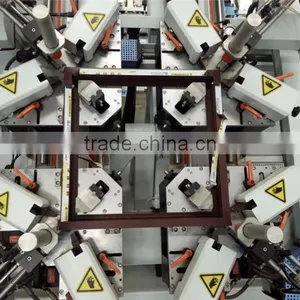

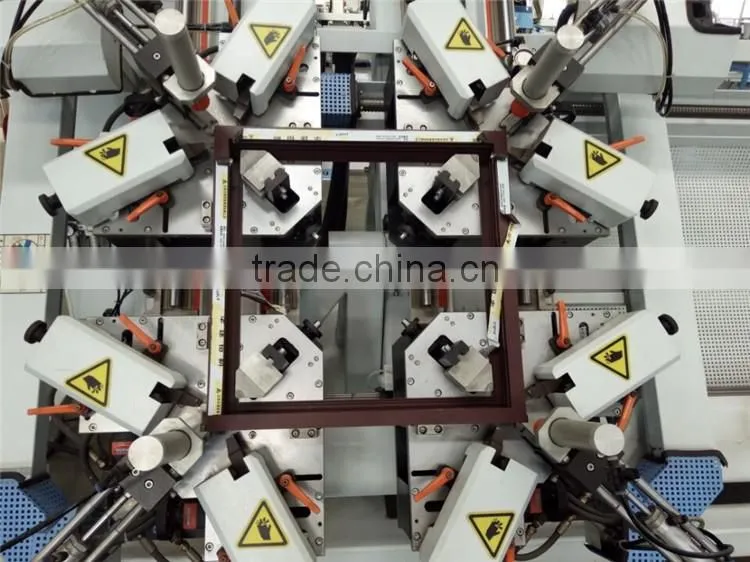

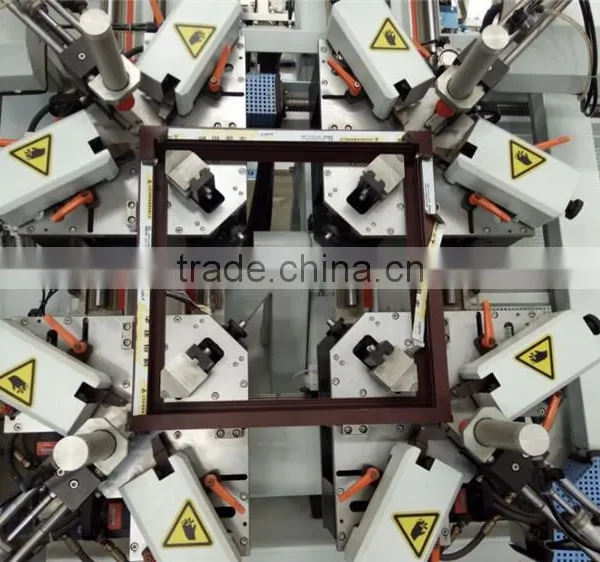

3.It can make four corners one time

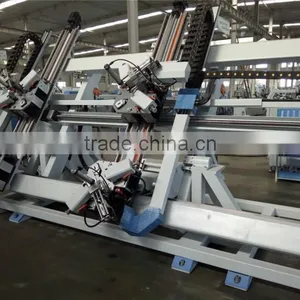

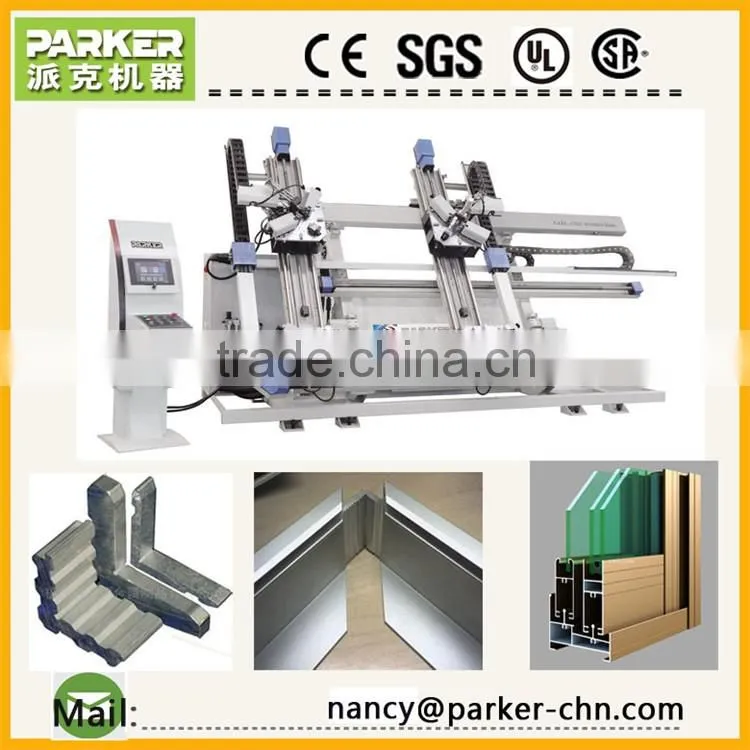

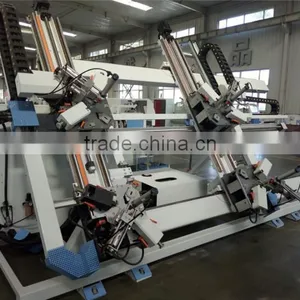

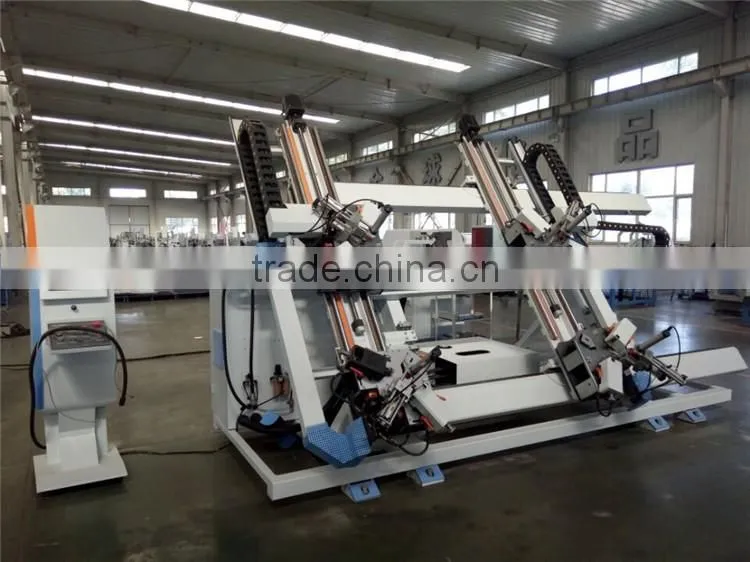

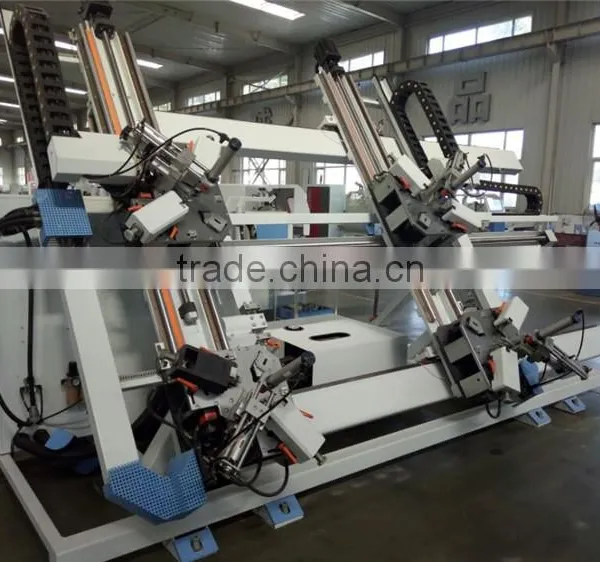

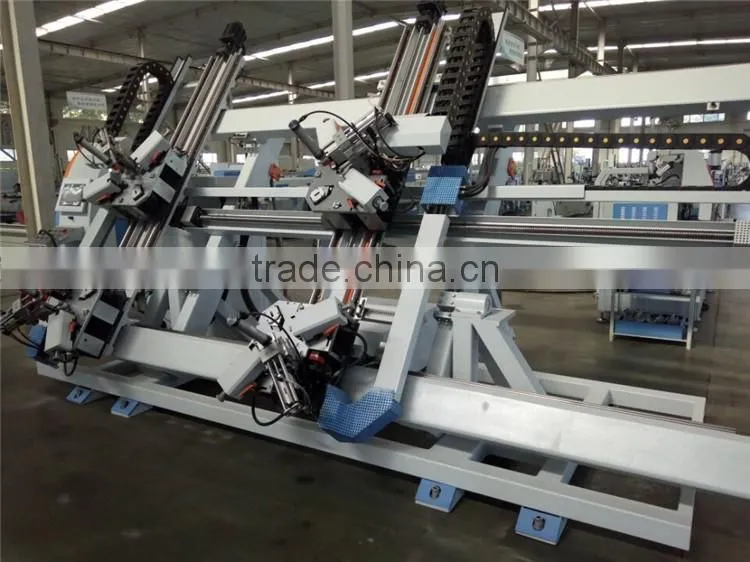

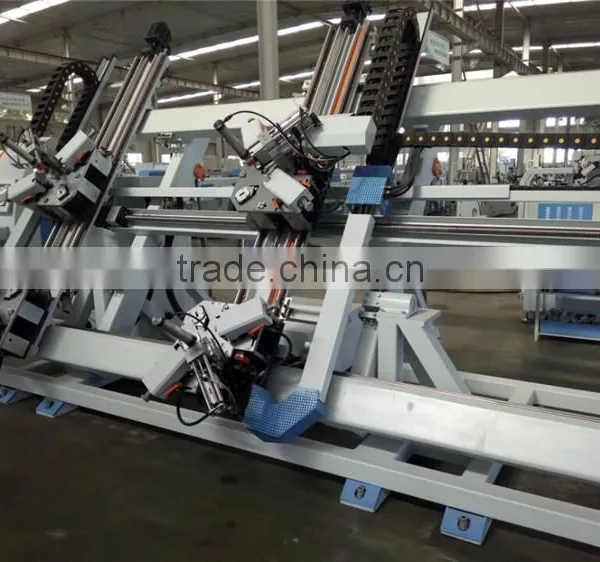

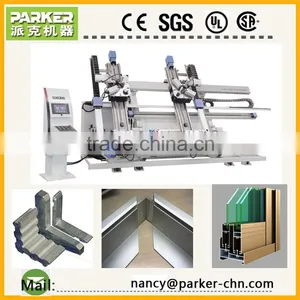

cnc four mitre corner crimping machine aluminum window corner crimping machine
Features
- Fuselage of entire machine design scientific, reasonable and steadily. And it welds with square steel pipe with the thickness of 10mm and make products steady when combining the corner.
- Adopt the plunger type large-scale hydraulic pressure station, the pressure stable, offered the pressure well and the noise is low.
- The electrically controlled box independent laying independently. It is convenient, even more is advantageous for the crimping angle quality real-time monitoring. The transmission connection uses the aerospace special-purpose receptacle, safe and stable.
- Adopt original installation import flat square guide rail, which can guarantee the precision of the heads when moves horizontally. Transmission adopts the original imported installation ball bearing master screw.
- The precision is extremely high so it can guarantee group angle quality.
- The servo controlling machines, servo motor, person-machine touching the contact surface are adopt the original imported installation of Japanese Mitsubishi system, and the increase assistance brake system. It is stable and efficiency.
- The processing smallest scope is may reach 510x510mm, the manual mediation can realized to 500x500mm, it can suitable for all kinds of windows and doors that enterprise’s processing to need.
- Used for corner punching and riveting combination of aluminum window and door four corner connecting at one time is available which greatly increased the production efficiency.
- Clamping device can adjust forward and back, it is easy to operate.
- Adopt CNC system can realize automatic and accurate locating thus can produce high accuracy windows.
- Wide profile processing range due to convenient corner combining cylinder detting.
-
Suitable for various kinds high quality and high volume windows production
Parameters:
Voltage: |
380V 50HZ |
Power: |
7.5KW |
Air pressure: |
0.5-0.8MPa |
Air consumption: |
60L/min |
Hydraulic system pressure: |
15MPa |
Oil tank capacity: |
60L |
Corner assemble: |
0-50mm |
Max. dimension of window: |
1800x3000mm |
Max. dimension of window: |
510x510mm |
Max. width of profile: |
100mm |
Seam of crimping error: |
≤0.15mm |
Overall dimension: |
5000mm×2300mm×2600mm |
Video Link for Machines:
https://youtu.be/YYm0B5aBZgQ ( Single-corner crimping machine for aluminum window door frames )
https://youtu.be/S_aNT01UDos ( Four-corner crimping machine for aluminum window door frames )
https://youtu.be/bBJo8WK5US0 ( digital dispaly double mitre saw for aluminum profile )
https://youtu.be/eO918w0-BRc ( Any angle cutting machine for aluminum profile )
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
