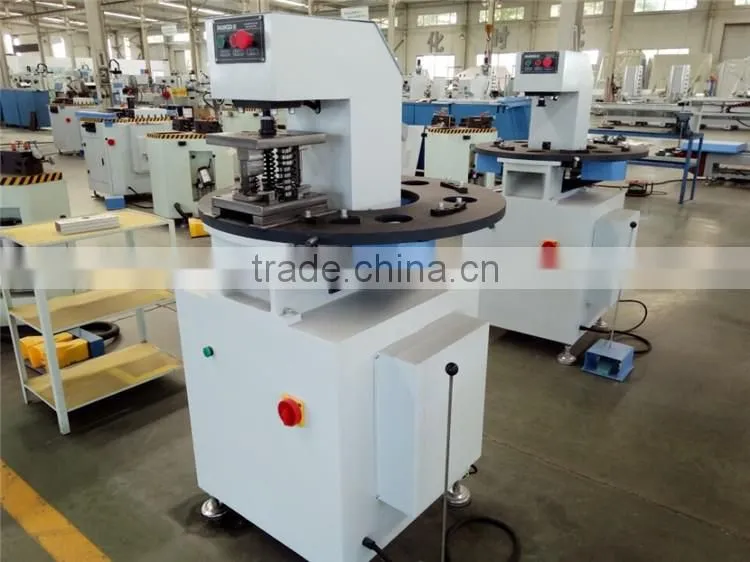

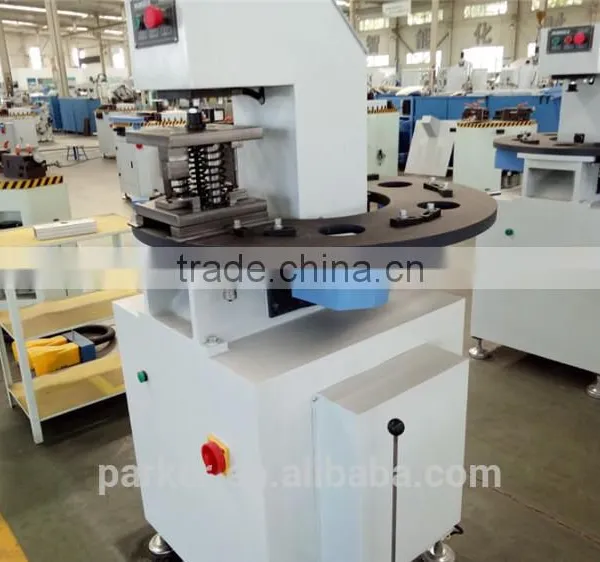

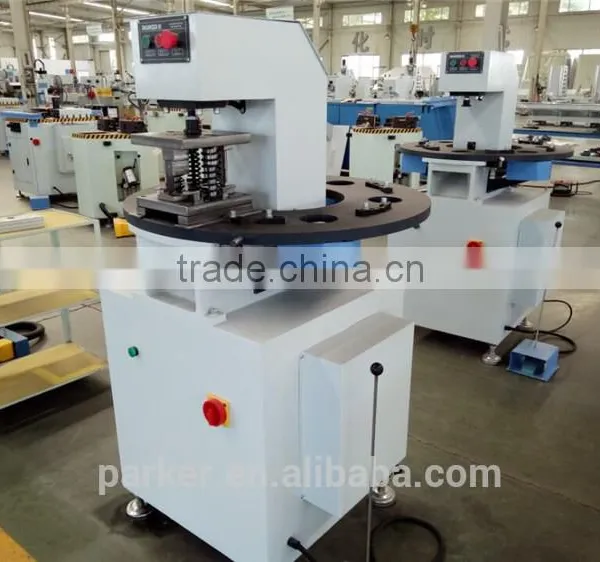

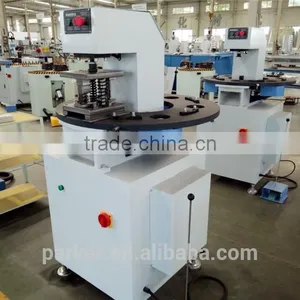

Aluminium window Variable Punching machine/aluminum window&door variable lock hole punching machinery
1. Main use and scope of application

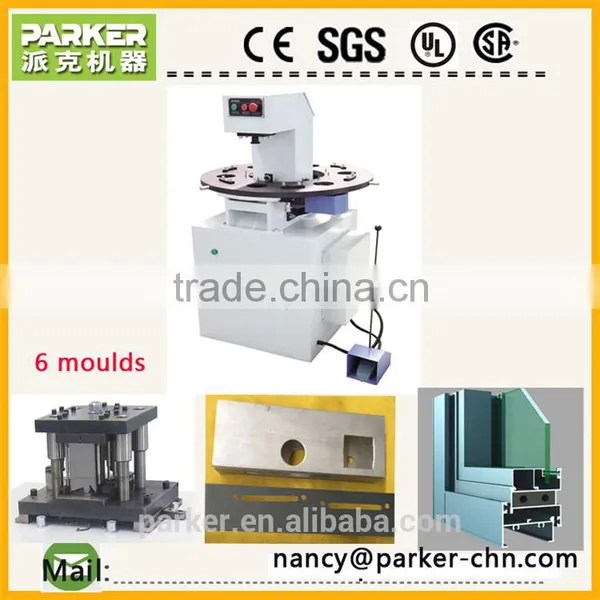

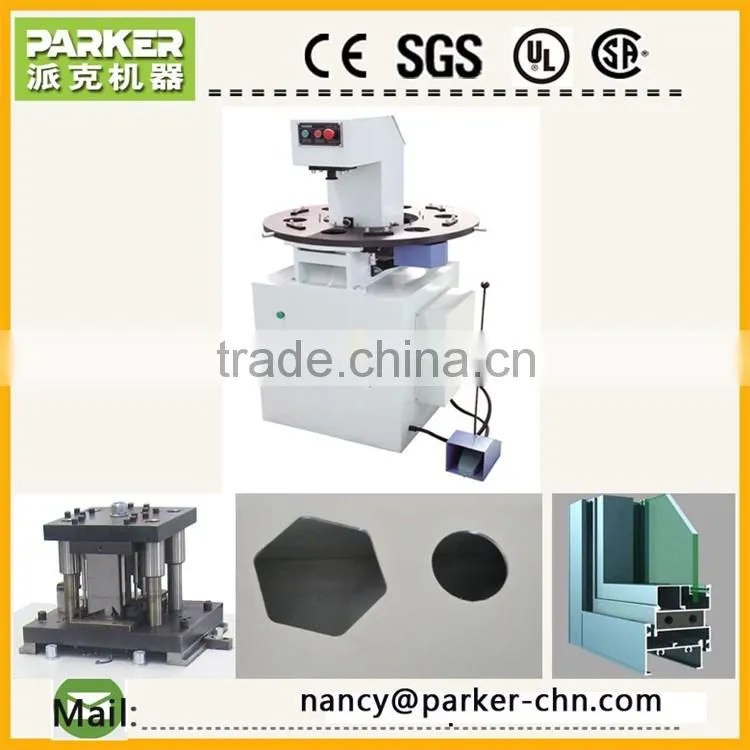

The Alu-alloy Variable Punching Machine (LLZC-50) is used for punching aluminum alloy profile. Each set of combination dies can complete many punching procedures of window frame and window of one specification, changing different working position can complete punching process of doors and windows with different series and specifications.
2. Main specification and technique parameters
Item |
Parameter |
Power supply |
380V 50Hz (Three phase, four wire) |
Motor supply |
2.2kw |
Rotary speed |
1420r/min |
Rated oil pump pressure |
16Mpa |
Capacity of oil box |
20L |
Rated pressure |
50KN |
Punching travel |
30mm |
Punching travel times |
30c/min |
height: |
185mm |
Overall dimension |
L900mm×W900mm×H1420mm |
3. Characteristics and main parts
3.1 Main structure
This machine is making up of the machine body, the six-position rotary table, pressing oil pump, foot pedal and other major components. Hydraulic system is making up of hydraulic pump, electromagnetic valve, high pressure rubber hose, hydraulic relays and other components. See the principle picture of the hydraulic pressure.
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
