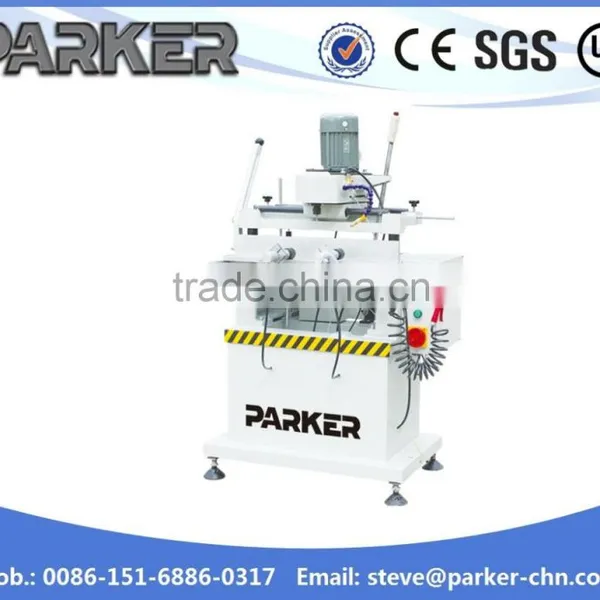

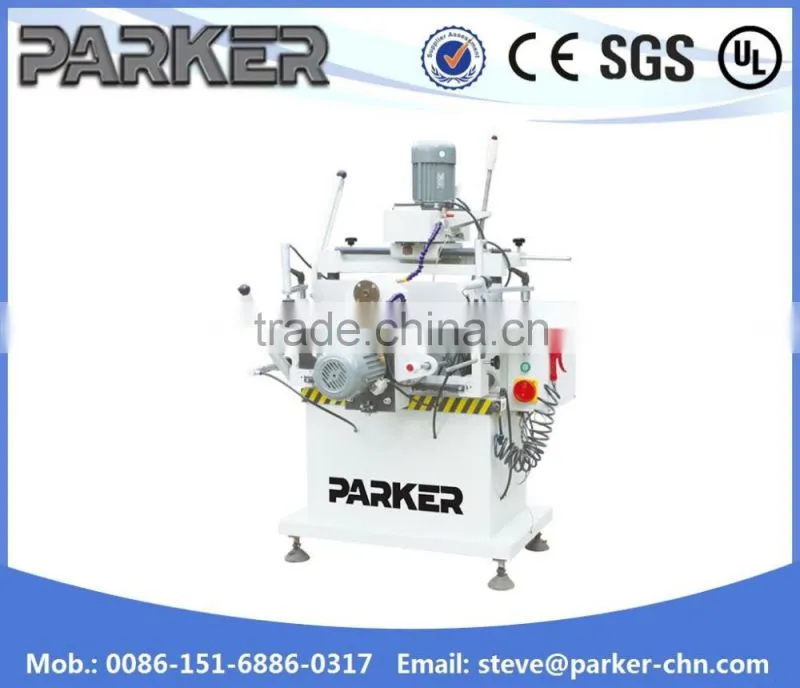

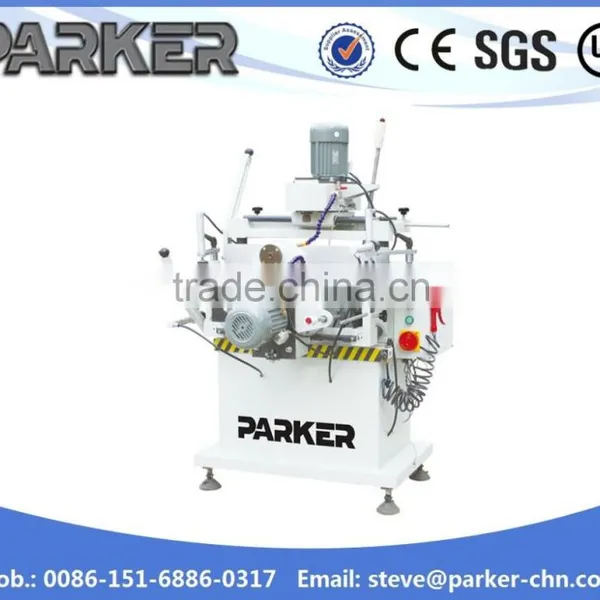

Help CenterAluminium Profile Single Axis Copy Router LFX-300*100
Related Products
-
Aluminium Profile Window Door Pheumatic Punching MachineNegotiableMOQ: 1 Set -
Aluminium Window Door Hydraulic Crimping MachineUS$ 3,641 - 4,025MOQ: 1 Set
-
CNC Window Machine of Two Head Cutting SawNegotiableMOQ: 1 Set
-
End Milling Machine for Aluminium Multi-profile AutomaticNegotiableMOQ: 1 Set
-
Aluminum Window and Door Machinery Automatic Corner Key Cutting SawNegotiableMOQ: 1 Set
1. Main use and scope of application
The AluPVC profile single axis copy router (LFX300×100) is mainly used for processing different kinds of holes,grooves,draining holes on the aluminium or PVC windows and doors. This machine adopts the high speed milling cutter which is accelerated by the belt and pneumatic clamping way, so it has advantages like high production efficiency,flexible and performance stable and so on. It is the necessary processing equipment for producing aluminium or PVC windows and doors.
2. Main specification and technical parameters
Item
Parameter
Air pressure
0.5-0.8MPA
Air consumption
10L/min
Power supply
380V(3P+N) 50Hz
Input power
0.75KW
Rotary speed of main shaft
11200r/min
Range of copying
90×290mm
Diameter of milling cutter
5mm 8mm
Diameter of copying contact
5mm 8mm
Overall dimension
870mm×700×1500mm
Weight
220kg
3.Main structures

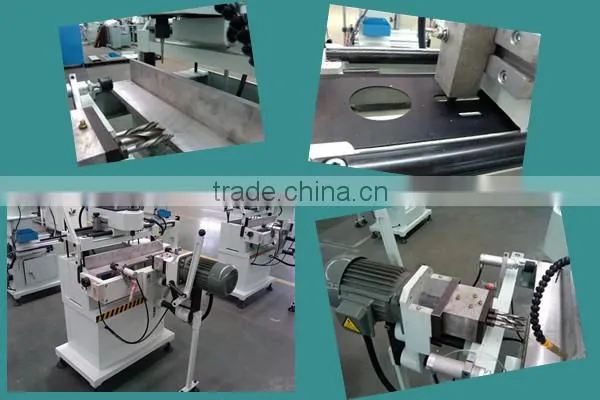

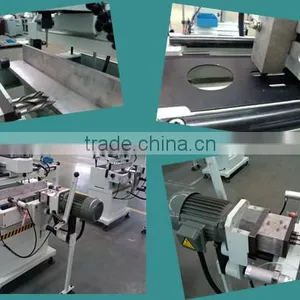

1.1 Milling head
The milling head is rotated under the driven of the motor through the circular belt, after putting onto the work piece, then can process continuously.
1.2 Two-stage copying contact pole
The diameter between two-stage copying contact pole and milling cutter is the same (the contact pole can be adjusted according to milling cutter’s diameter), so, can mill and process according to the proportion of 1:1, thus can guarantee the shape which you milled is as same as the shape of holes on the copying template.
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Packaging & Shipping
Plastic package,Wooden pallet or as required.
