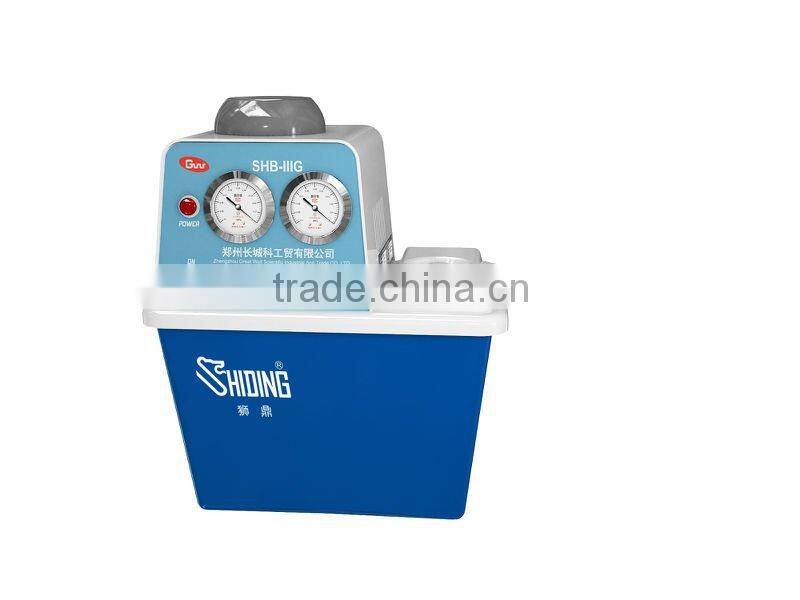

SHB-IIIG Vacuum Pump Circulating Water Jet Aspirator

FOB Price

US$ 233 - 376 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	zhengzhou great wall		Model Number	SHB-IIIG
Place of Origin	Henan, China

SHB-IIIG vacuum pump circulating water jet aspirator
vacuum 0.098 MPa
air taps 2
vacuum gauges 2
ISO9001:2008

SHB-IIIG vacuum pump circulating water jet aspirator

I. CHARACTERISTICS OF SHB-IIIG water circulating multi-purpose vacuum pump:

Multi-purpose Circulating Water Vacuum Pump adopts the latest anti corrosion technology to make the service life longer and more reliable.

♦Based on SHB-IIIA type, the function and basic material are the same as those of SHB-IIIA type

♦Spray paint Teflon(PTFE)on the ejector and gas-extraction nozzle, gas pipeline adopts fluorine rubber material.

II. Technical data:

Model	SHB-IIIG
Power(W)	180
Power supply(V/Hz)	220/50
Flow(L/min)	80
Lift(m)	10
MaximumVacuumDegree(MPa)	0.098
Single Tap Air Sucking Amount(L/min)	10
Single Tap Air Sucking Amount(A)	2
Safety functions	Check valve
Capacity of water storage tank(L)	15
Materials of Water Tank	PP
Dimensions(mm)	385L×280W×420H
Weight(kg)	11

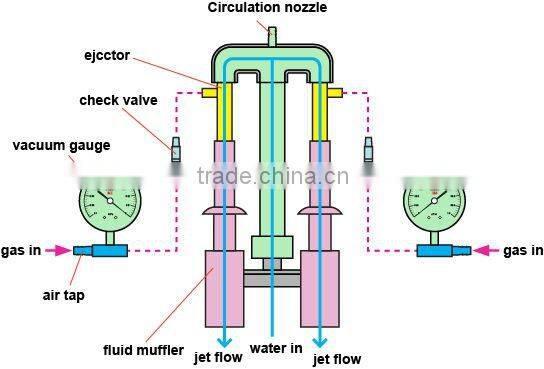

III. Working principle picture:

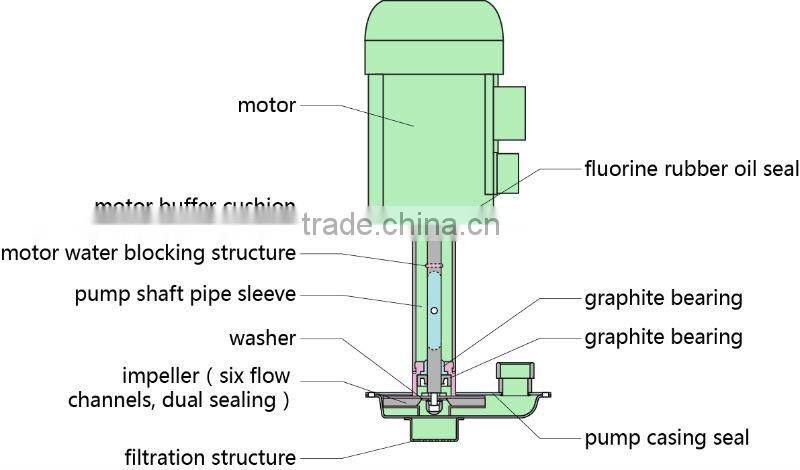

IV. Motor of SHB-IIIG water circulating multi-purpose vacuum pump:

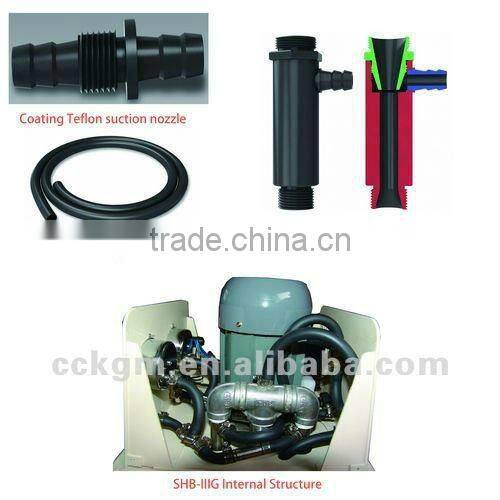

V. Parts of SHB-IIIG water circulating multi-purpose vacuum pump:

VI. ISO 9001:2008 Certificate

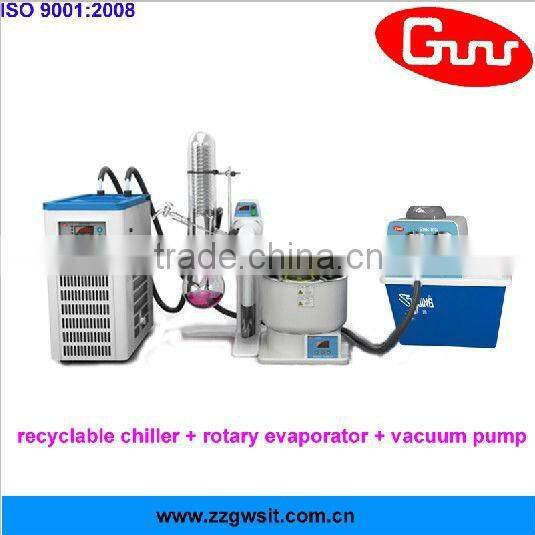

VII. Recommended complete set:

recyclable chiller DL-400 + rotary evaporator R-1001-VN + spray paint teflon circulating water jet aspirator SHB-IIIG

VIII. Fairs:

IX. Welcome to our factory:
