DPB-420 Syringe Blister Packing Machine Price
- 15 Set / Sets per Month
- Shenzhen/Shanghai/Ningbo
- T/T Credit Card PayPal
- Blister Cutting Machine
- Automatic capsule hot sealing blister packing machine tablet packaging machine supplier
- Full Automatic Pill And Blister Packing Equipment Blister Packs For Pills Factory Price
- High Quality Capsule Tablet Blister Packing Machine Automatic Blistering Of Tablets And Capsules
- Small Fully Automatic Jam Peanut Butter Blister Packing Machine For Liquid
- high quality essence 260 liquid blister packing machine blister pack packaging machinery
Product Details
Condition: | New | Application: | Chemical, Food, Medical, Food | Automatic Grade: | Automatic |
Driven Type: | Electric | Power: | 9.5kw | Place of Origin: | Jiangsu, China |
Brand Name: | NOAH | Model Number: | DPB-420 | Dimension(L*W*H): | 5000*980*1860mm |
Weight: | 1700kg | Certification: | GMP, ISO, CE/GMP | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

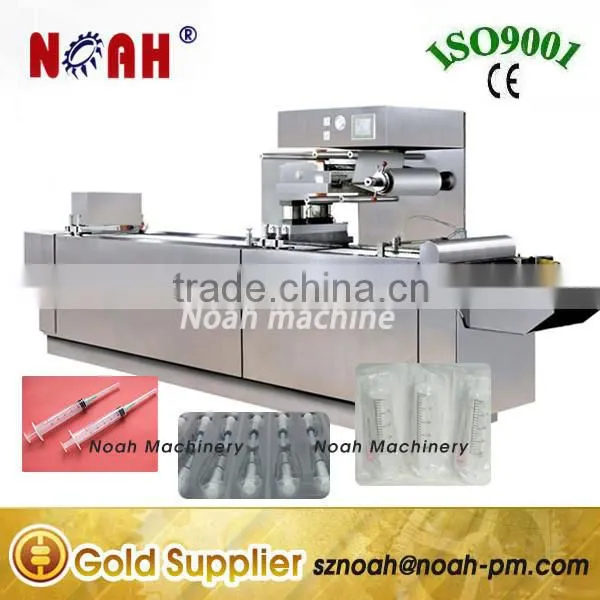

DPB-420 Syringe Blister Packing Machine Price
Applications:
The machine, DPB-420 Syringe Blister Packing Machine Price is successful to develop the latest soft plastic packing machine in china by our factory and widely used the packing of medical apparatus(syringe needle,injector),chineese and western medicine, electron component, chemical product, food as well as sensitive anti-pollution meterials.
It can synchronously finish the full processing of heating in metching for PVC strip,negative pressure and positive pressure to form simultaneously, filling, plate net-pattern sealing, batch number printed, vertical and cross cutting and transfer the final product. this machine adapts PLC programmable controller, touch screen(man-machine surface) to operate, is a high automaticity machine-motor incorporated machine.
Features:
1.setpping or servo motor with chain to be traction device, adjustable stroke.
2.Equip with sursor device to ensure the packing pattern locate well and truly.
3.The position of printing and slitting could be adjust freely.
4.Mould located by male pin, convenience of changing mould.
Note: It could be equipped with printing device with cursor.
Main Technical Data:
Package scope | Suitable for package of many sensitive anti-pollution materials and medical apparatus and instruments, Chinese and western medicine, electron, chemical product andfoodstuff. |
Capability(times/minute) | 6-16 (1) 20 syringe needles/time (2)1ml 11 injectors/time, 2.5ml 10 injectors/time,5ml 9 injectors/time, 10ml 8 injectors/time |
Packing Frequency | 6-16 times / min |
Package Materials | Paper-plastic, Aluminum-plastic, Plastic-plastic and other Compound Film suitable for heat sealing(or the hard plastic less than 0.2mm), width of upper film is 400mm and the lower is 420mm. |
Maximum inner dimension(mm) | 375*154*50mm (L*W*D) |
Out Dimensions | 5000*980*1860mm (L*W*H) |
Power(kw) | 9.5kw |
Weight(kg) | 1700kg |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship DPB-420 Syringe Blister Packing Machine Price by sea way.
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
If you need, we can dispatch our engineer to install and test machine in your country. But our clients need to pay relative fees of our engineer. Our quotations will not include these fees.
Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
