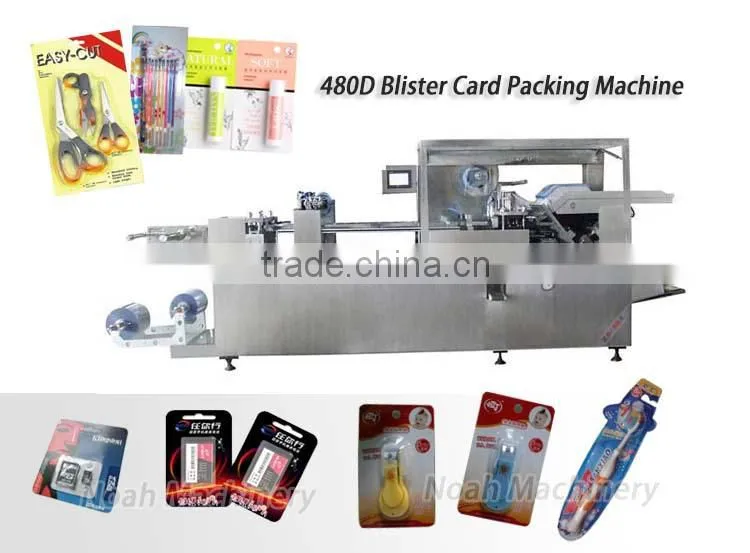

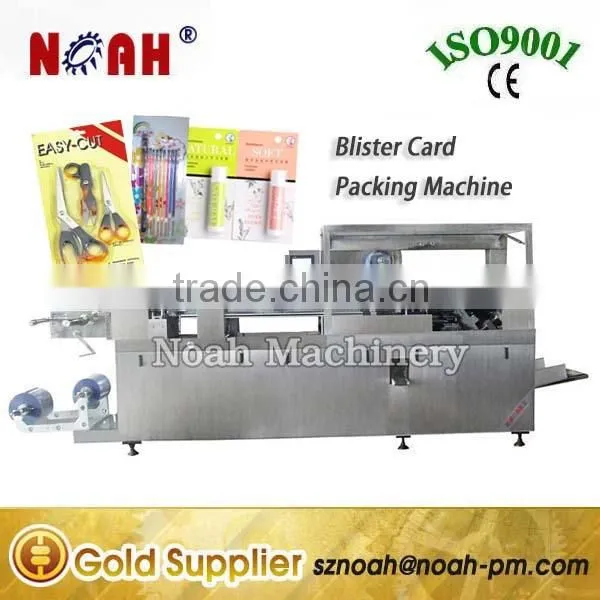

DPB480D Cosmetics/Battery/Chemical Blister Package Machine
Applications:
The DPB480D Cosmetics/Battery/Chemical Blister Package Machine adopts frequency control of motor speed. Collecting machine, electricity, photo, air to integrate and innovative design, manufacture according to National Standard strictly. Flexible stroke, modularize station structure, easy operate, high output, low noise, and equipped with beautiful out looking. DPB-480D is the ideal packing machine.
DPB-480D main device including PVC heating, blister forming, blister detection(optional), products feeding, products lack detection(optional), stroke pulling, punching, transporting, heating & sealing, etc.
The PVC formed after heating and being soften in the forming mould. The blister fed product via blister detection device then into the punching device to make the single blister with product. After then, the blister delivered to heating and sealing device. At last, the finished products sent out to next procedure. All the devices work synchronously. The blister forming and products deeding equipped with the sensor in case of the bad blister and lack of products in blisters. Waste products rejected out via waste products exit.
Scopes:
It is suitable for blister card packaging for such industries as food, medicine, medical equipment, toys, hardware, small appliances, electronic, automobile and motorcycle, daily necessities, cosmetics, rubber products, tableware, kitchenware, sports and other related industry. Such as injections, toy guns, burning torch, toy cars, scissors, alarms, batteries, pens, solid glue, tooth brushes, lipsticks, coat & hat hooks,chopsticks, cleaning balls, bottle openers and so on.
Technical Parameters:
Max Punching Speed |
25times/min |
Max package size |
480×160×40(Blister) |
500×250(Blister card) | |
Adjustable travel scope |
40-160mm |
Max forming depth |
40mm |
Total power |
15kw |
Power (Three-phase four-wire) |
380V,50HZ |
Air compressor flux |
≥0.63/min |
Packaging materials |
(0.15-0.5)×480mm |
Overall dimensions( L X W X H) |
5000×1100×1850mm |
Weight |
2500kg |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship DPB480D Small Battery Blister Package Machine by sea way.
About us:Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields. The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
