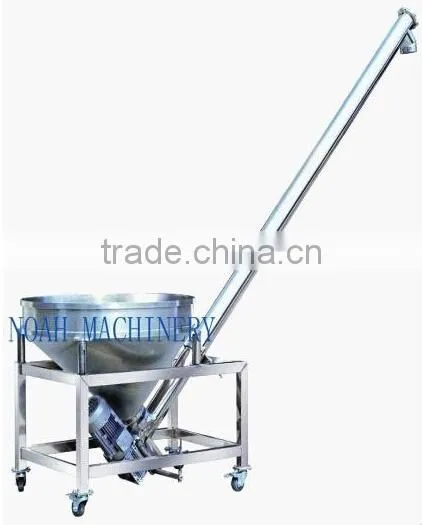

GS food conveyor machine
Brief instruction:
The GS food conveyor machine is suitable for multiple powdery product , working together with kinds of packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet . And the machine can be used independently . All parts are make of stainless steel except the electromotor , bearing and support frame .
Characteristic:
1.Using double electromotors: feeding motor & vibrating motor , separately controlled .
2.Product funnel is design to be adjustably vibratile , which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning , following functions are added in : auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel , auger can be disassemblied for washing.
Specification :
Model |
GS-A1 |
GS-A2 |
Capacity |
3m3 /h |
5m3 /h |
Cabinet Cubage |
230L |
230L |
Conveyor Height |
1.8m (other height optional) |
1.8m (other height optional) |
Motor Power |
930W |
1700W |
Power |
380V / 50-60Hz |
380V / 50-60Hz |
Weight |
130kg |
160kg |
Cabinet Dimension |
860 * 900* 1100 mm |
860 * 900* 1100 mm |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship GS food conveyor machine by sea way.
Our Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing Machine, Filling Machine, Miller and Pulverizer, Feeder, Oven, Deduster, Dust Collector, Vibration Sieves...
We also supply punch die sets and spare parts in standard or not.
|
|
|
| QVC Industrial Powder Vacuum Conveyors | GS-A1 Pharmaceutical Screw Charging Machine | TSG50 Powder upright charging machine |
