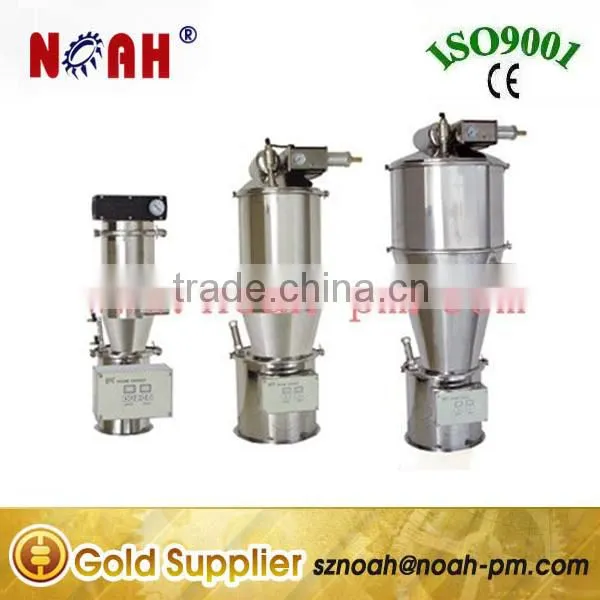

QVC-3 Milk Powder Vacuum Charging Machine
Applictions:
The QVC-3 Milk Powder Vacuum Charging Machine ( vacuum loading machine ,vacuum conveyor) is a kind of vacuum transportation machine using pneumatic vacuum pump as vacuum resources.
We can directly deliver the material from storing-material canister to obturation containers, such as mixing machine and humid method cuber machine.
Using:
When turn the button of pneumatic valve to the position of "open", the air is compressed into vacuum pump, and produces vacuum, then the materials will automatically indraft mixing machine. After indrafting the materials, spin the pneumatic valve to the position of "closed", then the air in the mixing machine disappears. Meanwhile, the compressed air stored in gas bag blows the filter in reverseCharacteristic:--- Using compressed air as primary energy sources--- According with GMP standard--- Solving the stratification of powder and granules--- The filters made of Ti will never be jammed and be abraded--- Eliminate the static electricity--- Made of nontoxic and corrosion resistant materials --- Leakage free capsule, to prevent cross contamination--- Materials are not adhering to the inner surface of the conveyor --- Intelligent control and high automation--- Modular structure, easy to clean and dismantle--- Small and light, easy to install--- Low noise and free from vibration--- Energy saving and low running cost
Main specifications:
Type:QVC-3Transportation ability (kg/h)1500
Air pressure (Mpa)0.4-0.6Air consume (L/min)540
Technical parameters:
ypes |
transportation ability (kg/h) |
air pressure |
air consume |
over size |
QVC-1 |
350 |
0.4-0.6 |
180 |
dia.140*560 |
QVC-2 |
700 |
0.4-0.6 |
360 |
dia.213*720 |
QVC-3 |
1500 |
0.4-0.6 |
720 |
dia.290*850 |
QVC-4 |
3000 |
0.4-0.6 |
1440 |
dia.420*1150 |
QVC-5 |
6000 |
0.4-0.6 |
2880 |
dia.420*1150 |
Using:
1.Capsule filling machine
2.Tablet press
3.Square bin mixer
4.Mixer5.Pipage
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship QVC-3 Milk Powder Vacuum Charging Machine by sea way.
About us:Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
