QT10-15 High quality best sell automatic hydrauform block machine
Introduction of automatic hydrauform block machine:
Our machine,with harmonic cooperation between electric and hydraulic machines functions, guarantee a reliable and high output production of concrete blocks
1).Use Janpan Mitsubish PLC control system and Siemens Motors:
A.Mitsubish PLC, with great adaptability,guarantee the stability and reliability of the machine
B.Visualization touch screen with easy operation
C.Siemens Motors, Higher degree of protection, to ensure the use of safe and reliable for customers, improve parts connection reliability
2).Hydraulic system
Hydraulic components made in Taiwan, we use high-dynamic proportional and directional
valves, which automatically adjust the oil flux and pressure as per specific working requirements, this design greatly prevent the cylinder from damage
Specification of automatic hydrauform block machine:
1 |
Dimension of host machine |
3500x2300x2930 |
6 |
Host machine power |
37kw |
2 |
Weight of host machine |
9.8T |
7 |
Vibration force |
100KN |
3 |
Molding area |
1196x880 |
8 |
Mixer model |
JS750 |
4 |
Water consumption |
10-15Ton/day |
9 |
Pallet size |
1300x900x28/ |
5 |
workshop area |
300m2 |
10 |
Voltage |
380/415/440 |
Productivity:
No |
Size(LxWxH) |
Reference pic |
Pcs/Mould |
Pcs/Hour |
Pcs/Shift |
1 |
400x200x200mm |
|
10 |
1800-2100 |
14400-16800 |
2 |
400x100x200mm |
20 |
3600-4200 |
28800-33600 |
|
3 |
400x150x200mm |
14 |
2520-2940 |
20160-23520 |
|
4 |
400x250x200mm |
8 |
1440-1680 |
11520-13440 |
|
5 |
230x110x70mm |
|
42 |
7500-8800 |
60000-70400 |
6 |
200x100x60 |
|
35 |
6300 |
50400 |
7 |
200x163x60 |
|
20 |
3600 |
28800 |

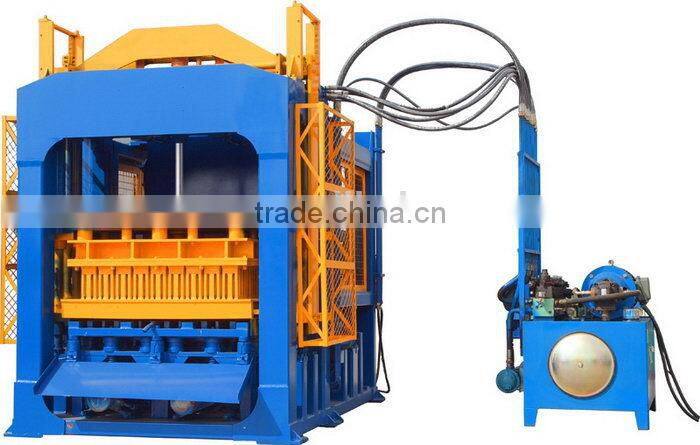

Picture of automatic hydrauform block machine:

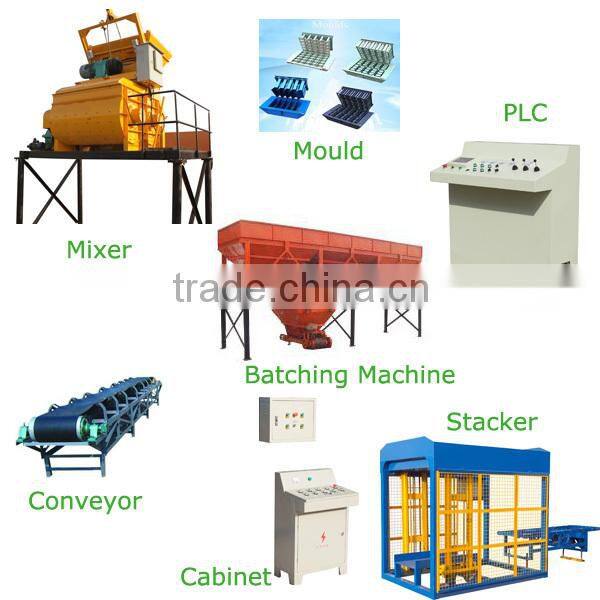

Products Related:

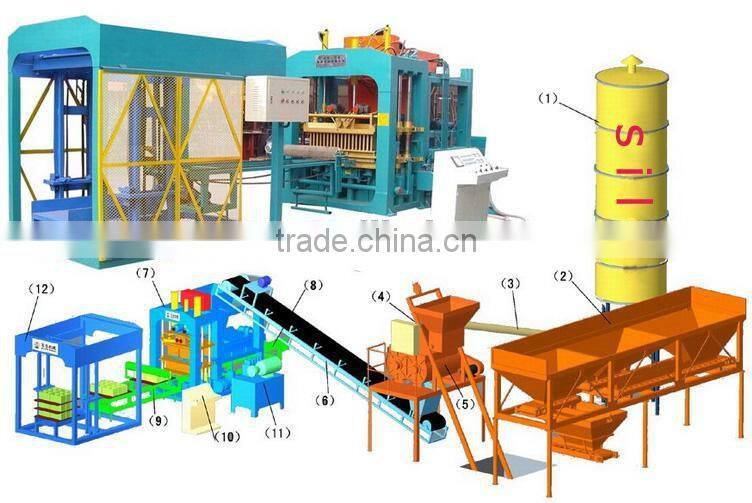

Process Flow:
Raw Material:
Scale of raw material
1. 8%-10% cement ,30%-40% sand, 50%-60% stone(less than 15mm)
2. 8% cement,60% sand,Fly ash 30%,2% gypsum.
Delivery Terms:
1.Price is based on FOB QingDao ,China
2.Payment:by irrevocable letter of credit,payable at sight for full amount of invoice value ,or T/T, 30% down payment,70% upon machinery completion.
3.Delivery:30 days upon receipt of down payment or L/C at sight.
4.Shipping Marks:We will send engineers and one translator to install the equipment;The buyer shall bear all expenses (include:visa/flight ticket/hotel/food/traffic, and extra subsidy usd 50/day/person for the first week,usd 100/day/ person fo later time)
5.We test brick making for every machine before delivery
6.Voltage and Hertz Demand: Depended on customer.
Guarantee and warranty:
1.Free technical training of installation .
2.The machine lifetime warranty.(our maintenance team can go to your country at any time)
Certificates:
Contact Information:
Person:Linda
Skype:linda.jia5
Mobile:+86 18763375732
