New style classical hydraulic hordes brick machine
Introduction of hydraulic hordes brick machine:
Technical characteristics of QT4-25 brick machine:
1. Mainframe
The automatic block making machine applies the high-strength structural steel and special welding technique for its mainframe. The firmness of the mainframe allows the whole machine to come with good rigidity and vibration resistance.
2. Guide Pillar
The guide pillar of this machine applies the ultrastrong special steel. By virtue of the chromate plated treatment, it perfectly resists torsion and abrasion. Additionally, the four guide pillars together with the ultra-long guide bearing make the pressure head and mould move accurately. This moving system adopts the special device that is good for lubrication, thus avoiding abrasion.
3. Material System
The crane of the material machine is controlled by the hydraulic system. That its hopper is connected to the crane by the rubber spring, can offer favourable damping effect while preventing the vibration compaction of the remained materials. In the system, the hopper is equipped with a door which can help realize the uniform material distribution.
4. Material Distributing System
In this system, the material storage and distribution are independent from each other. The material receiving in the material box is accurately controlled. Under the function of the powerful centrifugal force, the material is speedily and evenly distributed.
5. Vibration System
For the vibration system, our equipment employs the separate type coupling vibration technology, which can enlarge the effective vibration area by 2 times. This technology not only helps improve the product quality and output, but also it can prolong the mould service life with effect. In addition, the vibration cabinet of hanging type structure can bear intensive vibration, and no damage or breakage appears. Meanwhile, the vibrating shaft rotates eccentrically and synchronously to generate vertical exciting force, which can ensure the optimal material distribution and block molding effect.
6. PLC Control System
Technical parameters including flow, pressure, etc., can be set via the touch screen. All the electric elements are imported famous brands, such as Mitsubishi, Omron, SIEMENS, etc. Therefore, the control system is reliable in performance. The failure rate is extremely low. In the system, there are three controlling units, all of which are described as below:
a. The full-automatic controlling system for the material mixing;
b. Automatic controlling system used for molding machine, conveyor, and so on;
c. Stacker controlling system
7. Multifunction

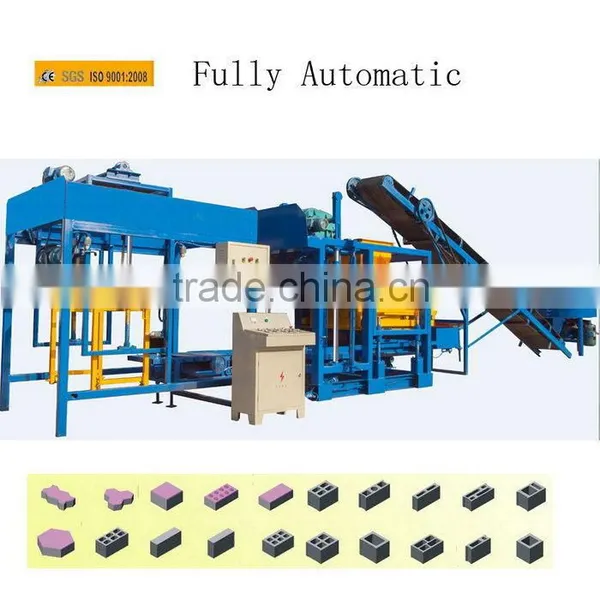

When equipped with different moulds, this automatic block making machine can make any size concrete products, for instance, perforated bricks, hollow blocks, etc. If installed with the material device, it also can produce the color bricks.
Specification of hydraulic hordes brick machine:
1 |
Dimension of host machine |
3700x2100x2300 |
|
5 |
total machine power |
29kw |
2 |
mould period |
20-24s |
|
6 |
Vibration force |
35.5KN |
3 |
Pallet size |
850x550x25mm |
|
7 |
Mixer model |
JQ500 |
4 |
workshop area |
160m2 |
|
8 |
Voltage |
380/415/440 |
Productivity:
No |
Size(LxWxH) |
Reference pic |
Pcs/Mould |
Pcs/Hour |
Pcs/Shift |
1 |
400x200x200mm |
|
4 |
576 |
4608 |
2 |
400x100x200mm |
|
7 |
1008 |
8064 |
3 |
400x150x200mm |
|
5 |
720 |
5760 |
4 |
400x250x200mm |
|
3 |
432 |
3456 |

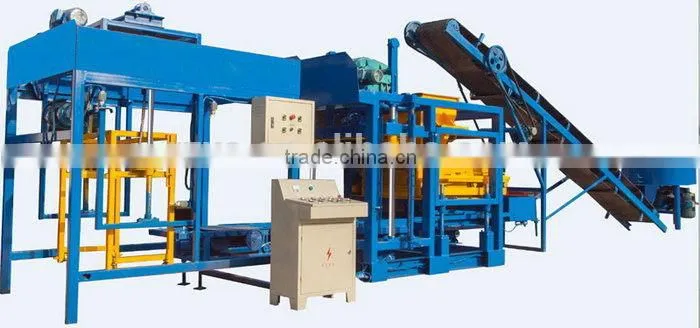

Picture of hydraulic hordes brick machine:

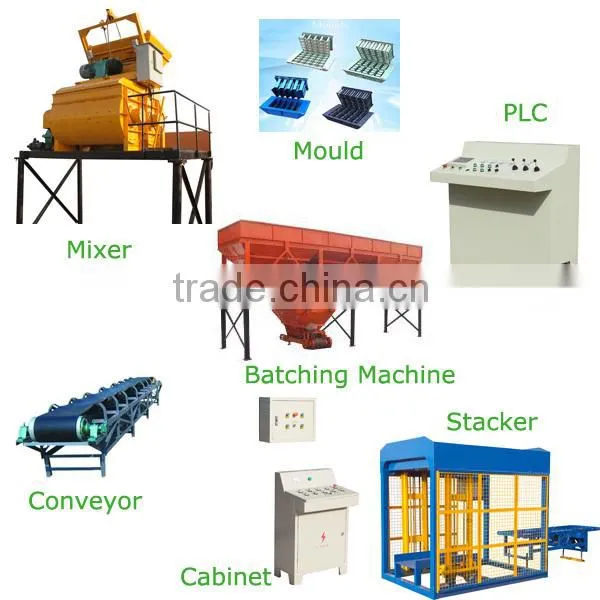

Products Related:

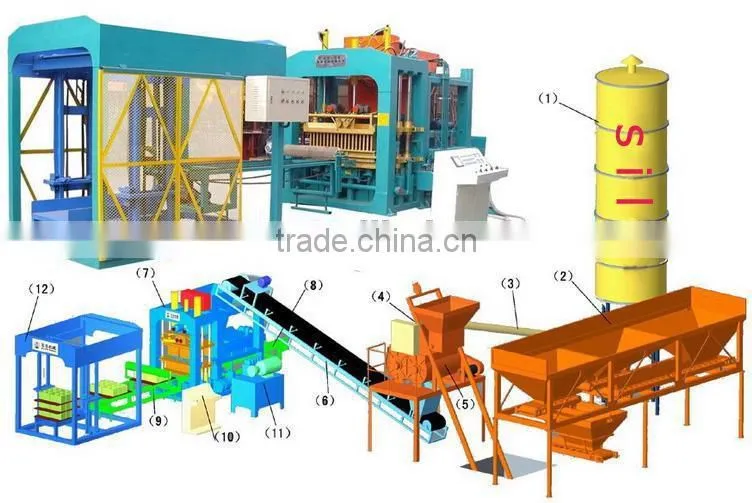

Process Flow:
Raw Material:
Scale of raw material
1. 8%-10% cement ,30%-40% sand, 50%-60% stone(less than 15mm)
2. 8% cement,60% sand,Fly ash 30%,2% gypsum.
Delivery Terms:
1.Price is based on FOB QingDao ,China
2.Payment:by irrevocable letter of credit,payable at sight for full amount of invoice value ,or T/T, 30% down payment,70% upon machinery completion.
3.Delivery:30 days upon receipt of down payment or L/C at sight.
4.Shipping Marks:We will send engineers and one translator to install the equipment;The buyer shall bear all expenses (include:visa/flight ticket/hotel/food/traffic, and extra subsidy usd 50/day/person for the first week,usd 100/day/ person fo later time)
5.We test brick making for every machine before delivery
6.Voltage and Hertz Demand: Depended on customer.
Guarantee and warranty:
1.Free technical training .
2.The machine lifetime warranty.(our maintenance team can go to your country at any time)
