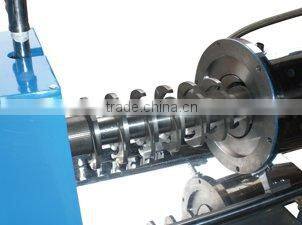

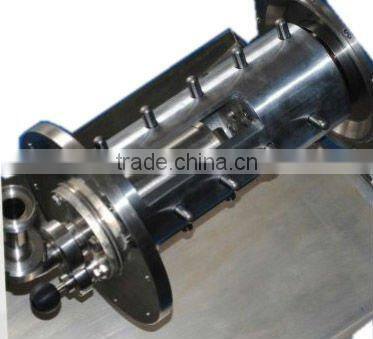

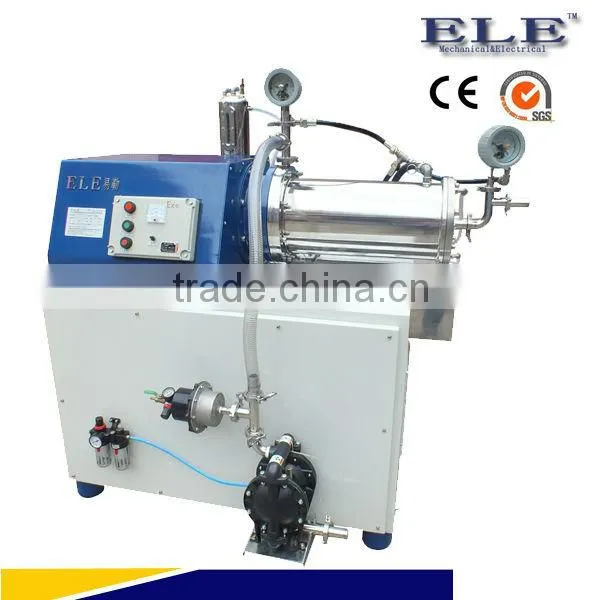

Horizontal Pearl Mill
Introduction
ELE-EDW Mill is suitable for industrialized continuous production. The machine applies to materials with various viscosity, can get ideal particle size in shorter time, more efficiency.
It is one of the highly sophisticated products among the high efficiency milling equipment.
It is especially famous in the field of process which is high viscosity , high solid content and high refining requirement. Unique designed filter can seperate 0.2mm media.
Features
1.It is suitable in large volumes,continuous production.
2.It is the ideal equipment for slurry grinding fluid,like paint,printng ink,color paste,electronic materials,ceramic etc.
3.The high abrasion resistance inner cavity not only prolong the service time,but also not pollute the materials..
4.Adoptiing the fench booms dynamic seperator,enlarge the filter area and ensure that the high-viscosity material flow smoothly.
5.The completely machine with high accuracy,the high power equipment with low noise and unconspicuously vibration.
6. there are two type of the bead mill, pin type and disc type.
Specifications
Model |
Volume of Grinding Chamber (L) |
Main Power(kw) |
Rotation Speed (rpm) |
Capacity (L/h) |
Dimension(mm) |
Weight (kgs) |
EDW-5 |
5 |
7.5 |
1440 |
200 |
1300*1050*450 |
650 |
EDW-15 |
15 |
18.5 |
1440 |
500 |
1600*1450*650 |
1200 |
EDW-20 |
20 |
22 |
1260 |
800 |
1600*1450*650 |
1350 |
EDW-30 |
30 |
37 |
1260 |
1200 |
1650*1550*750 |
1700 |
EDW-40 |
40 |
45 |
980 |
1500 |
1750*1650*850 |
2100 |
EDW-50 |
50 |
55 |
980 |
2000 |
1900*1850*850 |
2300 |
EDW-100 |
100 |
110 |
860 |
3000 |
2300*2150*950 |
3800 |
We also have other new sand mill as below:
