Special Chrome Steel for Horizontal Bead Mill Machine

Specifications

1.Super fineness for the particle size
2.Pin type with kinds of working capacity
3.Special discharge way
4.Burgmann sealing

Horizontal Bead Mill Machine, Pin Wet-grinding Mill, Milling Machine



Instruction

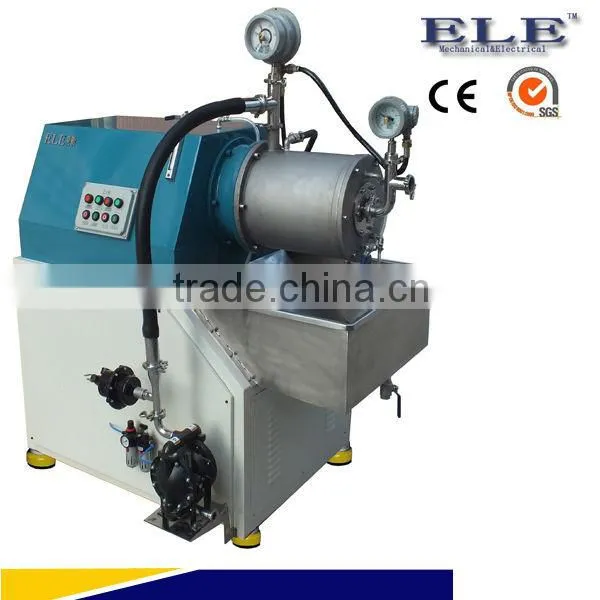

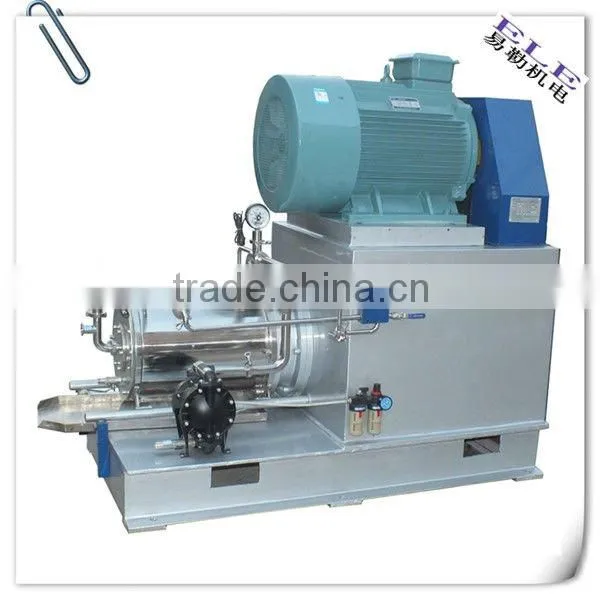

ELE-EDW Bead Mill is suitable for industrialized continuous production. The machine applies to materials with various viscosity, can get ideal particle size in short time, more efficiency.

It is one of the highly sophisticated products among the high efficiency milling equipment.

It is especially famous in the field of process which is high viscosity , high solid content and high refining requirement. Unique designed filter can seperate 0.2mm media.





Features

• Horizontal Sand Mill is the kind of wet milling machine which is closed continuous production.
• Transportation pump: Diaphragm Pump

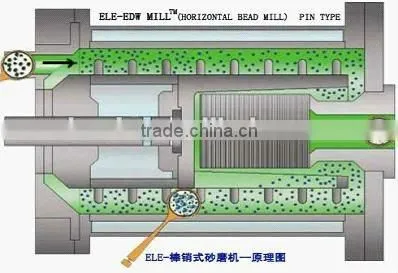

• Cylindric chamber with pin or disc spread on the shaft.
• German Burgamann mechanical seal, it can bear more than 10kgs pressure
• Unique discharging structure, solve the traditional problems, such as discharge slowly,  stuck the grinding media, leak media...so on
• Grinding chamber adopts special material, the hardness can reach HRC62, ensure that the hardness of the inner tank will be equal before be thoroughly grinded.
• Two kind of cooking system, efficiently down the temperature
• with features of solvent-proof, zero pollution and high wearing resistance.



Technical Parameters

Model	Volume of Tank (ml)	Power(kw)	Rotation Speed    (rpm)	Capacity (L/h)	Dimension(mm)	Weight (kgs)
EDW-5	5	7.5	1440	200	1300*1050*450	650
EDW-15	15	18.5	1440	500	1600*1450*650	1200
EDW-20	20	22	1260	800	1600*1450*650	1350
EDW-30	30	37	1260	1200	1650*1550*750	1700
EDW-40	40	45	980	1500	1750*1650*850	2100
EDW-50	50	55	980	2000	1900*1850*850	2300
EDW-100	100	110	860	3000	2300*2150*950	3800



Remarks

1. If solvent-based product, we design motor and on-spot control box expolsion-proof.

2. The power supply can be changed for different country.
