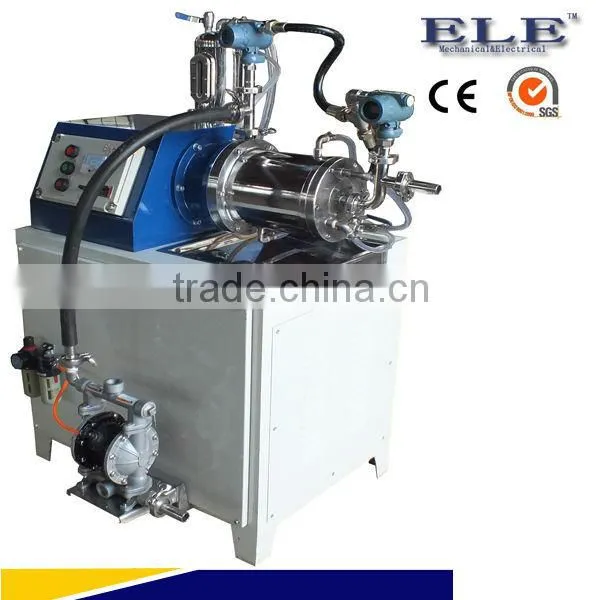

EDW Horizontal Pin Mill
Introduction
ELE-EDW Pin Mill is suitable for industrialized continuous production. The machine applies to materials with various viscosity, can get ideal particle size in shorter time, more efficiency.
It is one of the highly sophisticated products among the high efficiency milling equipment.
It is especially famous in the field of process which is high viscosity , high solid content and high refining requirement. Unique designed filter can seperate 0.2mm media.
Configuration
Power supply: 380v,50hz,3phase
Mechanical Seal: German Burgamann Mechanicial Seal
NSK Bearing
Grinding Media: Zirconia
Countent of media: 85% of tank
Transportation: Diaphragm Pump
Features
1. Germann Burgmann mechanical seal, it can bear more than 10kgs pressure, but usually the pressure of the grinding material is less than 4kgs,successfully avoids the leaking problem
2.ELE machine use large area seperator for discharging, which solve the traditional problems, such as discharge slowly, seizing-up the grinding mediums and so on.
3.The grinding chamber is made of hard-wearing steel, the hardness can reach HRC62. It will not pollute product.
4. Spiral cooling, forced cooling water flow efficiently cool the grinding chamber.
5. advanced structure, easy to maintenance the machine. good performance, easy to clean.
6. there are two type of the bead mill, pin type and disc type.
Pin Type Disc Type
Specifications
Model |
Volume of Grinding Chamber (L) |
Main Power(kw) |
Rotation Speed (rpm) |
Capacity (L/h) |
Dimension(mm) |
Weight (kgs) |
EDW-5 |
5 |
7.5 |
1440 |
200 |
1300*1050*450 |
650 |
EDW-15 |
15 |
18.5 |
1440 |
500 |
1600*1450*650 |
1200 |
EDW-20 |
20 |
22 |
1260 |
800 |
1600*1450*650 |
1350 |
EDW-30 |
30 |
37 |
1260 |
1200 |
1650*1550*750 |
1700 |
EDW-40 |
40 |
45 |
980 |
1500 |
1750*1650*850 |
2100 |
EDW-50 |
50 |
55 |
980 |
2000 |
1900*1850*850 |
2300 |
EDW-100 |
100 |
110 |
860 |
3000 |
2300*2150*950 |
3800 |
* capacity mainly depends on product to be grinded, like raw mateiral quality, viscosity, required fineness, feeding flow rate, despersion formulation.
Remarks
1. If oil product, we design motor and on-spot control box expolsion-proof.
2. The power supply can be changed for different country.
