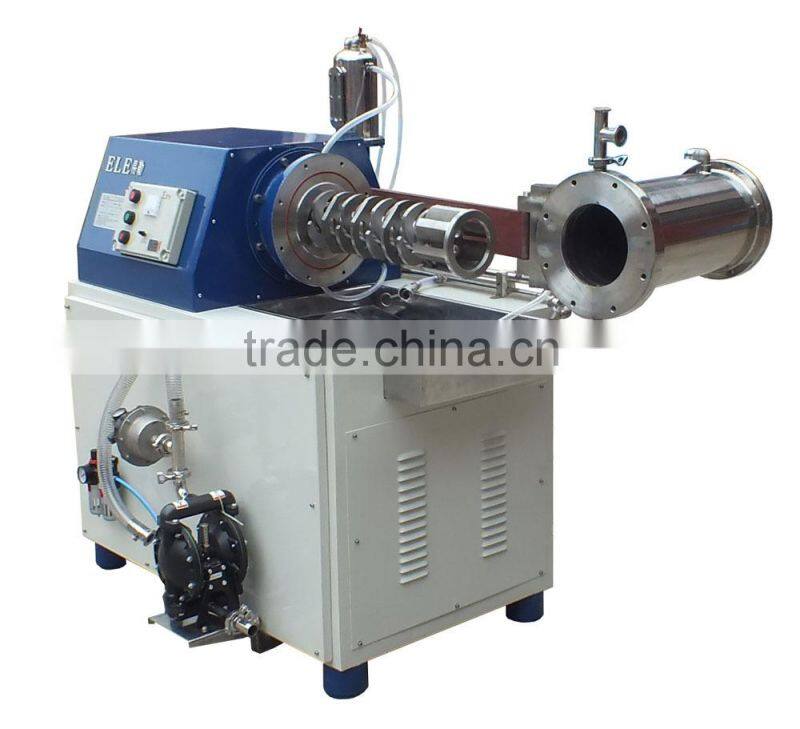

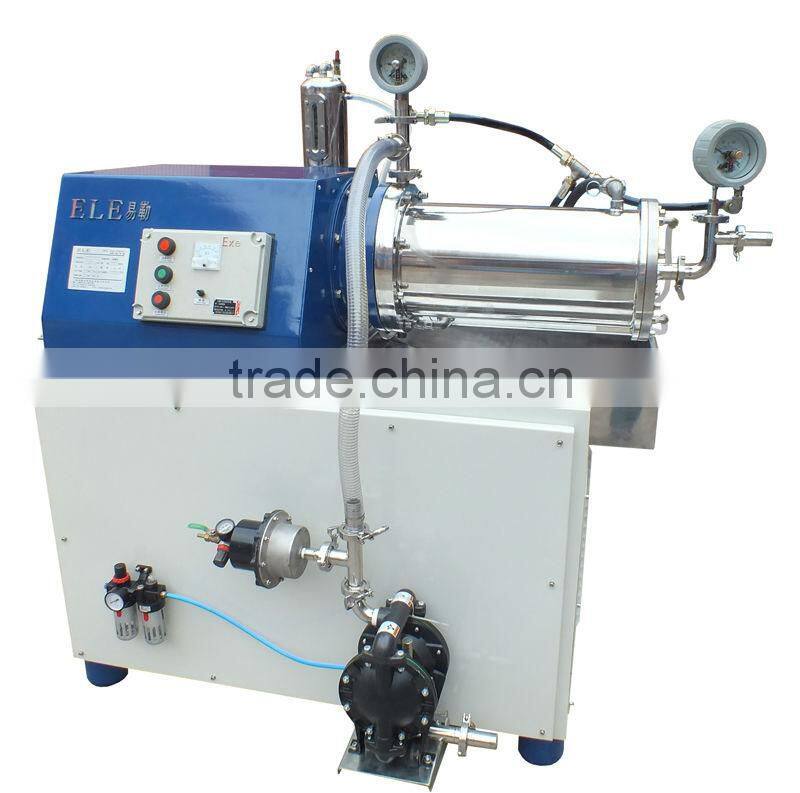

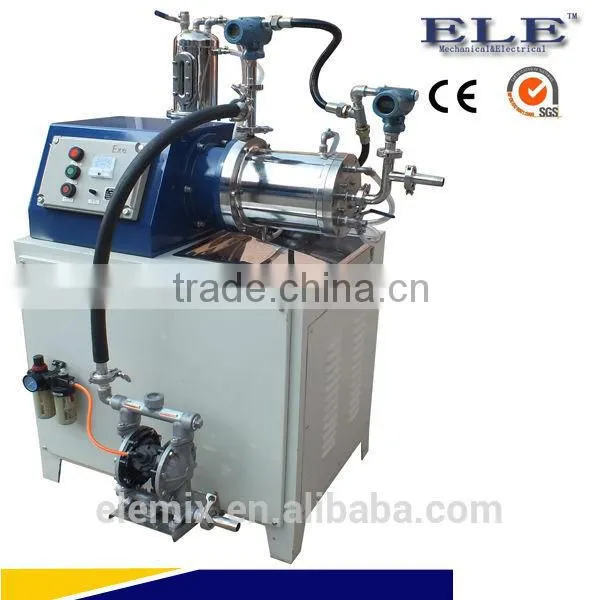

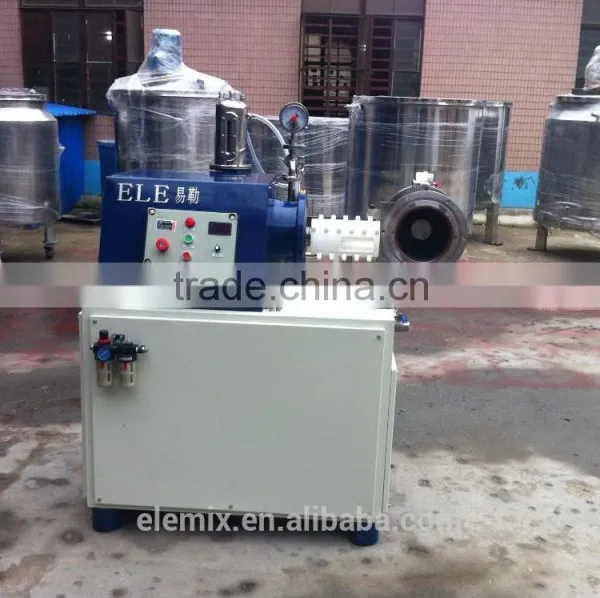

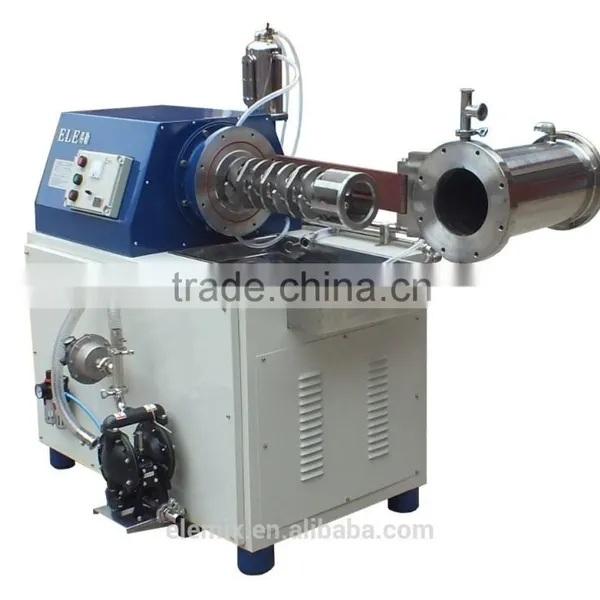

solvent ink Horizontal bead Mill Horizontal Bead Mill
ELE-EDW Mill is suitable for industrialized continuous production. The machine applies to materials with various viscosity, can get ideal particle size in short time, more efficiency.
It is one of the highly sophisticated products among the high efficiency milling equipment.
It is especially famous in the field of process which is high viscosity , high solid content and high refining requirement. Unique designed filter can seperate 0.2mm media.
Features:
- Horizontal Sand Mill is the kind of wet milling machine which is closed continuous production.
- Transportation pump: Diaphragm Pump

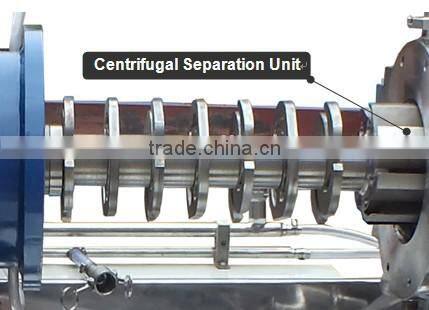

- Cylindric chamber with pin or disc spread on the shaft.
- German Burgamann mechanical seal, it can bear more than 10kgs pressure
- Unique discharging structure, solve the traditional problems, such as discharge slowly, stuck the grinding media, leak media...so on
- Grinding chamber adopts special material, the hardness can reach HRC62, ensure that the hardness of the inner tank will be equal before be thoroughly grinded.
- Two kind of cooking system, efficiently down the temperature
- with features of solvent-proof, zero pollution and high wearing resistance.
Specifications
Model |
Volume of Tank (ml) |
Main Power(kw) |
Rotation Speed (rpm) |
Capacity (L/h) |
Dimension(mm) |
Weight (kgs) |
EDW-5 |
5 |
7.5 |
1440 |
200 |
1300*1050*450 |
650 |
EDW-15 |
15 |
18.5 |
1440 |
500 |
1600*1450*650 |
1200 |
EDW-20 |
20 |
22 |
1260 |
800 |
1600*1450*650 |
1350 |
EDW-30 |
30 |
37 |
1260 |
1200 |
1650*1550*750 |
1700 |
EDW-40 |
40 |
45 |
980 |
1500 |
1750*1650*850 |
2100 |
EDW-50 |
50 |
55 |
980 |
2000 |
1900*1850*850 |
2300 |
EDW-100 |
100 |
110 |
860 |
3000 |
2300*2150*950 |
3800 |
Remarks
1. If solvent-based product, we design motor and on-spot control box expolsion-proof.
2. The power supply can be changed for different country.
We also have other grinding machine as below:
