Nano Ceramic Dyno Mill

Nano Ceramic Dyno Mill photo-1
Nano Ceramic Dyno Mill photo-2
Nano Ceramic Dyno Mill photo-3
Nano Ceramic Dyno Mill photo-4
Nano Ceramic Dyno Mill photo-5
Nano Ceramic Dyno Mill photo-6
US$ 17,500 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sand Mill
Product Type:
Paint
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Sand Mill
Product Type Paint
Place of Origin Shanghai, China
Brand Name ELE
Model Number EDW
Voltage 380v,220v,415V,440V,460V
Power(W) 7.5~75KW
Weight 650~2300KG
Certification CE
Warranty 1~3 years
After-sales Service Provided Engineers available to service machinery overseas



EDW Horizontal Bead Mill---Pin Type

Nano ceramic dyno mill







Model EDW Horizontal Bead Mill
Power Supply 380v, 50Hz,three phase ( can be customized)
Rotation Speed 1440rpm

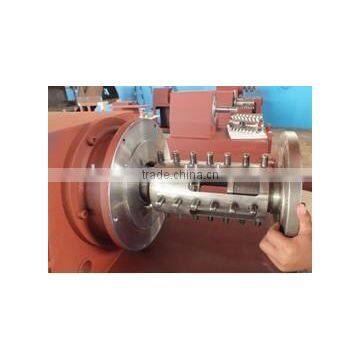

Type pin type
Pump Diaphragm Pump
Seal German Burgmann
Media 85% of tank
Features 1.Germann Burgmann machenical seal, it can bear more than 10kgs pressure,but usually the pressure of the grinding material is less 4kgs,successfully avoids the leaking problem
2. ELE machine use dynamic  fence booms discharge,solve the traditional problems, such as discharge slowly,stuck the grinding mediums and so on.
3.The grinding inner tank of ELE machine adopted some special material which is completely penetrated,the hardness can reach HRC62,ensure that the hardness of the inner tank will be equal before be thoroughly grinded.

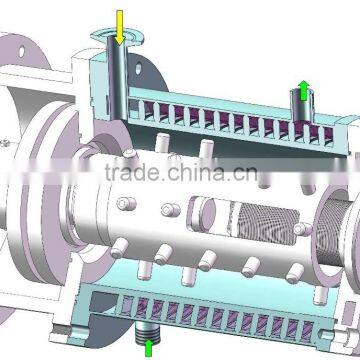

4. spiral cooling, take most of the heat produced by the high viscosity materia
5. pin type is designed for material with high viscosity and tenacity,need  superfine





Detail Parameters





Model

EDW-10 EDW-15 EDW-20 EDW-30 EDW-40 EDW-50
Tank Volume/L 10 15 20 30 40 50
Power / kw 11 15 22 30 45 55
Production Capacity 300 300 800 1000 1500 1800
Weight 950 1250 1400 1580 1720 2300
