Home > Products > Horizontal Bead Mill / Sand Mill > Horizontal Bead Mill
Horizontal Bead Mill
Negotiable
/ Set
1 Set(Min.Order)
- 60 Set / Sets per Month
- Shanghai
You May Like
Product Details
Mixer Type: | Other, grinding mill | Application: | Liquid with Suspended Solids | Additional Capabilities: | Milling |
Place of Origin: | Shanghai, China | Brand Name: | ELE | Model Number: | EDW |
Product Description
Specifications
1.German Burgmann mechanical seal2.special material of the inner tank
3.the hardness is HRC62
4.horizontal bead mill

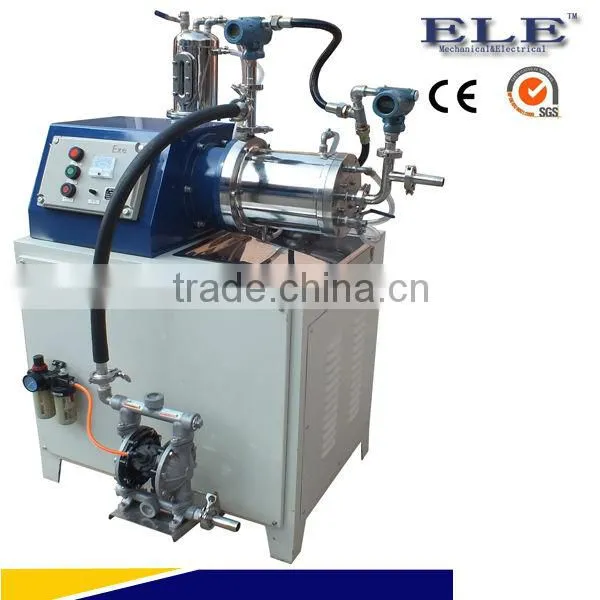

EDW Horizontal Bead Mill
Model | EDW Horizontal Bead Mill | ||||||
Power Supply | 380v, 50Hz,three phase ( can be customized) | ||||||
Rotation Speed | 1440rpm | ||||||
Type | pin type & disc type | ||||||
Pump | Diaphragm Pump | ||||||
Seal | German Burgmann | ||||||
Media | 85% of tank | ||||||
Features | 1.Germann Burgmann machenical seal, it can bear more than 10kgs pressure,but usually the pressure of the grinding material is less 4kgs,successfully avoids the leaking problem | ||||||
2. ELE machine use dynamic fence booms discharge,solve the traditional problems, such as discharge slowly,stuck the grinding mediums and so on. | |||||||
3.The grinding inner tank of ELE machine adopted some special material which is completely penetrated,the hardness can reach HRC62,ensure that the hardness of the inner tank will be equal before be thoroughly grinded. | |||||||
4. spiral cooling, take most of the heat produced by the high viscosity materia | |||||||
5. pin type is designed for material with high viscosity and tenacity,need superfine |
Detail Parameters
Model | EDW-10 | EDW-15 | EDW-20 | EDW-30 | EDW-40 | EDW-50 |
Tank Volume/L | 10 | 15 | 20 | 30 | 40 | 50 |
Power / kw | 11 | 15 | 22 | 30 | 45 | 55 |
Production Capacity | 300 | 300 | 800 | 1000 | 1500 | 1800 |
Weight | 950 | 1250 | 1400 | 1580 | 1720 | 1980 |
Remarks
1. The motor can be explosion-proof
2.Milling media can be Zirconia.
