Double-layer PE Compound Air Bubble Film Making Machine
Summary:
1.This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. It has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

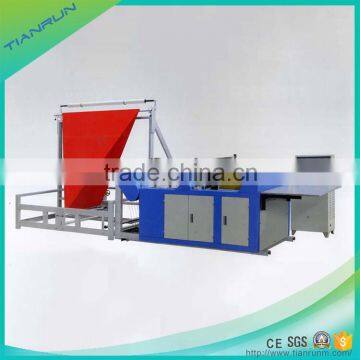

2.The production line includes extruder, vacuum inspirtation, shape mould, traction, rewinder and waste material rewinder device etc.

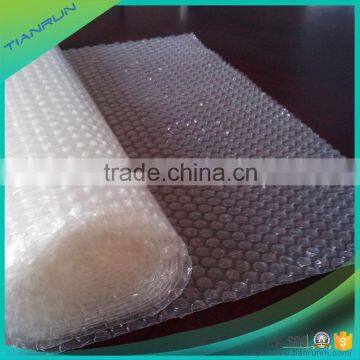

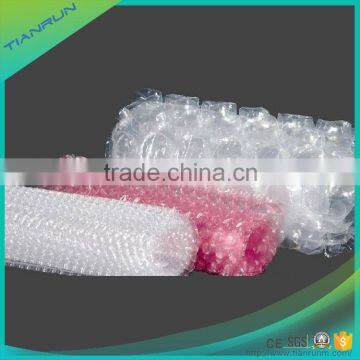

3.Polyethylene bubble film which is divided into two kinds: ordinary polyethylene air bubble film (air cushion film) and composite polyethylene air bubble film (air cushion film). It’s a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat sealing performance, but also has such advantages as good corrosion resistance and transparency etc. So it has been widely used for packing, household wares, post parcel, precise instrument, bicycle, polyurethane furniture etc.
Extra optional devices:
1) Automatic Material Feeder
2) Electrical Screen Filter Changer
3) Automatic Overturn Rewinder
Main Technical Parameters:
Model |
TR-DBF600 |
TR-DBF1200 |
TR-DBF1500 |
Max. Film Width |
600mm |
1200mm |
1500mm |
Screw Diameter |
Φ45, Φ55 |
Φ55, Φ65 |
Φ65, Φ75 |
Screw L/D Ratio |
28:1 |
||
Main Motor Power |
7.5kw, 11kw |
11kw, 15kw |
15kw, 18.5kw |
Main Bubble Size (sizes can be customized) |
Φ6×3.2mm / Φ10×3.4mm / Φ25×10mm / Φ30×10mm |
||
Output |
20~60kg/hr |
50~90kg/hr |
60~100kg/hr |
Total Power |
64kw |
85kw |
98kw |
Machine Weight |
4200kg |
5500kg |
6800kg |
Overall Dimension |
10.0×6.5×2.5m |
10.0×7.5×2.5m |
10.0×8.0×2.5m |
Working Voltage |
380V 3-phase 50Hz |
||
Tianrun retains the right to modify parameters without previous advice. | |||
