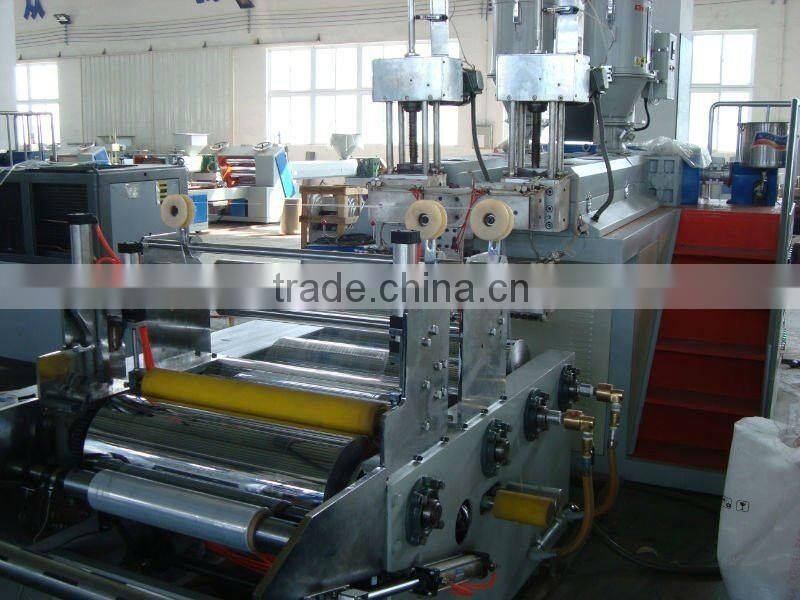

Help CenterHigh Quality Co-extrusion Stretch Cling Film Machine
Related Products
-
High Quality Co-extrusion Stretch Cling Film EquipmentUS$ 15,000 - 50,000MOQ: 1 Set -
High Quality Bubble Film Making EquipmentUS$ 10,000 - 40,000MOQ: 1 Set
-
Best Choice of Air Bubble Sheet EquipmentUS$ 10,000 - 40,000MOQ: 1 Set
-
Professional PE Air Bubble Film Making Machine on SaleUS$ 10,000 - 20,000MOQ: 1 Set
-
Double-layer PE Compound Air Bubble Film Making MachineUS$ 5,000 - 8,000MOQ: 1 Set
Specifications
use PE as main materialdouble-layer single/double-side self-sticky stretch cling film (wrapping film, fresh-keeping film)
Summary:
This double-layer co-extrusion stretch cling film machine uses LDPE / LLDPE as main material and adopts several kinds of resins to manufacture the single / double-side self-sticky stretch cling film (wrapping film, fresh-keeping film). The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrinking packaging film during transportation.
Extra optional equipments:
- Auto Loader
- Auto Screen Changer
- Dry Hopper
- Air Shaft
- Auto Winder Changer
- Glue Pump
Main Technical Parameters:
Model |
TR-DSF50×2-750 |
TR-DSF55×2-1250 |
Film Thickness |
0.015-0.05mm |
0.015-0.05mm |
Screw Diameter |
Φ50×2 |
Φ55×2 |
Screw L/D Ratio |
28:1 / 30:1 |
|
Screw Rotating Speed |
10-120rpm |
|
Screw & Barrel Material |
38CrMoAl |
|
Die Width |
750mm |
1250mm |
Film Width |
300-600mm |
500-1000mm |
Film Winding Diameter |
Φ300mm |
|
Main Motor Power |
7.5kw×2 |
11kw×2 |
Heating Power |
30kw |
45kw |
Output |
20-40kg/hr |
50-70kg/hr |
Machine Weight |
3500kg |
4500kg |
Overall Dimension |
4800×2000×2600mm |
4800×2600×2600mm |
