Hot air BGA Rework Station SV650 vacuum desoldering station for CPU GPU repair
- 100 Set / Sets per Month
- Shenzhen/Hong kong
- T/T PayPal
- CNC machine tool Oil Lubrication products and equipment
- Centralized Lubrication System Pump for Machinery
- automatic pump control oil machine maintenance lubricators
- electronic products machinery manufacturing lubrication solutions
- cnc turning electric motor machine parts and lubrication pump
- Centralized Lubrication system industrial machinery equipment
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Shuttle Star | Model Number: | RW-650 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot air BGA Rework Station SV650 vacuum desoldering station for CPU GPU repairing. Hot air BGA Rework Station SV650 for GPU replacement. BGA chipset rework machine , SMD rework station, infrared bga rework station.
- Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the auto soldering and mounting function
- Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen
- Upper heater is movable, convenient for operation

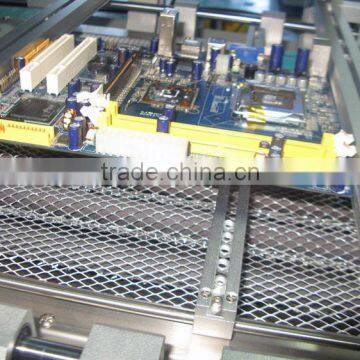

- Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550*500mm
- Powerful cross flow fans cool the bottom heating area rapidly with stable speed
- Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA sized up to 70*70mm
- Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles
- Color LCD monitor
- Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable
- 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer
- Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range of 30-50g
- Equipped with different hot air nozzles, easy to replace and able to locate in any angle

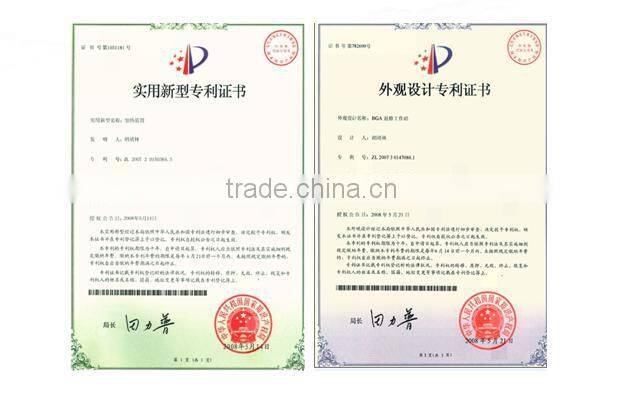

Patent
Item | Qty. |
Applicable PCB Size | W20×D20~W550×D500mm |
Applicable PCB Thickness | 0.5~4mm |
Applicable BGA Size | 1*1~70*70mm |
Min Pitch of BGA Ball | 0.15mm |
Max. BGA weight | 80g |
Alignment Micro-adjust | ±10mm forward/backward, ±10mm left/right, 60° rotation |
Top Heater | 350°c |
Bottom IR Heater | 400°c |
Lower Heater | 350°c |
Placement Precision | 0.01mm |
Temperature Control | 16 sections of programmable temperature control |
Power | Single-phase 220V, 50/60Hz |
Machine Size | L654×W681×H790 |
Machine Weight | Appox. 70Kg |
Packaging: Standard Wooden Case with Machine fixed inside
Delivery: Delievery within 1 week after get payment
Item | Qty. |
BGA Reball Kit(BK98D) | ×1set |
Stencil/Mask | ×33pcs |
Solder Paste/Flux | ×1tin |
Leaded Solder Ball(0.45, 0.5, 0.6mm) | ×1tins |
Upper Nozzle(five for upper, two for bottom) | ×7pcs |
PCB Clamp for Laptop Motherboard | ×1set |
Temperature Measurement Wire | ×1pc |
High Temperature Cloth | ×1pc |
Hex Key Wrench-set | ×1pc |
Aluminum Plate | ×1pc |
- 1 year warranty
- We offer free training on operating personnel and service within the warranty
- We free lifelong training for maintenance, if any question, assistant videos are also provided in after-sale service
- Under warranty, we send spare parts to the customer and afford all the cost and freight if any spare part is broken
Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturer in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
Contact us now! We will reply you within 12 hours! BGA rework station, BGA replacement, BGA repair, SMT, SMD, reballing, reflow, soldering machine, desolder, laptop, Xbox, infrared, LED, automatic, pick and place, optical alignment, hot air, IR, welding
