Hot air BGA rework station chip solder machine with split vision alignment. BGA rework station, BGA replacement, BGA repair, SMT, SMD, reballing, reflow, soldering machine, desolder, laptop, Xbox, infrared, LED, automatic, pick and place, optical alignment, hot air, IR, welding

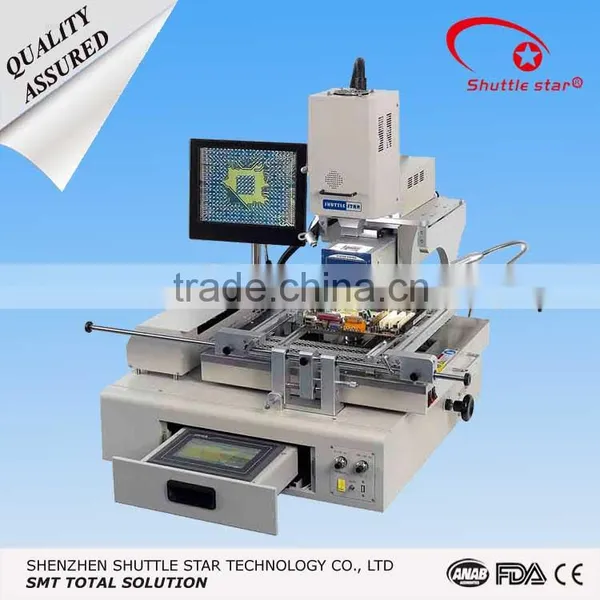

Feature SV650
- Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the auto soldering and mounting function
- Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen
- Upper heater is movable, convenient for operation

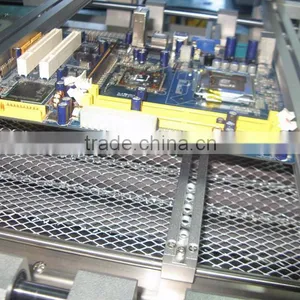

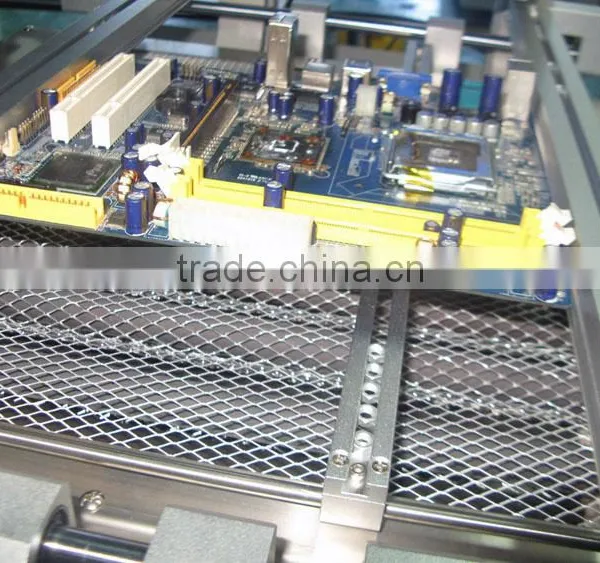

- Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550*500mm
- Powerful cross flow fans cool the bottom heating area rapidly with stable speed
- Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA sized up to 70*70mm
- Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles
- Color LCD monitor
- Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable
- 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer
- Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range of 30-50g
- Equipped with different hot air nozzles, easy to replace and able to locate in any angle
Packaging: Standard Wooden Case with Machine fixed inside
Delivery: Delievery within 1 week after get payment
1. How about the package ? Is it safe during the delivery ?
All machines are packed with strong wooden case filled with foam. Wooden bars support the package from deformation and the machines are carefully wrapped with waterproof packing. You don't need to worry about safety issue during delivery.
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, around 30 days to arrive.
3. How do I operate the machine if I don't have any experience, is it hard to operate?
Our machines are designed to use easily. We provide user friendly English manual. It will take you 1-2 hours to learn how to operate well. If you have any problem, we also provied operation video online.
4. Will you arrange it if I send sample board to your factory for evaluation? Do your company provide OEM?
Yes, we will arrange it for free and warmly welcome you to visit our factory. We can customize products according to your needs.
5. What is the way of payment?
We accept L/C, T/T, Moneygram, Paypal etc.
Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturers in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
Contact us now! We will reply you within 12 hours!
