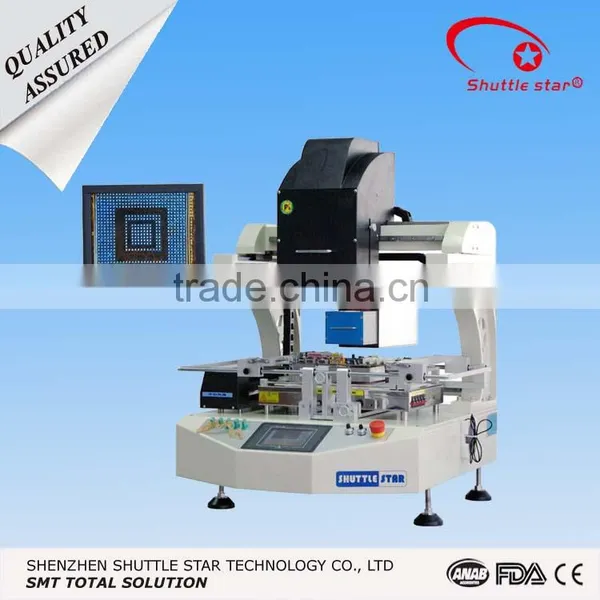

Better than ever! Shuttle star E6250 automatic IR heating bga rework station with optical alignment repair mobile phone best choice for repairing laptop, Xbox, Play station, Mobile phone etc.

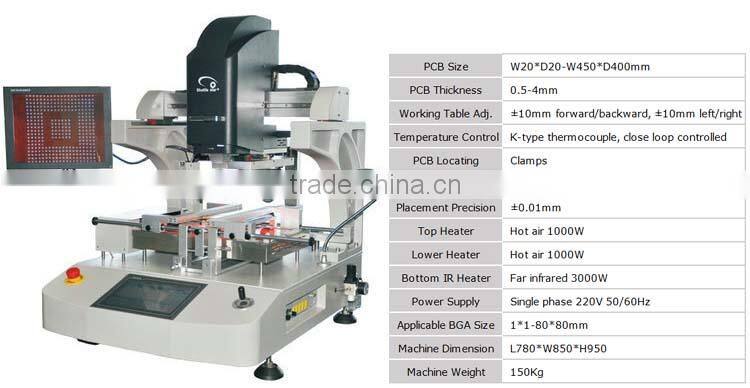

• The machine body is coated with aluminium alloy; X/Y table are precision linear guide rails; driven by SERVO motor,has both the auto soldering and mounting function; embeded with industrial computer system, touch screen interface with both Chinese and English menu, PLC control; adopts high-precision K-type thermocouple&close cycle control, with PID auto setting system.
• Profile analysis, setting and amendment can be carried out at any time, mass memory for temperature parameters and heating alignment parameters saving.
• Use adjustable high definition CCD color optical system with functions of split vision, zoom-in and micro-adjustment, equipped with aberration?detection device; with auto focus and software operation function,27X optical zoom and 270X digital zoom; zoom control can be carried out on touch screen.
• Be provided with software functions, including "IC hold", profile suspending or time-lapse, screen lock etc. which makes the opertion more human-friendly.

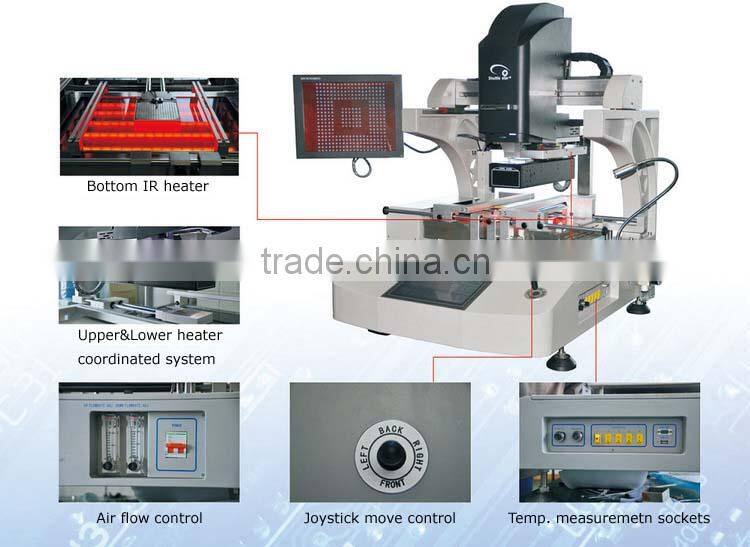

• Both upper and lower hot-air heating head are movable on the IR preheating area to fit for reworking BGA in different positions on PCB.
• Lower heater is mixed heating system with hot-air and IR; leave nitrogen port; finish the BGA rework process under the nitrogen protection, have special function for saving nitrogen to save cost.
• Built-in vacuum pump; 360° rotation in Φ angle; mounting nozzle is micro-adjustable; Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range.
• With function of over-heating protection and air lost protection; upper heater is of anti-collision and anti-press function.
• Large IR area heater from the bottom will heat the PCB evenly to avoid deformation and keep soldering effect; heating board is independently controlled;suitable for any kind of BGA package, including CCGA,BGA,QFN,CSP,LGA,Micro SMD,MLF(Micro Lead Frames)
| Item | Qty. |
| BGA Reball Kit(BK98D) | x 1pc |
| Stencil/Mask | x 33pcs |
| Solder Paste/Flux | x 1tin |
| Leaded Solder Ball(0.45, 0.5, 0.6mm) | x 3tins |
| Upper Nozzle(five for upper, two for bottom) | x 7pcs |

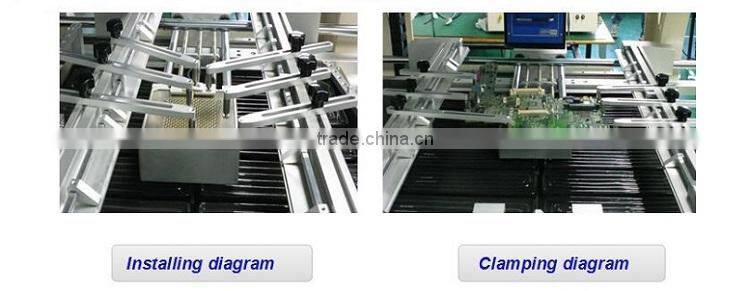

| PCB Clamp for Laptop Motherboard | x 1set |
| Temperature Measurement Wire | x 1pc |
| High Temperature Cloth | x 1pc |
| Hex Key Wrench-set | x 1pc |
| Aluminum Plate | x 1pc |
| Suction Pen | x 1pc |
| Brush | X 1pc |
• 1 year warranty
• We offer free training on operating personnel and service within the warranty
• We free lifelong training for maintenance, if any question, assistant videos are also provided in after-sale service
• Under warranty, we send spare parts to the customer and afford all the cost and freight if any spare part is broken
Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturers in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
