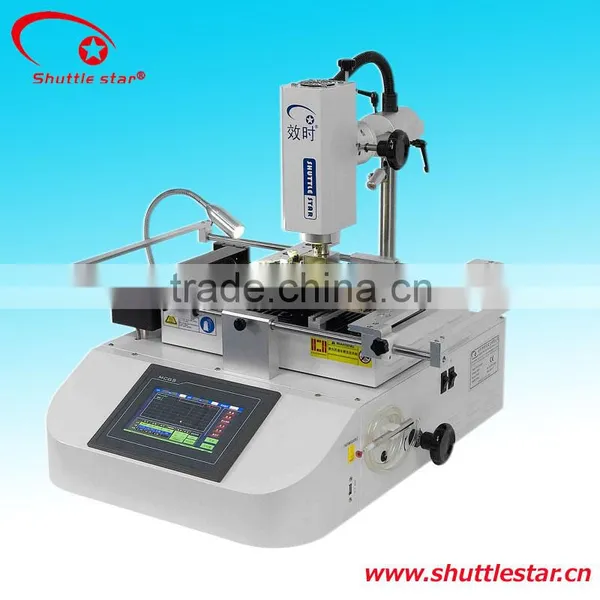

Soldring station hot air SP360C for BGA chipset repair. Economic and room saving. Best choice for Laptop, Xbox, PS3 and moblie repair. BGA rework station, BGA replacement, BGA repair, SMT, SMD, reballing, reflow, soldering machine, desolder, laptop, Xbox, infrared, LED, automatic, pick and place, optical alignment, hot air, IR, welding
- Made of high quality heating material; desoldering and soldering procedures of BGA are precisely controlled;
- Movable heating head, which is able to move freely horizontally, easy to operated;
- Embedded industrial computer, PLC control, real-time profile display, able to display set profile and practically tested profile; big size screen, easy to operate;
- Profile saving no limit in this industrial computer, can analyze the two practically-tested profiles;
- The temperatures of the upper and lower hot air heaters can be precisely controlled according to their specific temperatures. The infrared constant temperature heating zone at the bottom area and the appropriate temperature-control settings make the rework safer and more reliable;
- The supports for the BGA soldering supporting frame are micro-adjustable to restrain local sinkage;
- Powerful cross flow fans cool the lower heating area rapidly;
- The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be installed, enables easy and fast positioning of the PCB board;
- Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA;
- Both the upper and lower parts are equipped with over-temperature alarming and protection apparatus;
- With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements;
- The integrated design of machine and chassis is room-saving. could be altered to instrument-control;
- The software can be updated to auto-profile in future by USB, no need to set profiles.
| Item | Qty. |
| Max. PCB Size | W430×D350mm |
| Applicable BGA Size | 7*7~55*55mm |
| Max. BGA weight | 80g |
| Max. PCB Thickness | 3mm |
| Top Heater | 350°c |
| Bottom IR Heater | 350°c |
| Lower Heater | 300°c |
| Placement Precision | 0.01mm |
| Temperature Control | 16 sections of programmable temperature control |
| Power | Single-phase 220V, 50/60Hz |
| Machine Size | L650×W500×H600 |
| Machine Weight | Appox. 36Kg |
Packaging: Standard Wooden Case with Machine fixed inside
Delivery: Delievery within 1 week after get payment
1. How about the package ? Is it safe during the delivery ?
All machines are packed with strong wooden case filled with foam. Wooden bars support the package from deformation and the machines are carefully wrapped with waterproof packing. You don't need to worry about safety issue during delivery.
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, around 30 days to arrive.
3. How do I operate the machine if I don't have any experience, is it hard to operate?
Our machines are designed to use easily. We provide user friendly English manual. It will take you 1-2 hours to learn how to operate well. If you have any problem, we also provied operation video online.
4. Will you arrange it if I send sample board to your factory for evaluation? Do your company provide OEM?
Yes, we will arrange it for free and warmly welcome you to visit our factory. We can customize products according to your needs.
5. What is the way of payment?
We accept L/C, T/T, Moneygram, Paypal etc.
Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturers in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
Contact us now! We will reply you within 12 hours!
