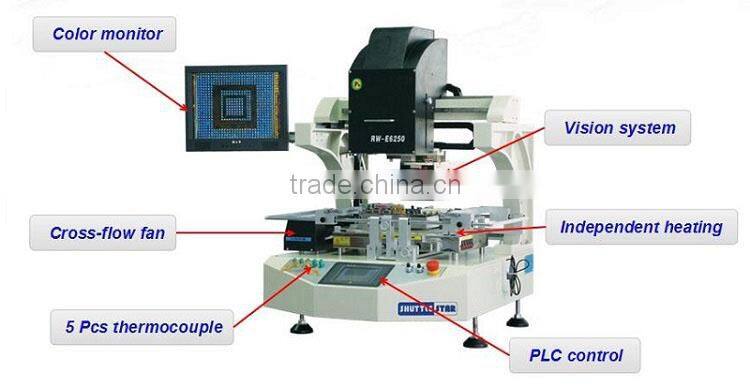

High performance BGA repair station E6250 repair Laptop SMT components on PCB motherboard. Designed to repair BGA chips of Xbox, PS4, Laptop and all kinds of moterboards.

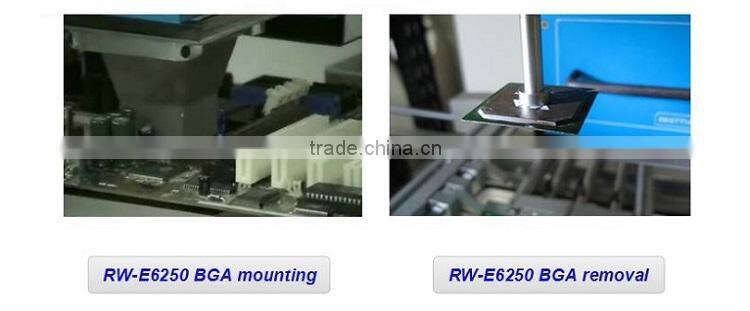

- Has both the auto soldering and mounting function; adopts high-precision K-type thermocouple & close cycle control.
- Profile analysis, setting and amendment can be carried out at any time, mass memory for parameters saving.
- High definition CCD color optical system with functions of split vision, 27X optical zoom and 270X digital zoom.
- Be provided with human-friendly software functions, including "IC hold", profile suspending or time-lapse, screen lock etc.

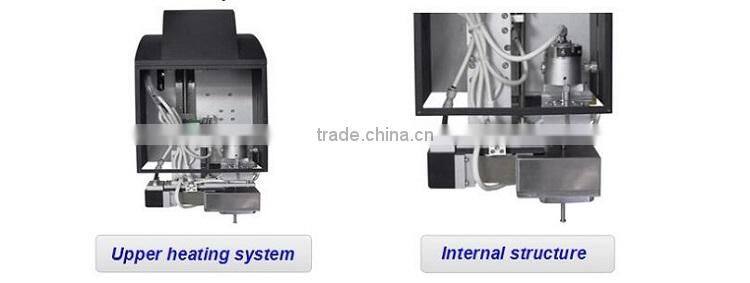

- Movable heating heads to fit for reworking BGA in different positions; nitrogen port available to make the BGA rework process under the nitrogen protection.
- Suction nozzle can identify material and mounting height automatically.
- With function of over-heating protection and air lost protection.

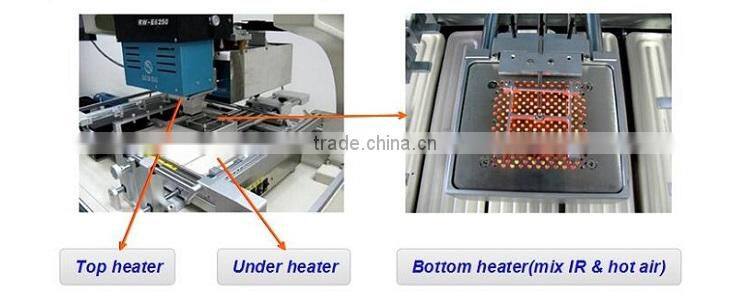

- Large bottom IR area heater can heat the PCB evenly to avoid deformation; heating board is independently controlled.
-
Suitable for any kind of BGA package, including CCGA,BGA,QFN,CSP,LGA,Micro SMD,MLF(Micro Lead Frames).Patent & Awards
| PCB & Component Requirements | |
| PCB Max Size | 450mm×400mm |
| Max. Processing Area | 120mm×120mm |
| Max. PCB Thickness | 4mm |
| Max. Component Size | 70mm×70mm |
| Min. Component Size | 4mm×4mm |
| Max. Component Wieght | 80g |
| Vision System Specifications | |
| Max. Vision Range | 40mm×40mm |
| Min. Pitch | 0.30mm |
| Micrometer Adjust Range | Front/Rear ±10mm, Left/Right ±10mm |
| Rotation Angle | 360° |
| Thermal Specification | |
| Max. Hot Air Head Temp. | 350°c |
| Max. Lower IR Heat | 400°c |
| Heat Control Adjustment | 8-stage Programmable Temperature Settings |
| Upper Heater Power | 1000W |
| Lower Heater Power | 1000W |
| Bottom IR Heater Power | 3600W |
| Dimensions & Power Requirements | |
| System Demension | L850mm×W700mm×H950mm |
| Weight | Appox. 150Kg |
| Power Requiement | Single Phase, 220V AC, 50/60Hz |
| Air Supply | 5˜8kfg/cm, 60L/min |
Packaging: Standard Wooden Case with Machine fixed inside
Delivery: Delievery within 1 week after get payment
| Item | Qty. |
| BGA Reball Kit(BK98D) | ×1set |
| Stencil/Mask | ×33pcs |
| Solder Paste/Flux | ×1tin |
| Leaded Solder Ball(0.45, 0.5, 0.6mm) | ×1tins |
| Upper Nozzle(five for upper, two for bottom) | ×7pcs |
| PCB Clamp for Laptop Motherboard | ×1set |
| Temperature Measurement Wire | ×1pc |
| High Temperature Cloth | ×1pc |
| Hex Key Wrench-set | ×1pc |
| Aluminum Plate | ×1pc |
1. How about the package ? Is it safe during the delivery ?
All machines are packed with strong wooden case filled with foam. Wooden bars support the package from deformation and the machines are carefully wrapped with waterproof packing. You don't need to worry about safety issue during delivery.
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, around 30 days to arrive.
3. Is this machine easy to use ? If I have no experience, can I operate it well ?
Yes, our machines are designed to use easily. We provide friendly English user manual. It will take you 1-2 hours to learn how to operate for common user. If you have any problem, we also provied operation video online.
4. Will you arrange it if I send sample board to your factory for evaluation? Do your company provide OEM?
Yes, we will arrange it for free and warmly welcome you to visit our factory. We can customize products according to your needs.
5. What is the way of payment?
We accept L/C, T/T, Moneygram, Paypal etc.
Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturer in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
