Hot Air Bga Rework Station Smd Soldering Machine Shuttle Star SP360C
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
SP360C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Infrared Soldering Station Shuttle Star SP360C CPU GPU and All Kinds of ChipsetUS$ 1 - 999MOQ: 1 Set -
Soldring Station Hot Air SP360C for BGA Chipset RepairNegotiableMOQ: 1 Set
-
High Performance BGA Rework Station E6250 Repair SMT Components on PCB MotherboardUS$ 1 - 19,999MOQ: 1 Set
-
Quick BGA Replacement BGA Rework Station E6250 Repair SMT/SMDUS$ 1 - 19,999MOQ: 1 Set
-
BGA Repair Station E6250 Repair Machine for PC Xbox PS4US$ 1 - 19,999MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Shuttle Star
Model Number
SP360C
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas

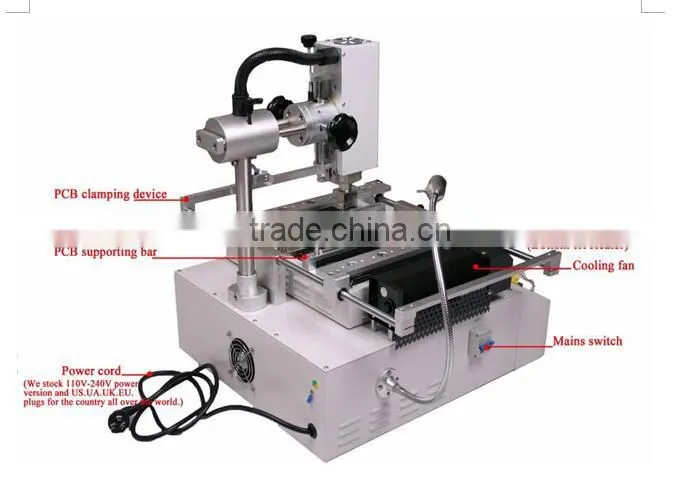

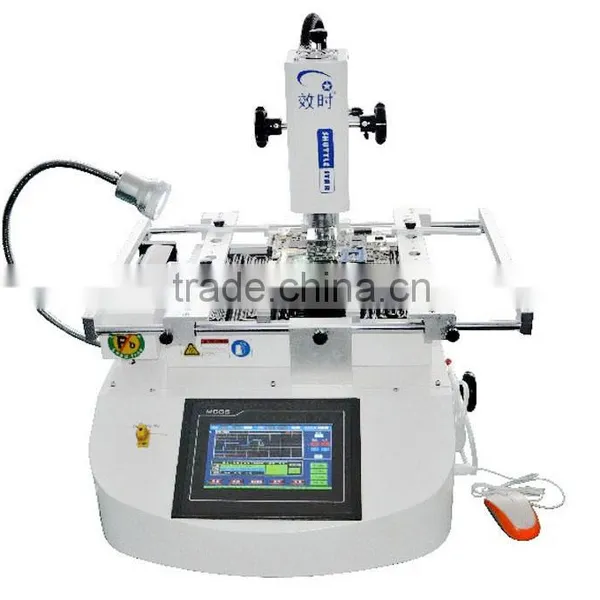

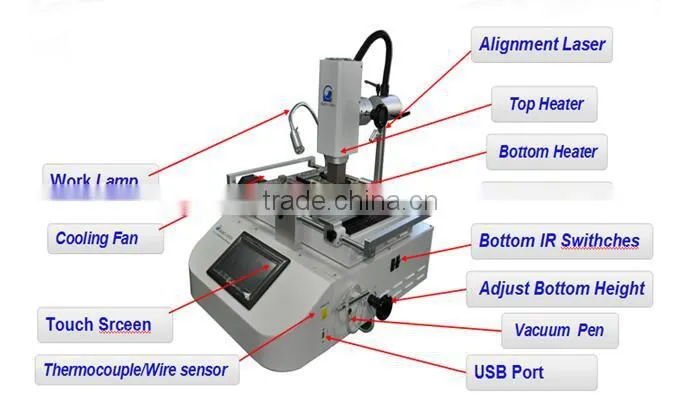

Hot air bga rework station smd soldering machine Shuttle Star SP360C
Features
- Made of high quality heating material; desoldering and soldering procedures of BGA are precisely controlled;

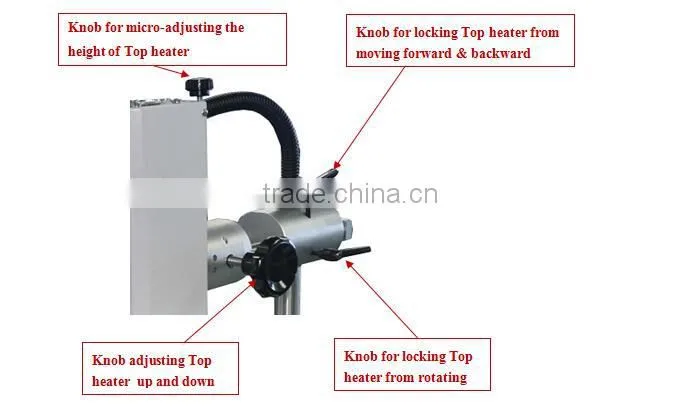

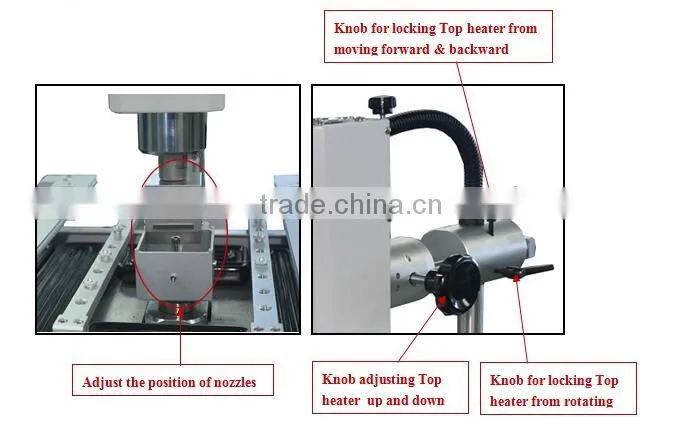

- Movable heating head, which is able to move freely horizontally, easy to operated;
- Embedded industrial computer, PLC control, real-time profile display, able to display set profile and practically tested profile; big size screen, easy to operate;
- Profile saving no limit in this industrial computer, can analyze the two practically-tested profiles;
- The temperatures of the upper and lower hot air heaters can be precisely controlled according to their specific temperatures. The infrared constant temperature heating zone at the bottom area and the appropriate temperature-control settings make the rework safer and more reliable;

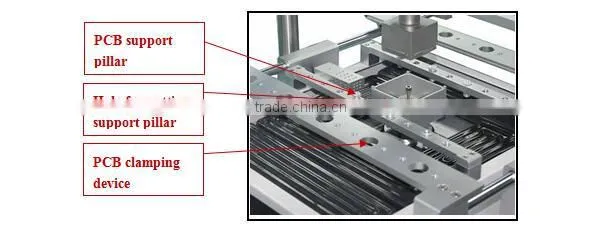

- The supports for the BGA soldering supporting frame are micro-adjustable to restrain local sinkage;
- Powerful cross flow fans cool the lower heating area rapidly;

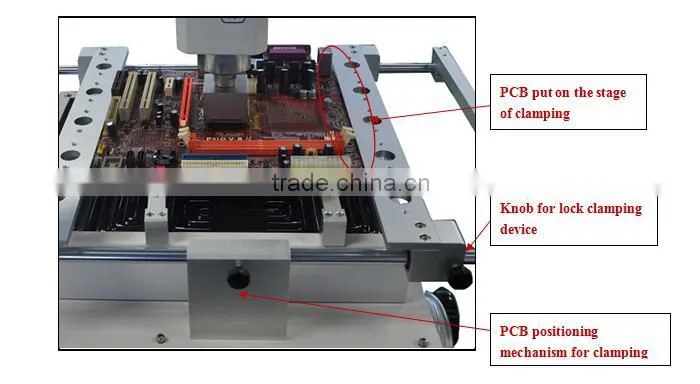

- The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be installed, enables easy and fast positioning of the PCB board;
- Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA;
- Both the upper and lower parts are equipped with over-temperature alarming and protection apparatus;

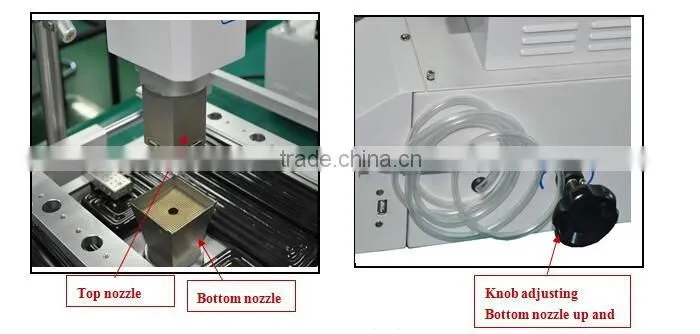

- With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements;
- The integrated design of machine and chassis is room-saving. could be altered to instrument-control;
- The software can be updated to auto-profile in future by USB, no need to set profiles.
Specification
| Item | Qty. |
| Max. PCB Size | W430×D350mm |
| Applicable BGA Size | 7*7~55*55mm |
| Max. BGA weight | 80g |
| Max. PCB Thickness | 3mm |
| Top Heater | 350°c |
| Bottom IR Heater | 350°c |
| Lower Heater | 300°c |
| Placement Precision | 0.01mm |
| Temperature Control | 16 sections of programmable temperature control |
| Power | Single-phase 220V, 50/60Hz |
| Machine Size | L650×W500×H600 |
| Machine Weight | Appox. 36Kg |
Packaging & Shipping
Packaging: Standard Wooden Case with Machine fixed inside
Delivery: Delievery within 1 week after get payment
Our Services
- 1 year warranty
- We offer free training on operating personnel and service within the warranty
- We free lifelong training for maintenance, if any question, assistant videos are also provided in after-sale service
- Under warranty, we send spare parts to the customer and afford all the cost and freight if any spare part is broken
