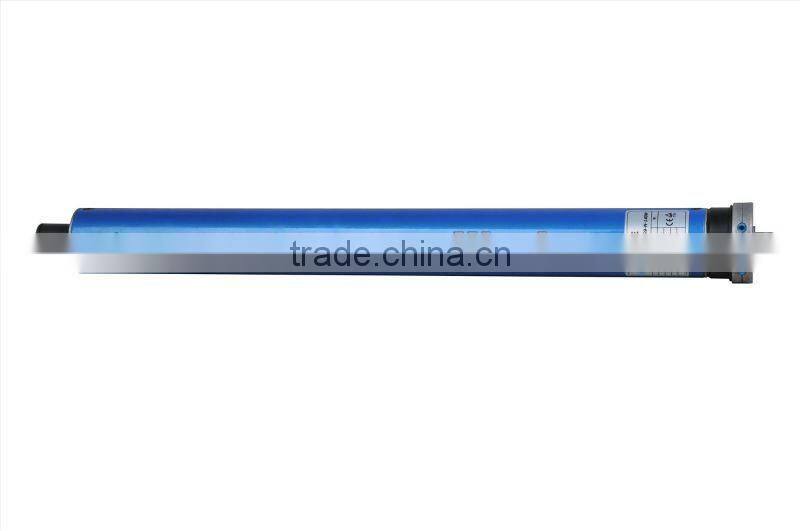

Help CenterTubular Motor 59mm Without Manual SF59S
Related Products
-
SF59 M1 Tubular Motor / Tubular Motor for Rolling Shutter/AC Tubular MotorNegotiableMOQ: 100 Pieces -
SF59 M2 Tubular Motor / Tubular Motor for Rolling ShutterNegotiableMOQ: 100 Pieces
-
SF59 M3 Tubular Motor / Rolling Shutter MotorNegotiableMOQ: 100 Pieces
-
SF59 M4 Tubular Motor / Rolling Shutter MotorNegotiableMOQ: 100 Pieces
-
Tubular Motor 59 mm ManualNegotiableMOQ: 200 Pieces
Specifications
The tubualr motor compact construction, fashion style, easy installation, flexible operation, amooth running.Company Profile: Zhejiang Huzhou SCVE Machine & Motor.Co.Ltd is a pefessional company in manufacturing and dealing with tubular motor& it's accessories in China.
At preasent,SF series tubular motor already have the most complete models from 3Nm to 500N.m in diameter of 35mm(SF35 series),45mm(SF45 series),59mm(SF59 series),64mm(SF64 series),92mm(SF92 series),115mm(SF115 series).
With&without manual override for your various choices please refer to our website www.scvemotor.en.china.cn to learn more details about our products.
Range:garage door, Shops shutter,Awning, nivie screen.
SF59 S Non-Manual Override
Technical Data |
Torque
|
Power
|
Current
|
Valtage
|
RPM
|
Thermal Protect Time(Min) |
L
|
SF59-60S |
60Nm |
288W |
1.25A |
230V/50Hz 110V/60Hz |
12 |
4 |
635mm |
SF59-80S |
80Nm |
350W |
1.50A |
230V/50Hz 110V/60Hz |
12 |
4 |
635mm |
SF59-100S |
100Nm |
441W |
1.92A |
230V/50Hz 110V/60Hz |
12 |
4 |
635mm |
SF59-120S |
120Nm |
450W |
1.96A |
230V/50Hz 110V/60Hz |
12 |
4 |
635mm |
SF59-140S |
140Nm |
450W |
1.96A |
230V/50Hz 110V/60Hz |
9 |
4 |
635mm |
230V 50Hz Single phase motor
230V 50Hz
110V 60Hz Single phase motor
110V 60Hz
Supplied complete with limit adjuster tool
Silent running on operation
Without manual override
