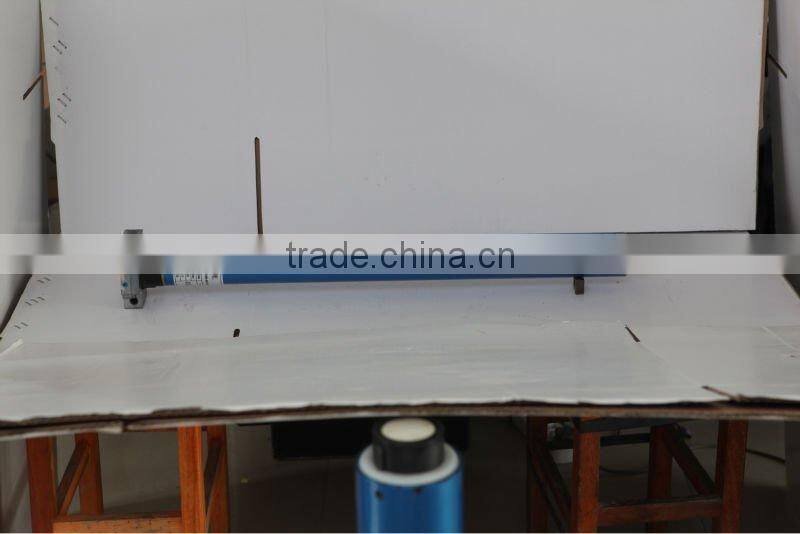

SF59 M3 Tubular motor / rolling shutter motor

Specifications

1. tubular motor for rroller shutter
2. tube adaptors to suit 67mm to 133mm

Company File:  Zhejiang Huzhou SCVE Machine&Motor Co.,ltd is a professional manufacturer in tubular motors and relative accessories in China.

With many years' experience, we have established a skilled team with high technology, who are dedicated to investigating and developing new tubular motor constantly .



At present, SF series tubular motor already have the most completed models from 3N.M to 500N.M in diameter of 35mm(SF35series), 45mm(SF45 series), 59mm(SF59 series), 64mm(SF64 series). 92mm(SF92 series), 115mm(SF115 series). With or without manual override for your various choices, please link our website: www.scvemotor.en.china.cn  to get  more details about our products. All of products are CE, TUV, ROHS, UL certificated.



Detailed Product Specification:





Technical Data	Torque	Power	Current	Voltage	RPM	Thermal Protect Time(min)
SF59-60M3	60Nm	288W	1.25A	230V/50Hz	12	4
SF59-80M3	80Nm	350W	1.50A	230V/50Hz	12	4
SF59-100M3	100Nm	441W	1.92A	230V/50Hz	12	4
SF59-120M3	120Nm	450W	1.96A	230V/50Hz	12	4
SF59-140M3	140Nm	450W	1.96A	230V/50Hz	9	4
