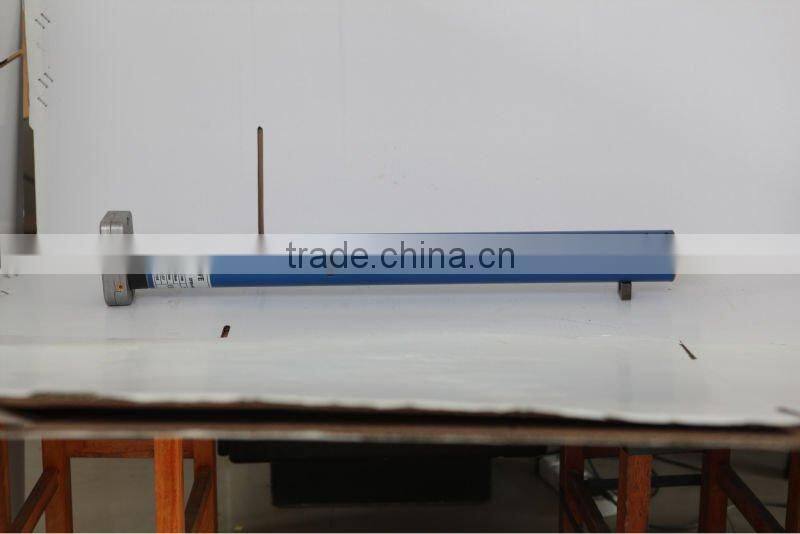

SF59 M2 Tubular Motor / Tubular Motor for Rolling Shutter

SF59 M2 Tubular Motor / Tubular Motor for Rolling Shutter photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SCVE
Model Number:
SF59 M2 Manual override
Type:
Other, AC motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SCVE
Model Number SF59 M2 Manual override
Type Other, AC motor
Frequency 50/60
Output Power 288-450W
Protect Feature Other, IP44
Phase Single-phase
Certification CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, TUV
AC Voltage 208-230 / 240 V
Place of Origin Zhejiang, China

Specifications

1. tubular motor for rroller shutter
2. tube adaptors to suit 67mm to 133mm
3.silent running on operation

Company File:  Zhejiang Huzhou SCVE Machine&Motor Co.,ltd is a professional manufacturer in tubular motors and relative accessories in China.

With many years' experience, we have established a skilled team with high technology, who are dedicated to investigating and developing new tubular motor constantly .



At present, SF series tubular motor already have the most completed models from 3N.M to 500N.M in diameter of 35mm(SF35series), 45mm(SF45 series), 59mm(SF59 series), 64mm(SF64 series). 92mm(SF92 series), 115mm(SF115 series). With or without manual override for your various choices, please link our website: www.scvemotor.en.china.cn  to get  more details about our products. All of products are CE, TUV, ROHS, UL certificated.



Detailed Product Specification:





Technical Data Torque Power Current Voltage RPM Thermal Protect Time(min)
SF59-60M2 60Nm 288W 1.25A 230V/50Hz  12  4
SF59-80M2 80Nm 350W 1.50A 230V/50Hz  12  4
SF59-100M2 100Nm 441W 1.92A  230V/50Hz  12  4
SF59-120M2 120Nm 450W 1.96A  230V/50Hz  12  4
SF59-140M2 140Nm 450W 1.96A  230V/50Hz  9  4















SF59 M2 Tubular motor / tubular motor for rolling shutter
