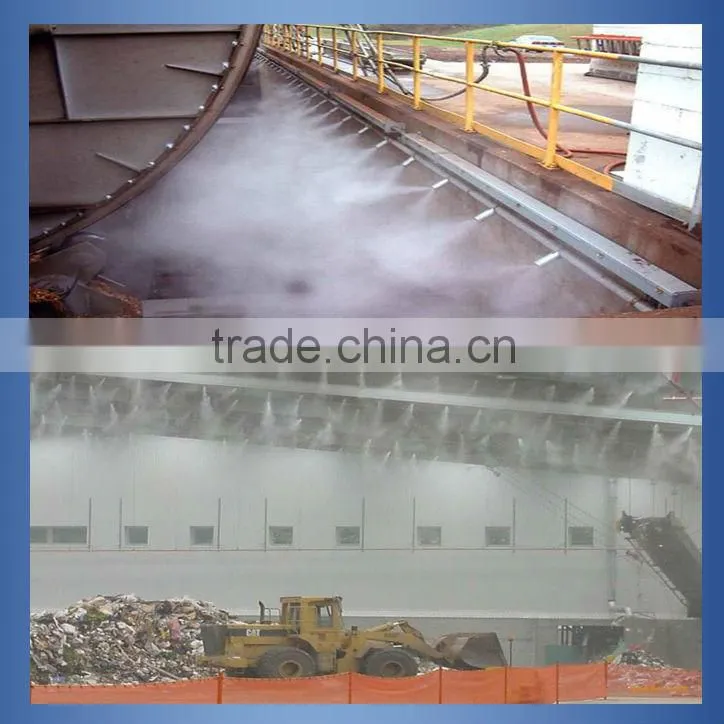

Dry Fog Dust Suppression System

Product

Type

Main Specification

Nozzle Quantity

Remarks

Dry Fog

Main Part

YHW-25

Water inlet diameter DN15

Air inlet diameter DN25

Water consumption 13L/min

Air consumption 4.71m³/min

19-43

Stainless steel or carbon

steel within spraying

plastics structure

YHW-32

Water inlet diameter DN15

Air inlet diameter DN32

Water consumption 21L/min

Air consumption 7.72m³/min

31-70

Stainless steel or carbon

steel within spraying

plastics structure

YHW-40

Water inlet diameter DN20

Air inlet diameter DN40

Water consumption 32L/min

Air consumption 12.1m³/min

48-110

Stainless steel or carbon

steel within spraying

plastics structure

YHW-50

Water inlet diameter DN25

Air inlet diameter DN50

Water consumption 50L/min

Air consumption 18.8m³/min

75-171

Stainless steel or carbon

steel within spraying

plastics structure

YHW-65

Water inlet diameter DN32

Air inlet diameter DN65

Water consumption 85L/min

Air consumption 31.8m³/min

127-289

Stainless steel or carbon

steel within spraying

plastics structure

YHW-80

Water inlet diameter DN40

Air inlet diameter DN80

Water consumption129L/min

Air consumption 48.2m³/min

193-438

Stainless steel or carbon

steel within spraying

plastics structure

YHW-100

Water inlet diameter DN50

Air inlet diameter DN100

Water consumption 201L/min

Air consumption 75.3m³/min

301-685

Stainless steel or carbon

steel within spraying

plastics structure

Steam Controller

YHF-04

Contain MIQ, 4 lines steam out-port terminals

Can connect

with 4 nozzle

elements

Stainless steel or carbon

steel within spraying

plastics structure

YHF-06

Contain MIQ, 6 lines steam

out-port terminals

Can connect

with 6 nozzle

elements

Stainless steel or carbon

steel within spraying

plastics structure

YHF-08

Contain MIQ, 8 lines steam

out-port terminals

Can connect

with 8 nozzle

elements

Stainless steel or carbon

steel within spraying

plastics structure

Cardan

Joint Sprayer

YHQ-01

Water flow rate 0.67L/Min

Air flow rate 0.25m³/Min

Nozzle spraying angle 60°

Single nozzle

Stainless steel;

Fine adjustment for

spraying distance, water flow rate, air flow rate

according to the

customer.

YHQ-02

Water flow rate 0.50L/Min

Air flow rate 0.21m³/Min

Nozzle spraying angle 40°

Single nozzle

YHQ-03

Water flow rate 0.23L/Min

Air flow rate 0.11m³/Min

Nozzle spraying angle 15°

Single nozzle

Spraying Chamber

YHX-06

Aluminium alloy outer-structure,

L=1500mm

8 nozzle

elements

Easy nozzle assembling without opening the main case

YHX-08

Aluminium alloy outer-structure,

L=2000mm

8 nozzle

elements
