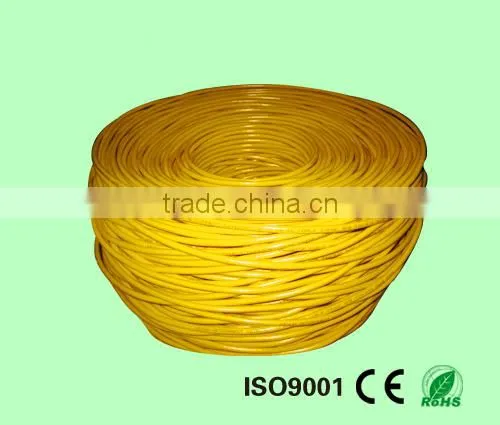

Network Cable UTP Cat5e , Lan Cable With 4 Pair 0.50mm Conductor

US$ 0.1 - 20 MOQ: 20000 Meters

Key Specifications

Place of Origin:

China

Model Number:

F84001

Type:

Cat 5e

Ningbo Hicom Houseware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Model Number F84001

Type Cat 5e

Number of Conductors 4

Product Information:

Network cable UTP cat5e , lan cable with 4 pair 0.50mm conductor

1. Component:

4pairs x 0.50mm BC/CCS/CCA conductor+0.90mm PE insulation + Aluminum foil + 0.50mm BC/CCS/CCA drain wire + 5.5mm PVC jacket

(Specification can be made to customers' satisfaction.)

SPECIFICATION

Part Number		Utp cat5e	Utp cat6	FTP CAT.5E
Conductor	Diameter	0.51±0.01	0.574±0.01	0.515±0.01
	Material	Bare Copper	Bare copper	Bare copper
	Type	Solid	Solid	Solid
Dielectric(Insulation)	Diameter	0.91±0.01	1.04±0.01	0.93±0.01
Dielectric(Insulation)	Material	Solid PE	Solid PE	Solid PE
Shielding	Material	-		Aluminium foil Tinned copper drain wire
Shielding	Coverage	-	-	100%
Jacket(sheath)	Diameter	5.1±0.1	6.3±0.01	5.5±0.01
Jacket(sheath)	Material	Flame retardant PVC	Flame retardant PVC	Flame retardant PVC
colors		Pair 1 : Blue,White / Blue Pair 2 : Orange,White / Orange Pair 3 : Green,White / Green Pair 4 : Brown,White / Brown	Pair 1 : Blue,White / Blue Pair 2 : Orange,White / Orange Pair 3 : Green,White / Green Pair 4 : Brown,White / Brown	Pair 1 : Blue,White / Blue Pair 2 : Orange,White / Orange Pair 3 : Green,White / Green Pair 4 : Brown,White / Brown
Number of Pairs		4pairs	4pairs	4pairs
Weight (kgs/km)		30	40	35
Attenuation(10MHz dB/100m)		6.5	5.6	6.5
NEXT (100MHz dB/100m)		≥35.3	≥38.3	≥35.3
ELFEXT (100MHz dB/100m)		≥23.8	≥19.8	≥23.8
RL (100MHz dB/100m)		≥20.1	≥17.3	≥20.1
Impedance (ohms )		100	100	100
Operating Temperature Range(°C)		-20 to 75	-20 to 75	-20 to 75
package		305meters/roll	305meters/roll	305meters/roll
