High Speed HDMI to DVI Cable DVI 24+1 With Triple Shield For Video Transmission

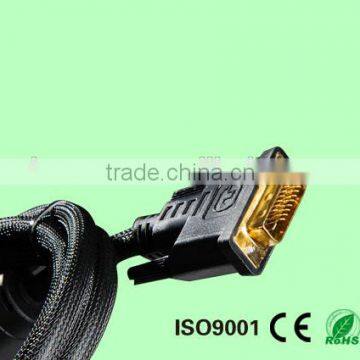

High Speed HDMI to DVI Cable DVI 24+1 With Triple Shield For Video Transmission photo-1

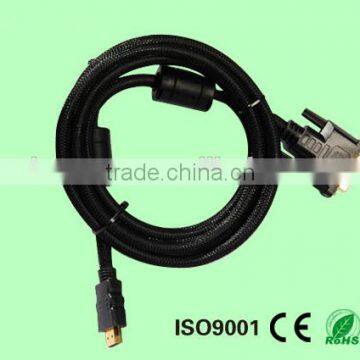

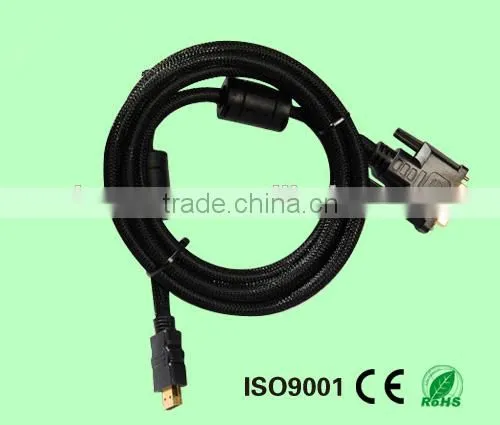

High Speed HDMI to DVI Cable DVI 24+1 With Triple Shield For Video Transmission photo-2

US$ 0.1 - 15 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

F84003

Contact Supplier Request Quote Chat Now

Ningbo Hicom Houseware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number F84003

Product Information:

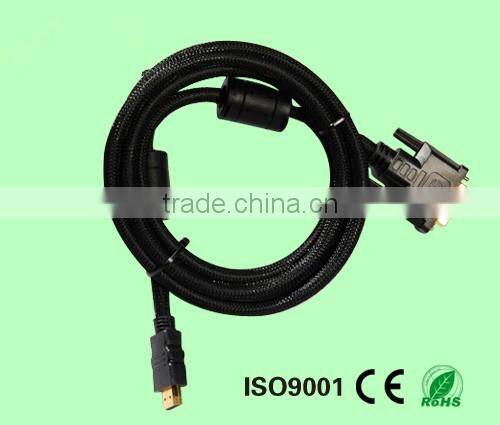

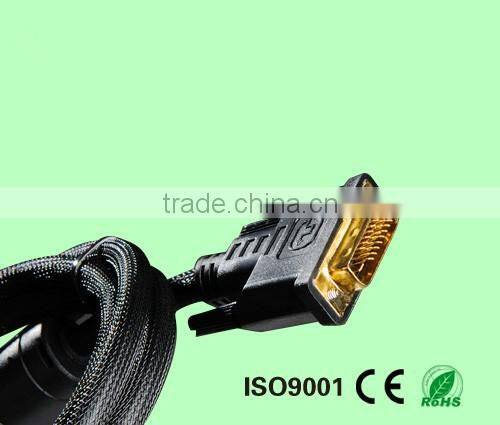

High speed HDMI to DVI Cable DVI 24+1 with Triple Shield For Video Transmission

Specifications

1.Bare cooper connector
2.Nickle plated,100% triple shield
3.RoHS,CE,FCC,UL
4.OEM

Specifications:

1. high pure tinned copper conductor for maximum conductivity and reliability

2. 19pin Male to DVI(24+1) Male

3. compatible with multiple audio formats from stereo to multi-channel sound

4. support HDMI 1.4, Deep color and 10.2GB transfer rates

5. support all high-definition TV format( 480P,720P,1080I,1080P)

6. all connectors and shield(braid and drain) are copper

7. triple shield,make sure to prevent EMI effectively

8. 24K Gold plated connector for the best conductivity

9. support CEC signal connection device completely

10. HDMI adopter,certification with ATC

Features:

cable type:Connector Type: HDMI male to DVI-D dual link male

Connector Finish: Gold

Length: 1m-50m available

Gauge: 30AWG,28AWG,26AWG,24AWG,22AWG(Optional)
# of conductors: 19 or 13 lines

Ferrite cores: Optional

Nylon mesh: Optional

Shielding level: Double or Triple

Supported Resolutions: 480i thru 1080p

Bandwidth: DVI-D dual link supported

Cable type	DVI-D dual link to HDMi cable
Cable connector	gold plated or nickel plated(optional)
Cable gague	30AWG,28AWG,26AWG,24AWG,22AWG(Optional)
Cable conductor	bare cooper,tinned cooper conductor
Shielding level	Double or Triple (braid,AL,Foil)
Supported Resolutions	480i thru 1080p

Electrical test:

1)100% match with the requirements of HDMI;

2)Meet alll the requirements of reliability test and electrical test;

3) Hi-pot: DC 300v 10ms

4) Insulation Resistance: 10m ohm min

5) Contact Resistance: 3max

6) RoHS approval and support 1080P.

Applications:

1. HD-DVD,Blue-ray DVD

2. Game Machines: Sony Plays

3. LCD TVs,Plasma Display

4. Rear Projection Microdisplays

5. Hi-def DVD Payers ;

6. A/V Receivers

7. Digital Television

8. XBOX360

DVI to HDMI compatibility :

HDMI is a newer digital audio/video interface developed and promoted by the consumer electronics industry. DVI and HDMI have the same electrical specifications for their TMDS and VESA/DDC links. To promote interoperability between DVI and HDMI devices, HDMI source components and displays support DVI signalling. An HDMI display can be driven by a single-link DVI-D source, since HDMI and DVI-D define an overlapping minimum set of supported resolutions and frame buffer formats. In the reverse scenario, a DVI monitor that lacks optional support for HDCP might be unable to display protected content, even though it is otherwise compatible with the HDMI source.Features specific to HDMI, such as remote-control, audio transport, xvYCC, and deep-color, are not usable in devices that only support DVI signalling. However, many devices can output HDMI over a DVI output (examples: ATI 3000-series and NVIDIA GTX 200-series video cards),[7] and some multimedia displays accept HDMI (including audio) over a DVI input. Exact capabilities vary from product to product.
