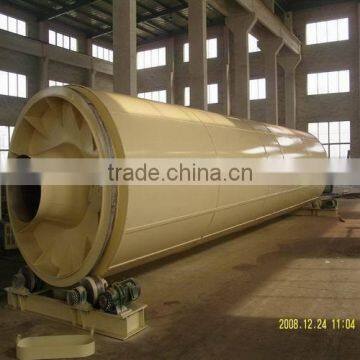

High Drying Efficient Guaranteed Coal Dryer Popular All Over The World
- Shanghai Qingdao Tianjin
- T/T Credit Card
You May Like
-
China Leading Manufacturer Of Rotary Drum Dryer Exported Over 30 Countries
-
Zhongcheng Biomass Rotary Drier With High Capacity
-
Industrial Food Rotary Drier for Sale
-
China Competitive Indirect Rotary Drier With ISO Certificate
-
High Energy Efficiency Sand Rotary Drier in Industry
-
Low Price Rotary Dryer Machine With ISO9001
Product Details
| Condition | New | Type | Rotary Drying Equipment | |
| Place of Origin | Henan, China | Brand Name | Zhongcheng | |
| Model Number | 2200*18000 | Voltage | 380V | |
| Power(W) | 37000 | Dimension(L*W*H) | 18500*2400*2400mm | |
| Weight | 50.3t | Certification | ISO, SGS, BV | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Top10 Coal Dryer:2. High drying efficiency;
3. Wide application;
4. Coal, gas or othersas fuel;
5. ISO,SGS&BV Inspection
High Drying Efficient Guaranteed Coal Dryer Popular All Over The World
Contact Windy: 0086-13526578789
1. Application Of Coal Dryer:
Rotary dryer is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C).
2. Structure Of Coal Dryer:
Rotary dryer machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.

3. Advantages Of Coal Dryer:
1.High capacity
2.Easy operation
3.energy saving
4.22mm steel body
5.wear-resisting plates
6.high quality parts
4. Working Principle Of Coal Dryer:

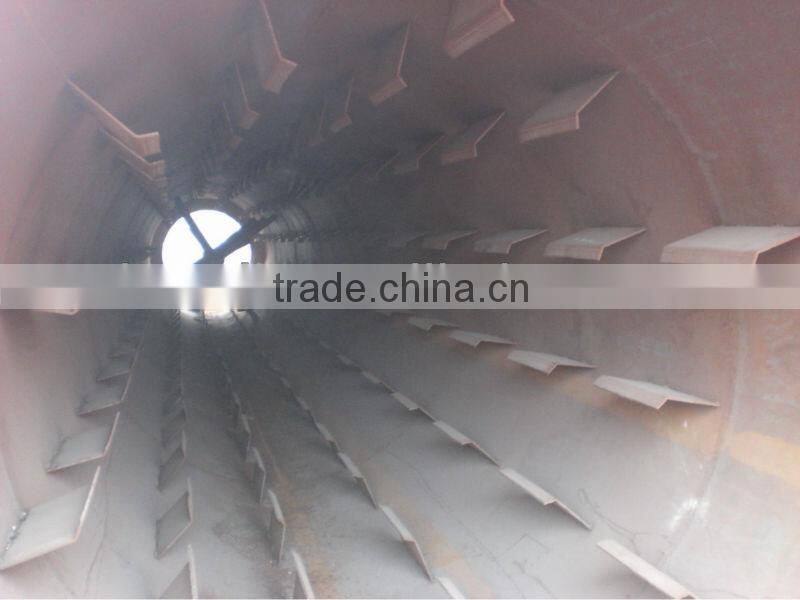

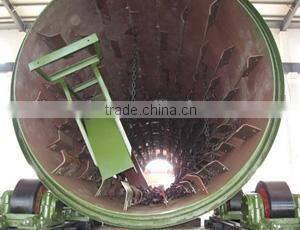

Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
5. Main Tchnical Parameters Of Coal Dryer:
Type | Rotary diameter (mm) | Rotary length (m) | Gradient (0) | Rotational speed (r/min) | Weight (t) | Power (kw) | Volume (m3) |
φ0.6×8 | φ600 | 8 | 3-5 | 8 | 5.1 | 4 | 2.26 |
φ0.8×10 | φ800 | 10 | 3-5 | 7.2 | 6.9 | 4 | 5.02 |
φ1.0×10 | φ1000 | 10 | 3-5 | 6.73 | 7.5 | 5.5 | 7.85 |
φ1.2×12 | φ1200 | 12 | 3-5 | 5.8 | 13.1 | 11 | 13.31 |
φ1.5×12 | φ1500 | 12 | 3-5 | 4.8 | 22.3 | 15 | 21.2 |
Φ1.8×14 | Φ1800 | 14 | 3-5 | 3.2 | 45.8 | 3. | 48.22 |
φ2.2×18 | φ2200 | 18 | 3-5 | 3 | 50.3 | 37 | 70.43 |
φ2.4×20 | φ2400 | 20 | 3-5 | 2.83 | 78.4 | 45 | 90.43 |
φ2.8×24 | φ2800 | 24 | 3-5 | 2.59 | 97 | 75 | 147. |
