Specifications
1.Qualified Brick Making Machine2.Saves power,labor and space
3.Fully automatic
4.Large hydraulic pressure
5.ISO9001:2008

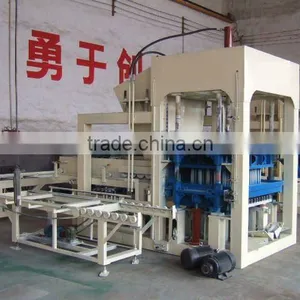

Best Brick Making Machine In Stock
Contact Windy Fan +86-13526578789
1. Brief introduction of brick making machine:
The whole brick making machine adopts PLC system, computer interface operation,it can achieve random signal analysis, fault diagnosis and parameter setting,which ensures the best working effect.
Material storage and separatory devices:adopting sealed conveyor to transport,strictly control the storable volume of the little hopper to achieve transportation for immediate use in order to prevent concrete from being fluidified earlier in the fluence of afershock which ensures the strenghth of the products.
Variety Of Brick Making Machines In Stock
2. Structure of Brick making machine:
Mandatory material feeding devices:when the material arranging truck moves to the top of the mold box, the stirring fork begins to work quickly,which ensures even slant and identical products strenghth.
Increase the effective work-table,the application of the new vibration technologies makes this machine possesses larger work-table,Greatly enhance the productivity. The output of bricks improve 20 percent than domestic similar models.

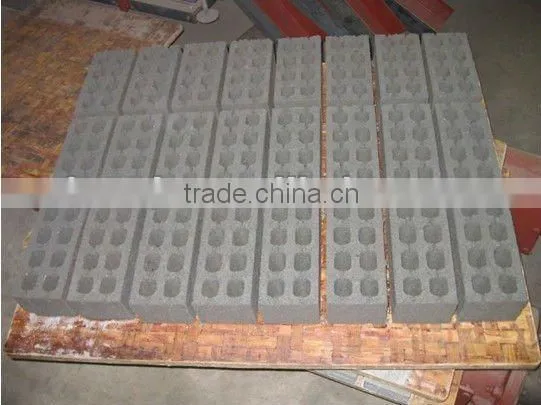

Hollow Blocks Made By Brick Making Machine
3. Working principle of brick making machine:
Unique vibration forms: use computer control flow volume, pressure of the hydraulic system, Complete the vertical synchronous vibration,frequency changing,braking. then convert pressurized excess oil into vibration strike force, thereby reducing the energy consumption.
Reasonable distribution of vibration: The model case is locked on the vibration platform trough the fuel tank,the pressure head equipped with another special vibrator,achieving table-mold synchronous vibration to strengthen vibration effect, This kind of vibration can make the concretes rapid liquefaction,exhaust, make the products possess high-density, high strength.

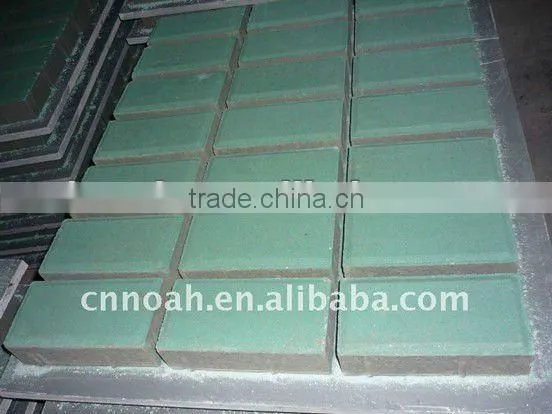

Pavement Made By Brick Making Machine
4 Main technical parameters of brick making machine:
Molding blocks |
Molding cycle |
Theoretical output |
Motor power |
Total weight |
overall dimension |
Pallet size |
|
390×190×190mm 6 blocks/mold 11500blocks/shift |
About 15s |
about69120 blocks/shift (Standard brick)
|
34.5kw |
9.8T |
6790×2205×2780mm |
850×780×40mm |
|
240×115×90mm 18blocks/mold 34000 blocks/shift | ||||||
|
240×115×53mm 36blocks/mold 69120 blocks/shift |
Remarks: The local machine can use sand, stone, fly ash, cinder, gangue, slag tail, ceramsite, perlite and other industrial waste to make a variety of new wall material. Such as the hollow concrete blind hole brick, standard brick,etc, without being burned.

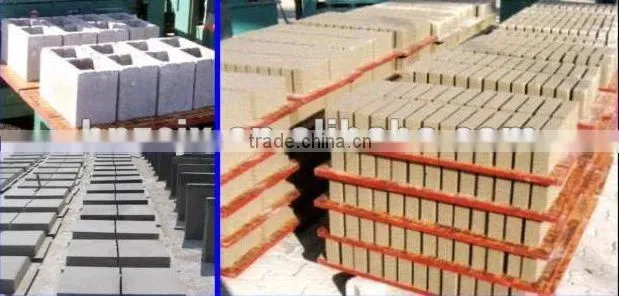

Hollow Blocks And Solid Bricks Produced By Brick Making Machine
