Specifications
1.Hollow Brick Making Machine:2.The whole brick production line;
3.Competitive price;
4.Quite short delivery time
5.ISO9001
Competitive Price Hollow Brick Making Machine Production Line

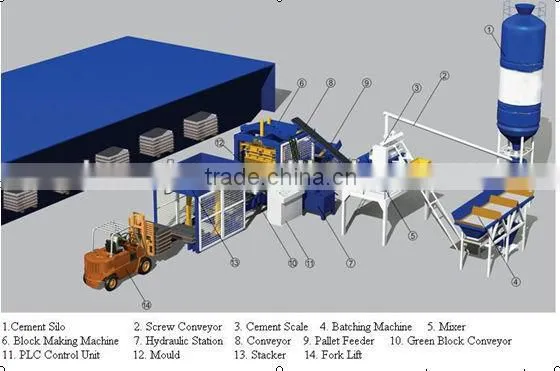

The complete hollow brick production line is usually made up of hollow brick making machine, mixer and belt conveyor,etc.

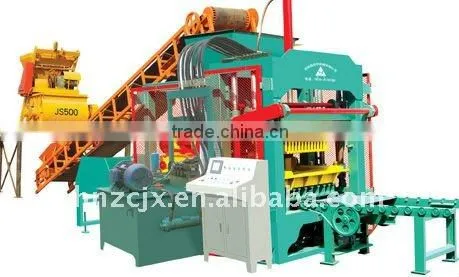

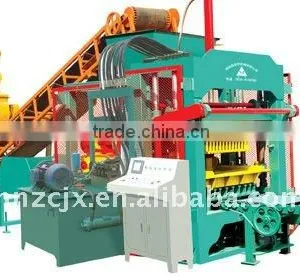

1. QTJ4-18 Hollow Brick Making Machine:
|
Forming block: 240×115×53(mm) 28pieces/mold |
Vibration force: 50KN |
Forming cycle: 15-20s |
Power: 17KW |
|
Shaft output: 45000-47000pieces/8h |
Whole weight: 7.5T |
|
Pallet size: 850×560×20-30mm |
Overall dimensions: 9500mm×2800mm×2750mm |
2. Raw Material Mxer:
Type |
JW 500 |
Mix per time(L) |
500 |
Main shaft speed(r/min) |
35 |
Power(kw) |
14.75 |
Overall dimensions(mm) |
Ø1600*4000 |
3. Belt Conveyor:
Type |
Capacity(m3/h) |
Roller diameter(mm) |
Motor power(kw) |
B500 |
25-143 |
500 |
1.5-3 |
4. Product Description:
1.The machine adopts three poles to pressurize and once form,Stacking immediately after forming, it is the latest bricks model at home.
2. Electrical system adopts programmable controller PLC to control the data output and input.
3. Imported computer appliance seals, hydraulic components use high dynamic performance proportional valves, to accurately control the key components’ action.
4. The machine adopts high precision, high strength steel castings, special welding technology and materials to manufacture. With good rigidity, vibration resistance, long life.
5. This machine adopts four stem guide ways; ensure the accurate movement of pressure head and mould.
6. This machine adopts platform and mold’s vibration together, the hydraulic pressure molding use round-trip oriented feed device, molding cycle is short, high production efficiency, the compactness and quality is good, the size is accurate.
7. Using machine, electricity, liquid integration technology makes each cycle consistent. Thus the forming products are with high stability, lower rejection rate.

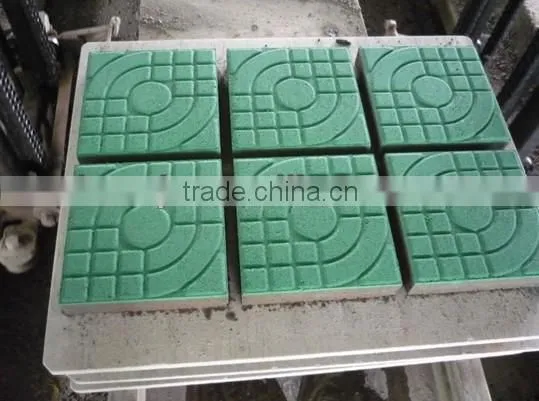

8. A multi-purpose machine, it can produce different specifications brick, hollow block, road edge brick, brick, pavers and tree planting grass brick, brick flower box and other cement products.
9. It can make programming according to production need; realize manual, semiautomatic, automatic action operation,etc.
5. Capacity Of Different Size:
Name |
Size(mm) |
Quantity per mould |
Cycle moulding |
Per hour |
Per day (8 hour) |

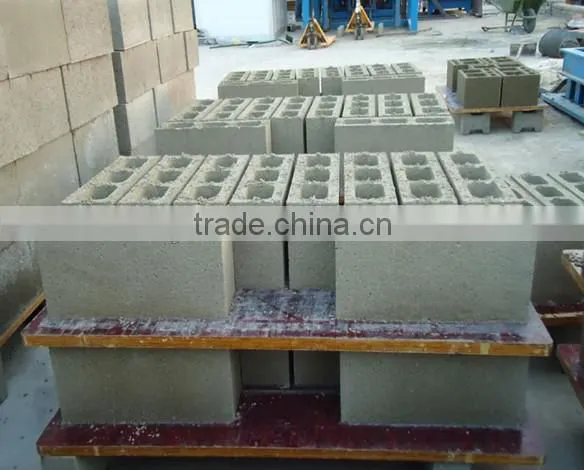

Hollow block |
400*200*200 |
4 |
18s |
800 |
6400 |
Hollow block |
400*150*200 |
6 |
18s |
1200 |
9600 |

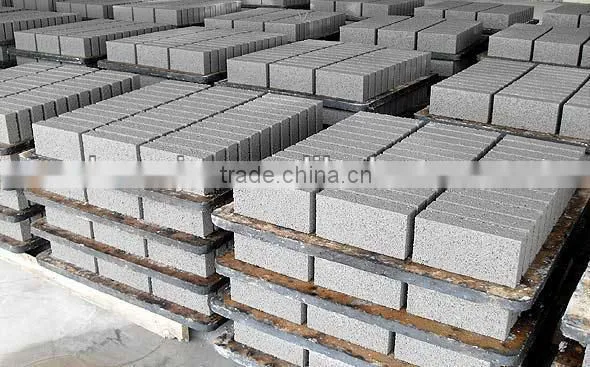

Solid brick |
230*110*75 |
24 |
18s |
4320 |
34560 |
Solid brick |
240*115*53 |
28 |
18s |
5600 |
45000 |
6. Service Promise:
Before sale: Guide customers to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.
After sale: Company can send technical persons for guiding to install debug and train the workers.
