SH-1650b Abrasive Paper (Cloth) Slitter Machine

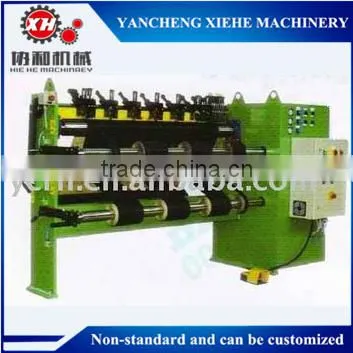

Real Picture:
Usage:
This machine is suitable for the slitting of various Abrasive cloth (paper).
Feature:
1. Hard rolling pneumatic knife (spring type), with strong cutting force, and fast slitting speed;
2. Central coiling, convenient unloading ;
3. Raw materials can be automatically feed, avoid material damage for repeated movement;
4. Strong structure, each roller is special treated, effectively prevent the damage for high-speed ;
5. The winding tension adopts open loop control, the machine can be dynamically adjusted in the process of
operation;
6. Two automatic gauge meter control length, ensuring measuring accuracy;
7. Eectromagnetic motor, convenient and safe adjustment of the engine speed.
Technical Datas:
| Cutting scope | 100-1650mm |
| Cutting speed | 2-10m/min (adjustable) |
| Knife pressure | 6-60Kgf (adjustable) |
| Cutting precision | ±0.5mm |
| Electromagnetic Tension control | 25 N.M |
| Gas pressure | 0.7MPa |
| Power | 5.5KW |
| Weight | 2.5T |
| Others |
Steam rose axis Runaway correction electronic devices |
World-wide Customers:
Shipping:
Certifications:
One year warranty period after the installation. Technical personnel will be assigned to the customer side for installation and setting up, including on site layout of equipment, pipe and line arrangement.
Welcome to contact us and visit our company !
