BOPP/PET/Fabric Roll Slitter Machine

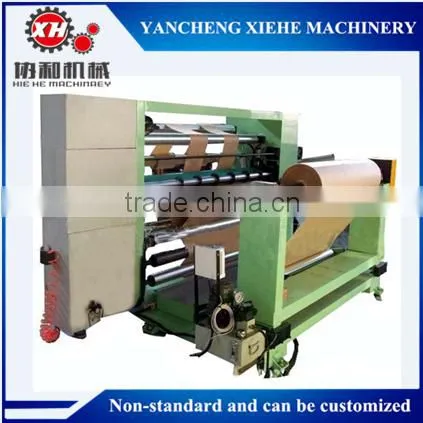

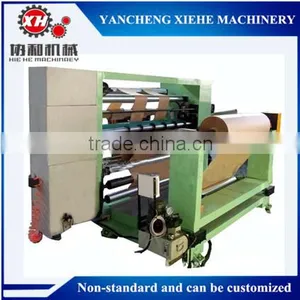

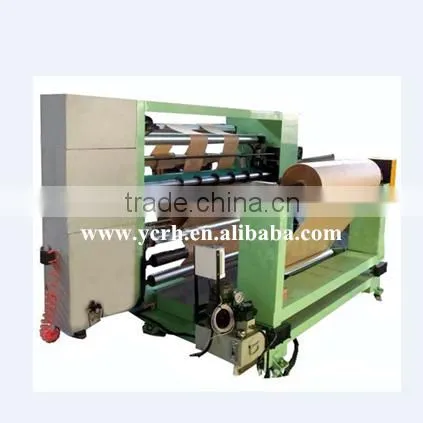

Real picture:
Packing & Delivery:
Packing details: 1. Outside package: standard export wooden cases 2. Inner package : stretch film
Delivery: about 30 days after payment.
Usage:
It applied to BOPP, PET, CPP, CPE, PVC, aluminum foil, paper-like materials such as volume of the sub-section, in the production process depending on the need for cutting-edge materials, such as slitting.
Main parameters:
1. |
Models |
SH-700 |
SH-1100 | SH-1300 |
2. |
Maximum coiling slitting width |
700mm |
1100mm | 1300mm |
| 3. | Maximum diameter of coiling slitting | Ø600mm | Ø600mm | Ø600mm |
4 |
Coil Slitting width |
30~600mm |
30~1000mm | 30~1200mm |
5. |
Cutting speed | 5~160m/min | 5~160m/min | 5~160m/min |
6. |
Correcting errors |
<±0.5mm |
<±0.5mm | <±0.5mm |
7. |
Host power |
2.2kw |
3kw | 3kw |
| 8. | Machine weight | 1200kg | 1500kg | 1800kg |
| 9. | Dimensions | 2000*1110*1400mm | 2400*1110*1400mm | 2600*1110*1400mm |
World-wide Customers:
One year warranty period after the installation. Technical personnel will be assigned to the customer side for installation and setting up, including on site layout of equipment, pipe and line arrangement.
Welcome to contact us and visit our company !
