Main Features of Asphalt Mixing Plant
1. The original modular design of the mixing plant makes transport and installation work quick and convenient. It can separate extra-large flotsam from usable stuff.
2. The loop belt feeder for the measuring hopper has a frequency-conversion speed regulator which can provide high and low speed. Its original structure facilitates belt change and makes material feeding more fluent, which reduces power consumption. Besides, there is a warning light which will remind the user when the machine uses up raw material.

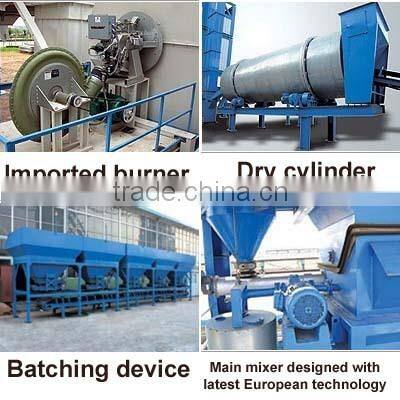

3. The high-efficiency and heat-preservation drying drum and the special vanes make heat exchange more sufficient. Moreover, the high-efficiency and energy-saving imported burner can use both heavy oil and diesel, which reduces energy consumption.

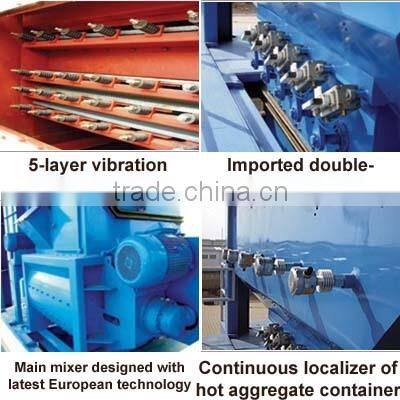

4. The vibrating screen adopts the linear and completely-closed design with the vibrator placed outside. The sieving efficiency is high, the maintenance and changing of screen is easy, and the imported bearings are more reliable.
5. The hot aggregate bin is equipped with a continuous level indicator which enables the operator to know the level of material at a glance. The measurement of aggregate is conducted twice through large and small doors, which greatly improves the measuring precision. The unique structure of the material emptying door reduces the chance of blockage and will work more reliably.
6. The main mixing machine designed with European technology has double reducers with a high-speed synchronization capacity. Accurately-weighed asphalt can be directly pumped into the agitating kettle and powder material can be conveyed into the agitating kettle through the helix, which makes agitating more even and speedy. Besides, it has an opening to add wood fiber and an inlet to add used material to be recycled.
7. The dust-removing system adopts imported NOMEX bags which limit the density of dust discharged into the air within 50mg/m³, which is completely up to the national standard of environmental protection. The dust blown down will be collected into the collection tank through the dust lifter for reuse to avoid secondary pollution.

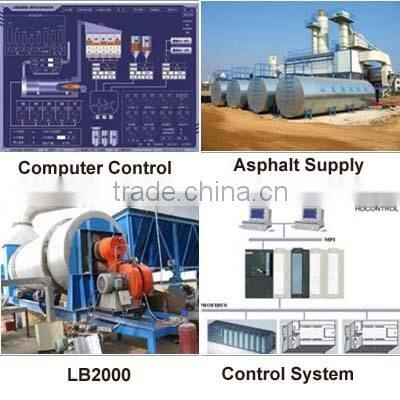

8. The control system adopts the SIEMENS integrated solution which plays a leading role in the industrial automation field. It also uses the PROFIBUS field bus to form a large and medium-sized distributed automatic system. In operation, the equipment adopts the technology of double hot standby on the industrial computer, dynamic display and buttonless design. All operations are done through the mouse. It has the real-time fault monitoring and control system with functions like parameter setting, data management and fault diagnosis. It measures precisely and can be controlled automatically, semi-automatically and manually, showing a stable and reliable performance.
Type |
LB750 |
|
Rated production |
60t/h |
|
Cold Aggregate Bin |
4×6m3 |
|
Dry Cylinder |
1.3m×5m |
|
Bag-type Dust-collector |
CNM240 |
|
Emission Standard |
50mg/nm3 |
|
Vibrating Screen |
4 layers |
|
Hot Aggregate Bin |
12t |
|
Mixing Kettle Capacity |
750kg |
|
Mixing Cycle |
45s |
|
Mineral Powder Tank Volume |
30t |
|
Asphalt Tank Volume |
30000L |
|
Heat Conduction Oil Stove |
200,000 kcol/h |
|
End-product Container Volume |
50t |
|
Control System |
Manual /Semi-auto / Automatic |
|
Weighing Accuracy |
Aggregate |
≤±0.4% |
Powder Material |
≤±0.3% |
|
Asphalt |
≤±0.2% |
|
General Installed Power |
210kw |
|

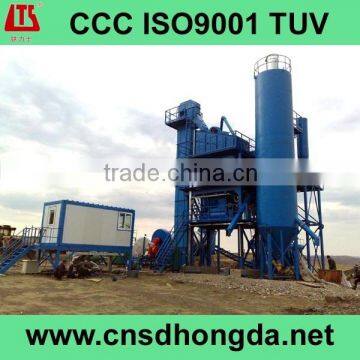

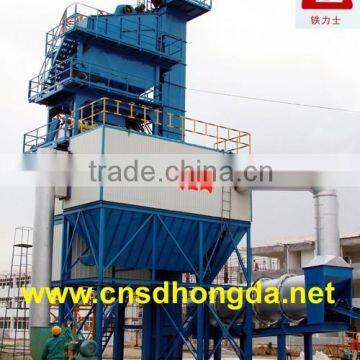

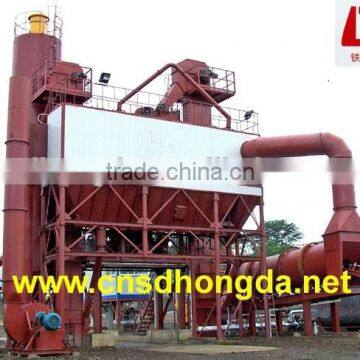

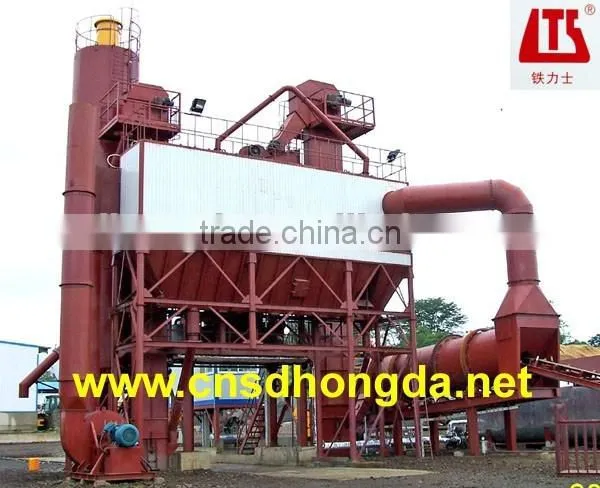

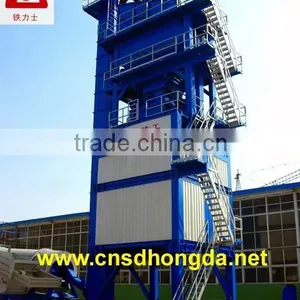

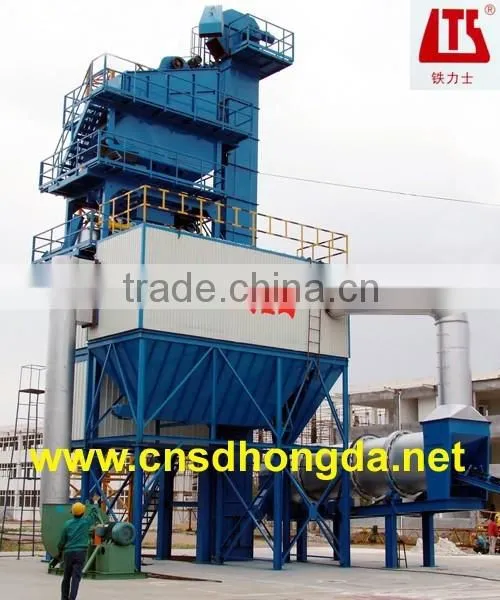

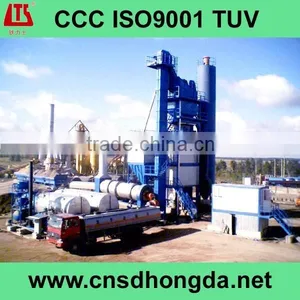

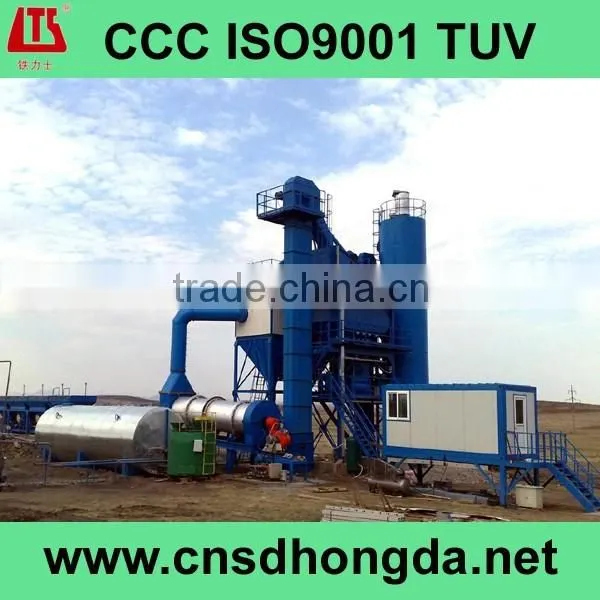

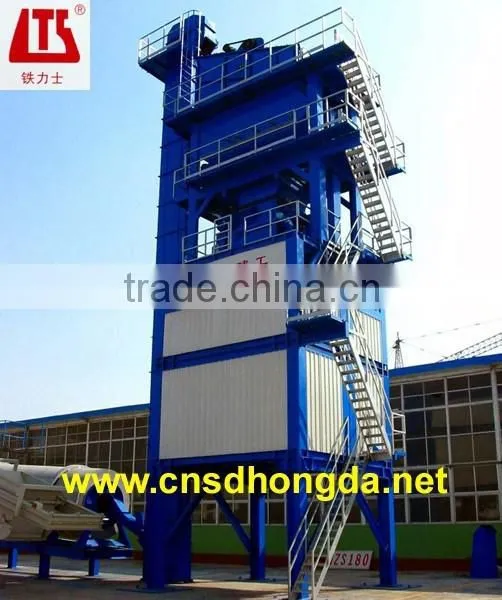

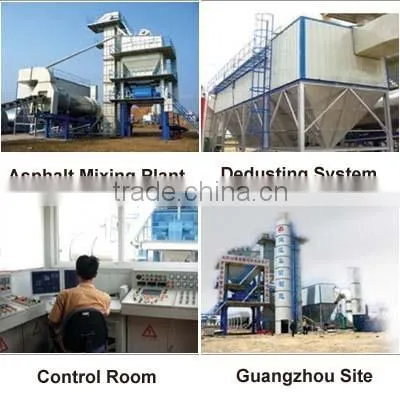

Detail Pictures of Asphalt Mixing Plant
Our main products cover 12 series with more than 80 varieties, such as:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
Why Choose TLS?
Reply in first time
Arrange production in first time
Effect transportation in first time
Solve problem in first time
R&D Technical Support
We have a professional R&D team for research and development of new techniques and products. We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.
Before Sale Service
Before sales, we provide our customers with professional solutions on Asphalt Mixing Plant according to customers' situations.
After Sale Service
Turn-Key Solutions
Free Erection & Commissioning Service
Operation Training Service
Spare Parts Supply ( all working life )
1.Is the price you offer is best price?
The price we offer is our normal price,We can discuss it according to your quantity and requirement.We will definitely try our best to provide you the best price as we can.
2.What's your Delivery Time?
It depends on your special requirements. Normally the delivery time is 25- 35 working days.
3.Do you want to know more about this company before you make a deal? Request an Assessment Report.
Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers.
4.How long is your Warranty period?
12 months since delivery the machine .
More information can be get by contact with HONGDA Group.
You are warmly welcomed to visit our products!
If you have any question, please feel free to contact us.
