Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant thumbnail-1
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant thumbnail-2
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant thumbnail-3
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant thumbnail-4
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant thumbnail-5
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant thumbnail-6
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant photo-1
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant photo-2
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant photo-3
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant photo-4
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant photo-5
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Hongda Construction Machinery Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Power Type Electric
Place of Origin Shandong, China
Brand Name Tie Li Shi (Iron Giant), Famous Trademark of China
Model Number HZS60-HZS240
Power(W) 60
Dimension(L*W*H) 27m*11.5m*5m
Weight 65 t
Certification CCC ISO9001 TUV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

      Concrete Batching Plant,

   Concrete Mixing Plant,

 Beton Mixing Plant

    Tie Li Shi (Iron Giant)Brand, Famous Trademark of China

CCC/ISO9001/TUV Certified

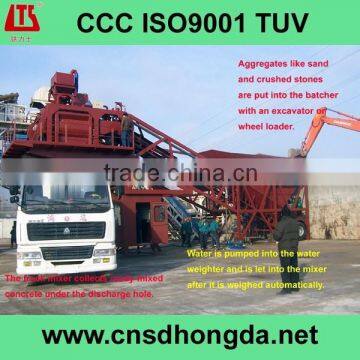

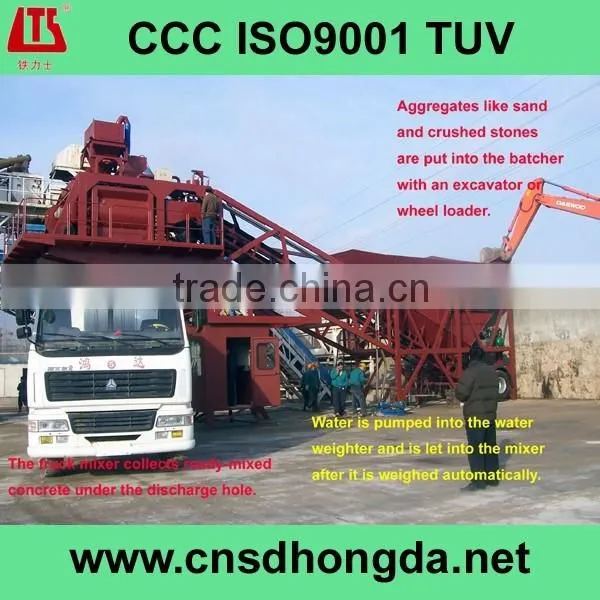

I. Introduction to Concrete Batching Plant

HZS series concrete mixing station is fully automatic concrete mixing system equipment , composed by ingredients, mixing, electrical control system, powder system etc , with a separate manual control, with the highprecision computer control , the separate manual control, and the following advantages: the ratio of storage, automatic fall compensation, and with the printing system, can automatically complete the scheduled cans times production.

The machine is used for construction industry, civil construction, highways, railways, bridges, electricity, water, ports, airports and other projects, can be the mixing equipment of commercial concrete , and can be composed of a variety of different forms and different specifications of modular concrete mixing station according to the needs of different users



II. Main Technical Parameters of Concrete Batching Plant

Model

HZS/HLS60

HZS/HLS90

HZS/HLS120

HZS/HLS180

HZS/HLS240

Theoretical Production
(m3/h)

60

90

120

180

240

Main Mixer

JS1000

JS1500

JS2000

JS3000

JS4000

Measuring Scope & Precision

Stone(kg)

2000±2%

2500±2%

3000±2%

4000±2%

5000±2%

Cobble(kg)

2000±2%

2500±2%

3000±2%

4000±2%

5000±2%

Cement(kg)

600±1%

900±1%

1200±1%

1800±1%

2400±1%

Mingled materials(kg)

300±1%

500±1%

600±1%

900±1%

1200±1%

Water(kg)

300±1%

400±1%

500±1%

800±1%

1000±1%

Additives(kg)

30±1%

30±1%

50±1%

80±1%

100±1%

Batching Unit

The number and capacity of batching bins as well as their installation forms can be regulated according to customers’ demands.

Powder Silo

The capacity and number of powder silos as well as the accessories vary with customers’ demands.

General Power (kw)

80

105

125

175

220

Discharging Height(m)

3.8

3.8

3.8

3.8

3.8



III. Brief Introduction to Our Company

We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 29 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”.Our products have passed CE, CCC and ISO9001 quality certifications. Our main products are:

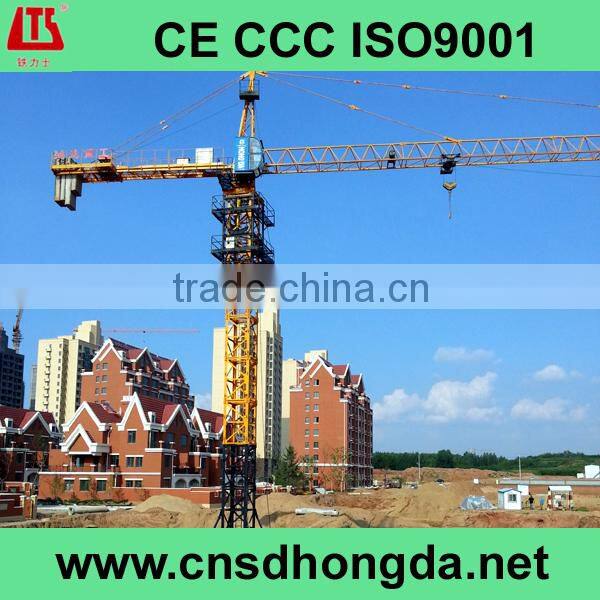

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

http://www.china.cn/product-detail/Tower-Crane-QTZ200-6524-with-CE_223930369.html

http://www.china.cn/product-detail/Best-Price-Professional-China-Made-QTZ80A_2000992670.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

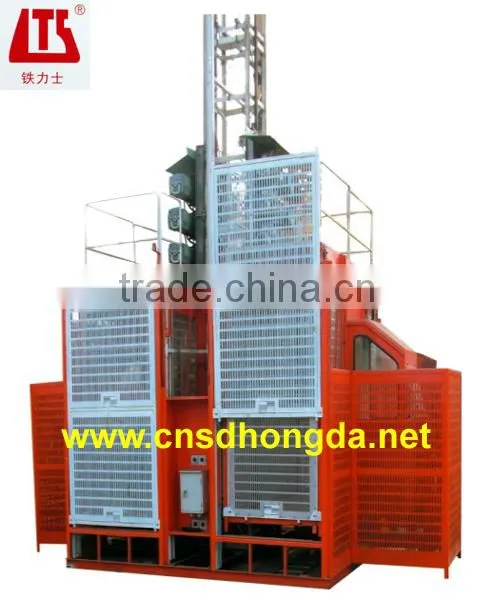

2. Construction Elevators(multi-speed, stepless-speed);

http://www.china.cn/product-detail/CCC-ISO9001-Approved-Double-cage-SC100_2016688622.html

http://www.china.cn/product-detail/Construction-Hoisting-Elevator-High-Efficiency-Quality_2017583248.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

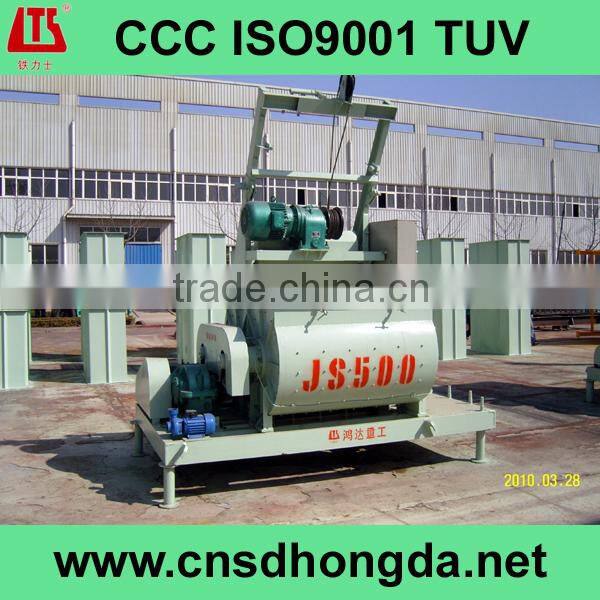

3. Concrete Mixers(rotary-drum-type, double-horizontal-shaft);

http://www.china.cn/product-detail/2014-New-Designed-Hot-Selling-JS350_60009620699.html

http://www.china.cn/product-detail/Concrete-Mixer_373877170.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

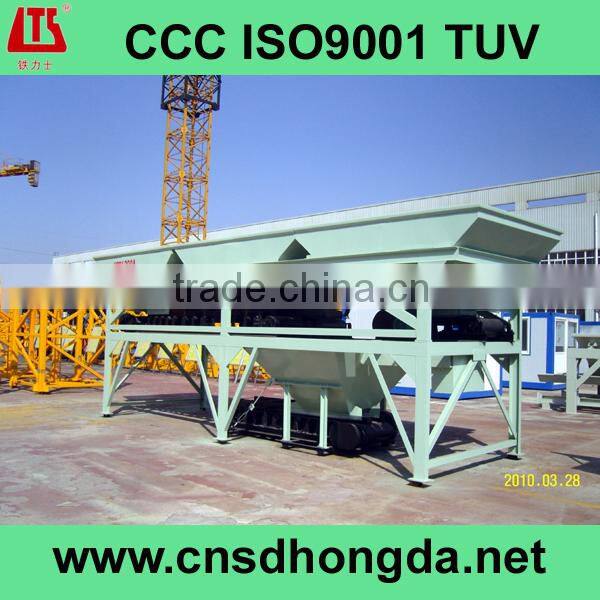

4. Concrete Batchers;

http://www.china.cn/product-detail/PLD1200C-Concrete-Batcher-with-CCC-ISO9001_1991130583.html

http://www.china.cn/product-detail/PLD1600C-Concrete-Batcher-on-Sale-concrete_1990878829.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

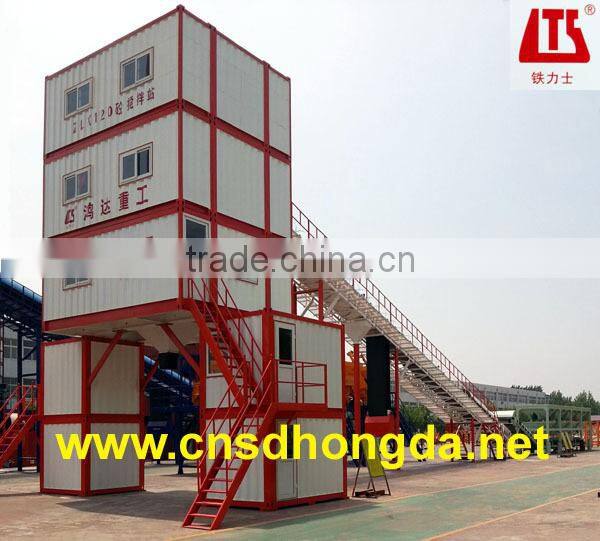

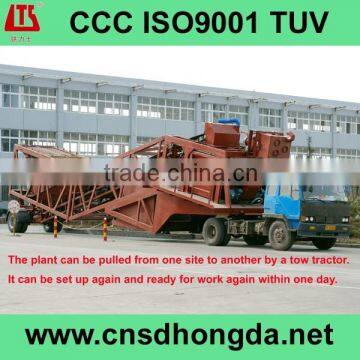

5. Concrete Mixing/BatchingPlants(25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

http://www.china.cn/product-detail/High-Quality-China-Made-HZSX120-Ready_2003569720.html

http://www.china.cn/product-detail/New-Designed-Professional-YHZS60-Mobile-Concrete_1965899661.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

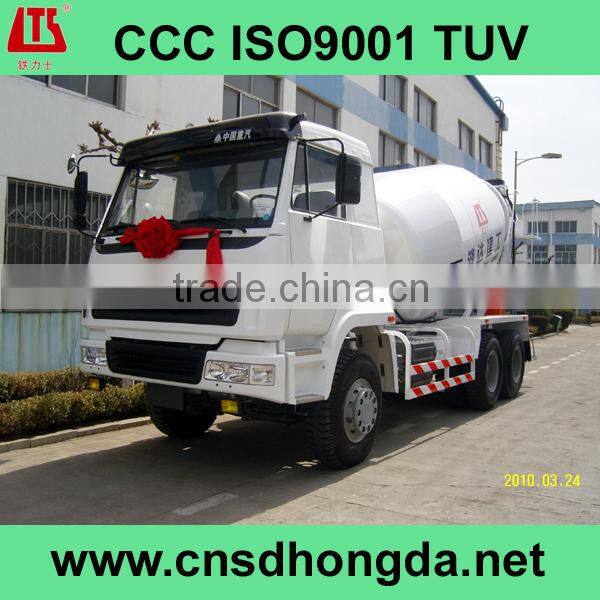

6. Concrete Truck Mixers(6-16m3);

http://www.china.cn/product-detail/New-Competitive-Professional-10m3-Concrete-Truck_2022223363.html

http://www.china.cn/product-detail/Self-loading-12m3-Concrete-Truck-Mixer_2022221660.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant



7. Truck-mounted Concrete Pumps (diesel, electric);

http://www.china.cn/product-detail/2014-New-Designed-HDT5120THB-Truck-mounted_2023195646.html

http://www.china.cn/product-detail/Truck-mounted-Concrete-Pump-2014-new_222860643.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

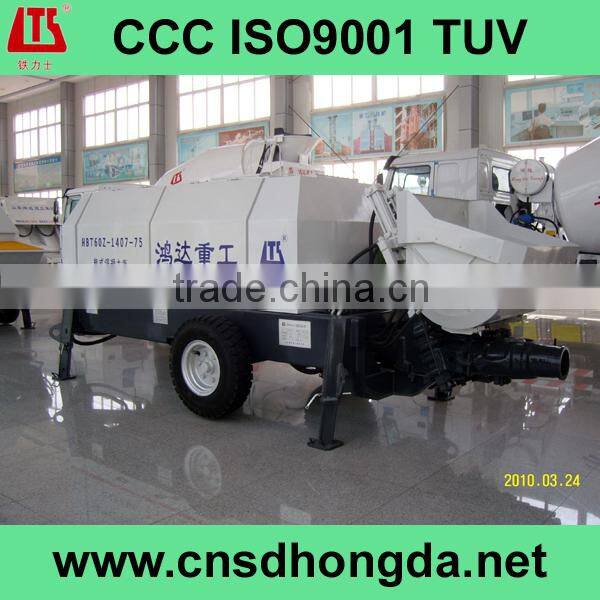

8. Trailer-mountedConcrete Pumps (diesel, electric);

http://www.china.cn/product-detail/60m3-h-Trailer-mounted-Concrete-Pump_222859569.html

http://www.china.cn/product-detail/2014-Hot-selling-60m3-h-Trailer_224579726.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

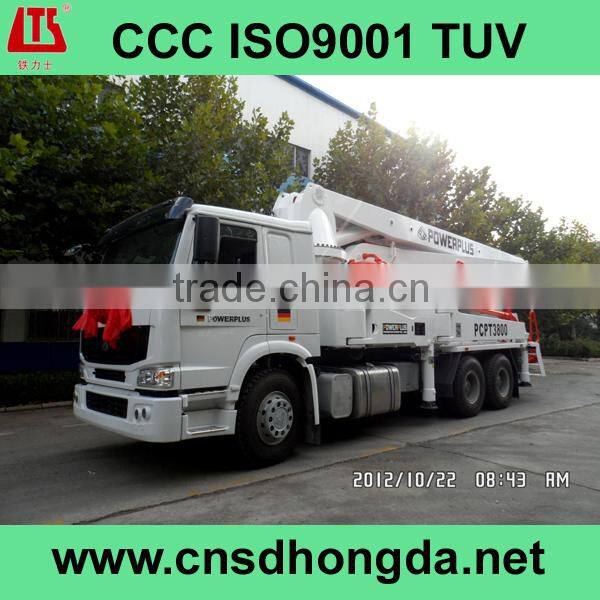

9.Concrete Pump Trucks (with 24-52m booms);

http://www.china.cn/product-detail/Excellent-performance-37m-Concrete-Pump-Truck_224655075.html

http://www.china.cn/product-detail/High-Efficiency-china-Made-HONGDA-Concrete_224659305.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

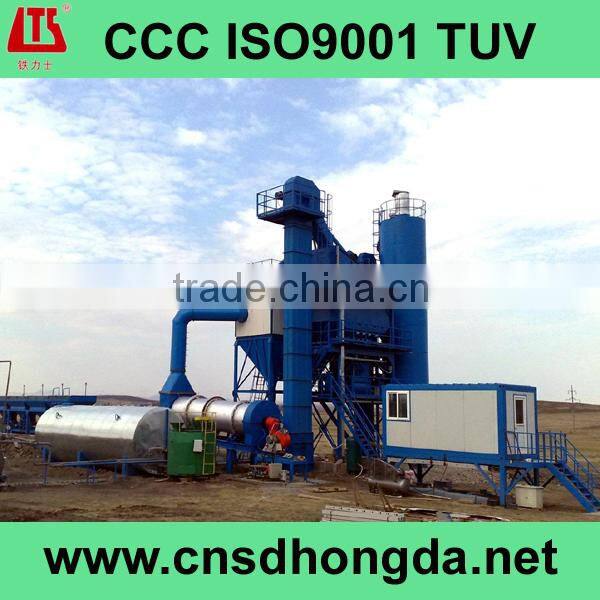

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);

http://www.china.cn/product-detail/120t-h-Asphalt-mixing-plant-2014_975734506.html

http://www.china.cn/product-detail/-40t-h-320t-h-Asphalt_960651858.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant



11.Stabilized SoilMixing Plants;

http://www.china.cn/product-detail/High-Efficiency-Quality-Professional-WCB300-Stabilized_60006572984.html

http://www.china.cn/product-detail/WCB300-Stabilized-Soil-Mixing-Plant-on_1983104167.html

Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant

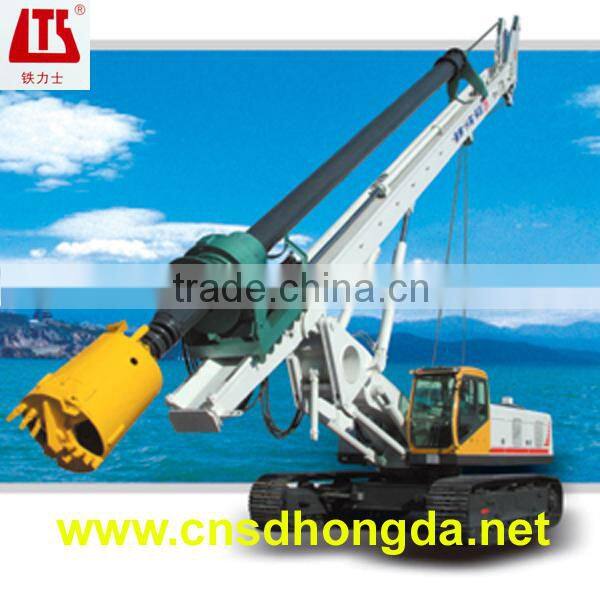

12. Rotary Drilling Rigs...

http://www.china.cn/product-detail/Excellent-Performance-HDR230-Rotary-Drilling-Rig_60006369032.html

http://www.china.cn/product-detail/HDR230-20-40-60m-Rotary-Drilling_508380285.html

 Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant
