Mobile Concrete Batching Plant YHZS60
with Reasonable Price on Sale
Tie Li Shi (Iron Giant) Brand
CCC,ISO9001&TUV approved
I. Description of Mobile Concrete Batching Plant
The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) are developed by HONGDA GROUP on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.
II. Main Technical Parameters of Mobile Concrete Batching Plant
Model |
YHZS60 |
Rated Productivity |
50-60m3/h |
Main Mixer |
JS1000 |
Max. Aggregate Diameter |
80mm |
Capacity of Aggregate Bin |
4*5.5m3 |
Aggregate Measuring and Conveying Mode |
Belt Conveyer |
Measuring Scope & Accuracy of Aggregate |
3000Kg ±2% |
Measuring Scope & Accuracy of Cement |
600Kg ±1% |
Measuring Scope & Accuracy of Water |
400Kg ±1% |
Measuring Scope & Accuracy of Additives |
50Kg ±1% |
General Power |
85Kw |
Power Supply |
380V/50HZ |
Total Weight |
24T |
Transport Mode |
Pulled by a truck chassis |
Outline dimension (In Service: L×W×H) |
17.7mX3.6mX8.2m |
Outline dimension (In Traveling: L×W×H) |
18.3mX2.4mX4.35m |
Discharge Height |
3.8 m |
Powder Material Silos (for customers’ choice) |
Chosen according to customer’s demands |
Screw Conveyers (for customers’ choice) |
Chosen according to customer’s demands |
III. Design Sketch of Mobile Concrete Batching Plant

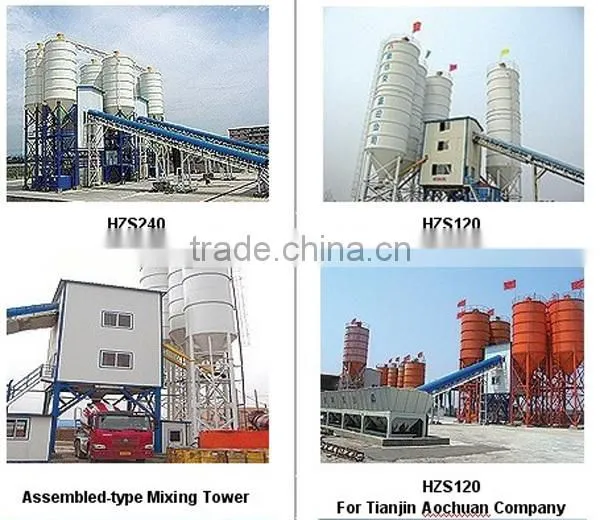

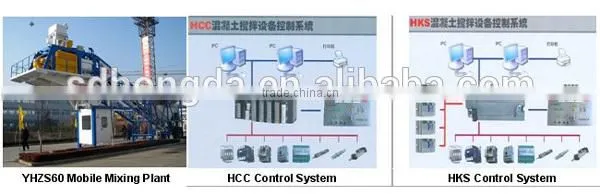

IV. Detail Pictures of Mobile Concrete Batching Plant
V. Brief Introduction to our Company
We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 29 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”.Our productshavepassed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years. Our main products are:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
You are warmly welcomed to visit our products! Our web page
If you have any question, please feel free to contact us.
You can send email to salesat,
or you can call us +86 535 7287987
or fax to us +86 535 7287987 any time!
