HZSX120 Concrete Mixing Plant (120m3/h) With CCC/ISO9001/TUV Certificate on Sale

HZSX120 Concrete Mixing Plant (120m3/h) With CCC/ISO9001/TUV Certificate on Sale photo-1

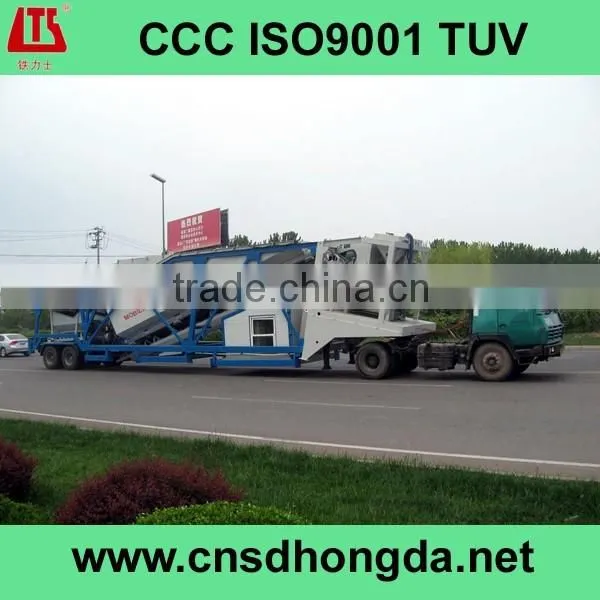

HZSX120 Concrete Mixing Plant (120m3/h) With CCC/ISO9001/TUV Certificate on Sale photo-2

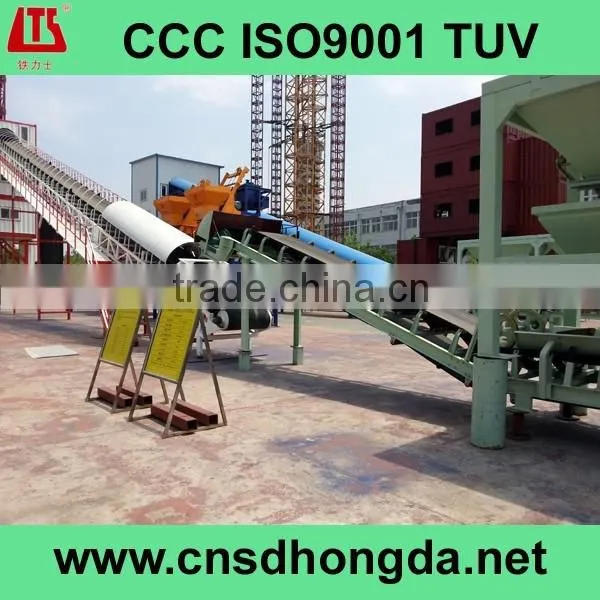

HZSX120 Concrete Mixing Plant (120m3/h) With CCC/ISO9001/TUV Certificate on Sale photo-3

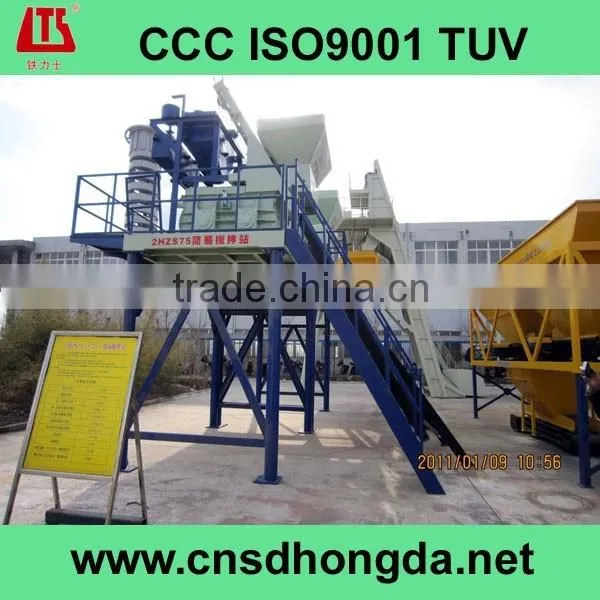

HZSX120 Concrete Mixing Plant (120m3/h) With CCC/ISO9001/TUV Certificate on Sale photo-4

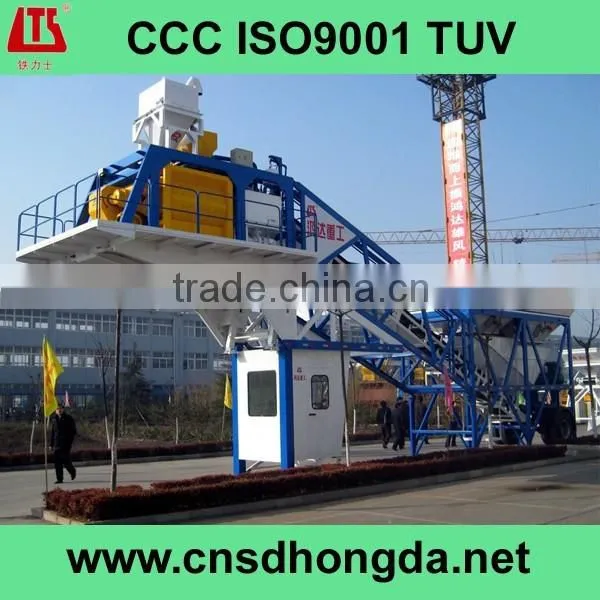

HZSX120 Concrete Mixing Plant (120m3/h) With CCC/ISO9001/TUV Certificate on Sale photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Power Type Electric
Place of Origin Shandong, China
Brand Name TLS (Iron Giant)
Model Number HZSX120
Power(W) 160KW
Dimension(L*W*H) 44m*18m*12.7m
Weight 62000KG
Certification ISO9001/CCC/TUV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

  HZSX120 Concrete Mixing Plant (120m3/h)

with CCC/ISO9001/TUV Certificate on Sale

I.Brief Introduction to Concrete Mixing Plant

The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) are developed by HONGDA GROUP on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.



II.Technical Parameters of Concrete Mixing Plant

Model

HZS120

Rated Productivity

120m3/h

Main Mixer

JS2000 (2m3)

Max Aggregate Size

80mm

Aggregate Bin Capacity

4×20m3

Aggregate Conveying Mode

Flat Belt Conveyor

Aggregate Measuring Accuracy

2×3000Kg ±2%

Cement Measuring Accuracy

1200Kg ±1%

Fly Ash Measuring Accuracy

600Kg ±1%

Water Measuring Accuracy

600Kg ±1%

Additive Measuring Accuracy

50Kg ±1%

Total Power

160Kw

Gross Weight

62000KG (excluding silos and screw conveyors)

Power Supply

380V/50HZ

Outline dimension  (In Service: L×W×H)

44m×18m×12.7m

Discharge Height

3.8 m

Silos  (for customer’s choice)

The number and capacity are chosen

according to customers’ requirements.

Screw Conveyors  (for customer’s choice)

Each silo needs one φ219 or φ273 screw conveyor.

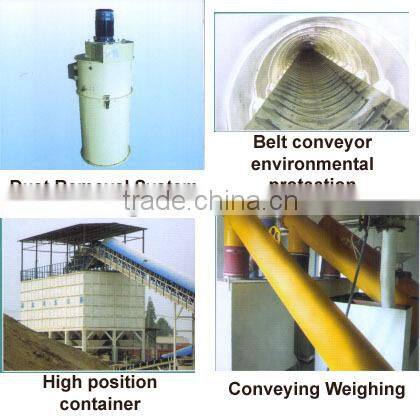

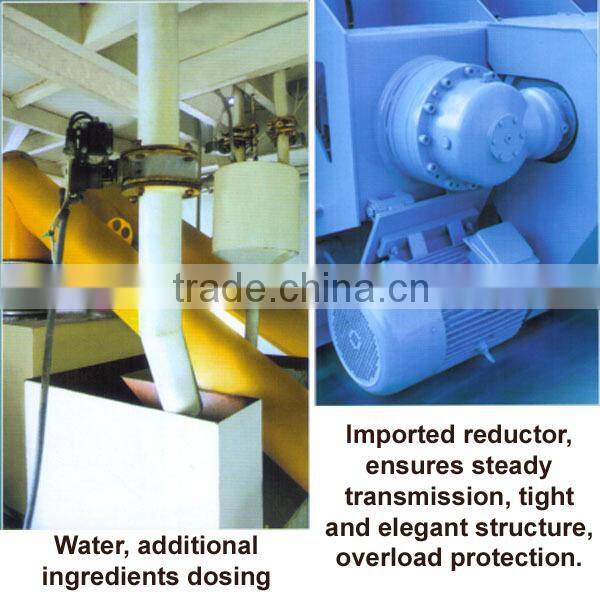

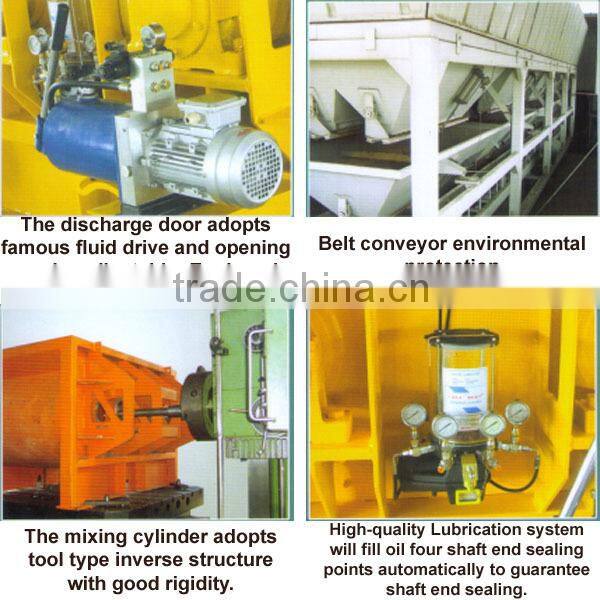

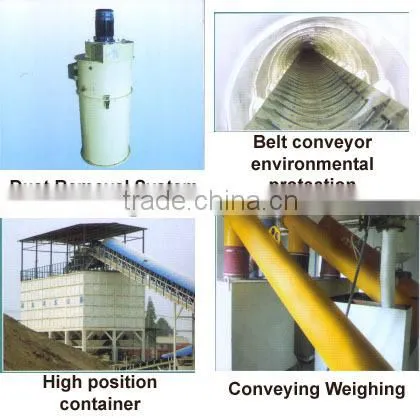

III.Detail Pictures of Concrete Mixing Plant

HZSX120 Concrete Mixing Plant (120m3/h) with CCC/ISO9001/TUV Certificate on Sale



HZSX120 Concrete Mixing Plant (120m3/h) with CCC/ISO9001/TUV Certificate on Sale



HZSX120 Concrete Mixing Plant (120m3/h) with CCC/ISO9001/TUV Certificate on Sale



IV.Brief Introduction to Our Company

We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 30 years. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the goverment for many consecutive years. Our main products are:

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

2. Construction Elevators (multi-speed, stepless-speed);

3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);

4. Concrete Batchers;

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

6. Concrete Truck Mixers (6-16m3);

7. Truck-mounted Concrete Pumps (diesel, electric);

8. Trailer-mounted Concrete Pumps (diesel, electric);

9. Concrete Pump Trucks (with 24-52m booms);

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);

11. Stabilized Soil Mixing Plants;

12. Rotary Drilling Rigs...
