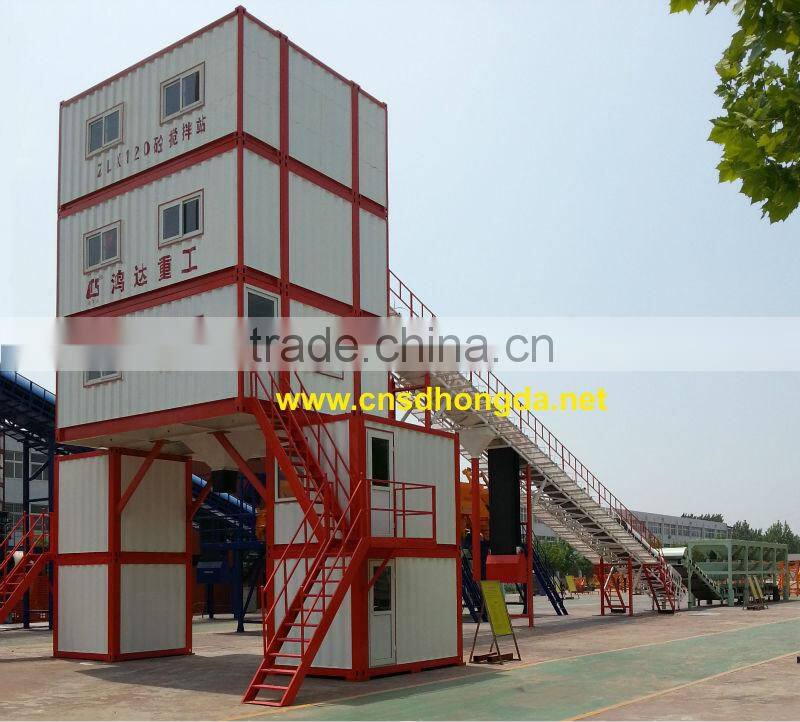

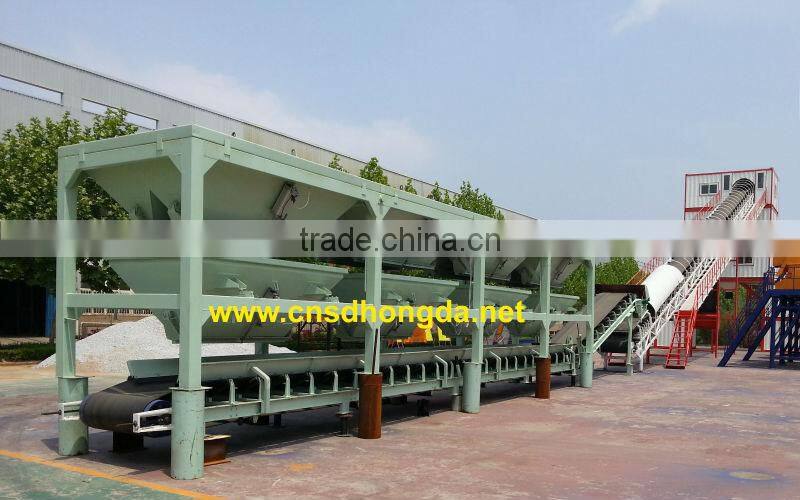

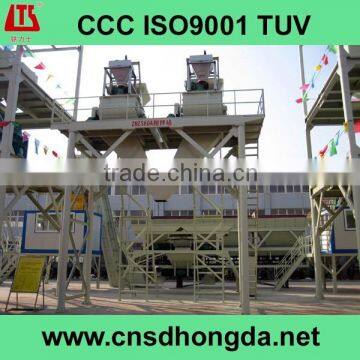

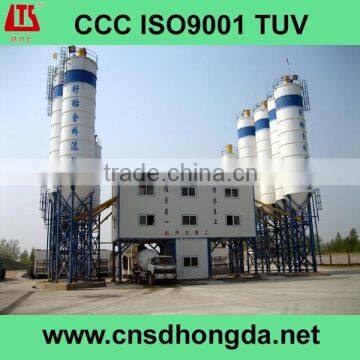

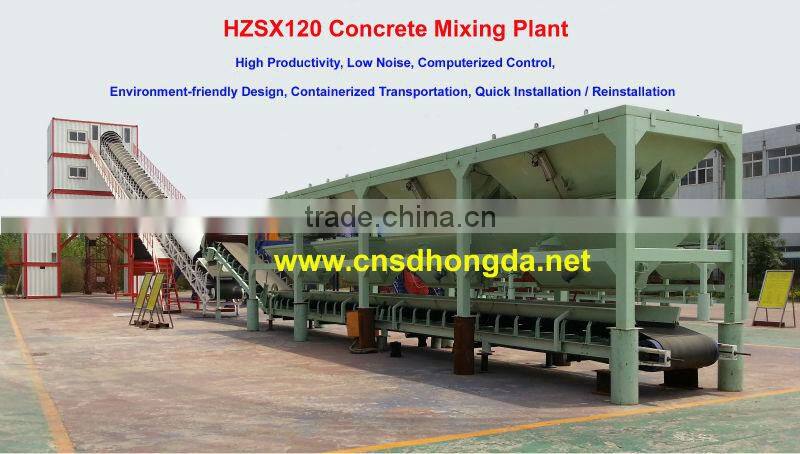

2015 new Designed 120m3/h HZSX120 Concrete Mixing Plant
with CCC/ISO9001 Certificates on Sale
TLS(Iron Giant) Brand, Famous Trademark of China
CCC/ISO9001 Approved
Brief Introduction to Concrete Mixing Plant
The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) are developed by HONGDA GROUP on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.
Main Technial Parameters of Concrete Mixing Plant
Model |
HZS120 |
Rated Productivity |
120m3/h |
Main Mixer |
JS2000 (2m3) |
Max Aggregate Size |
80mm |
Aggregate Bin Capacity |
4×20m3 |
Aggregate Conveying Mode |
Flat Belt Conveyor |
Aggregate Measuring Accuracy |
2×3000Kg ±2% |
Cement Measuring Accuracy |
1200Kg ±1% |
Fly Ash Measuring Accuracy |
600Kg ±1% |
Water Measuring Accuracy |
600Kg ±1% |
Additive Measuring Accuracy |
50Kg ±1% |
Total Power |
160Kw |
Gross Weight |
62000KG (excluding silos and screw conveyors) |
Power Supply |
380V/50HZ |
Outline dimension (In Service: L×W×H) |
44m×18m×12.7m |
Discharge Height |
3.8 m |
Silos (for customer’s choice) |
The number and capacity are chosen according to customers’ requirements. |
Screw Conveyors (for customer’s choice) |
Each silo needs one φ219 or φ273 screw conveyor. |
Our main products cover 12 series with more than 80 varieties, such as:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
Why Choose Hongda?
Reply in first time
Arrange production in first time
Effect transportation in first time
Solve problem in first time
And Hongda promise to you:
1. Provide technical consultation service for customer, do well technical follow-up.
2. Installation, debug, and provide relevant technical training.
3. Strictly carry out three guarantees(guaranteed quality, guaranteed quantity and guaranteed repair).
4. Ensure spare parts and components available adequately and timely for all working life.
R&D Technical Support
We have a professional R&D team for research and development of new techniques and products. We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.
Before Sale Service
Before sales, we provide our customers with professional solutions on Concrete Mixing Plant according to customers’ situations.
After Sale Service
Turn-Key Solutions
Free Erection & Commissioning Service
Operation Training Service
Spare Parts Supply ( all working life )
1.Is the price you offer is best price?
The price we offer is our normal price,We can discuss it according to your quantity and requirement.We will definitely try our best to provide you the best price as we can.
2.What's your Delivery Time?
It depends on your special requirements. Normally the delivery time is 25- 35 working days.
3.Do you want to know more about this company before you make a deal? Request an Assessment Report.
Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers.
4.How long is your Warranty period?
12 months since delivery the machine .
More information can be get by contact with HONGDA Group.
You are warmly welcomed to visit our products!
If you have any question, please feel free to contact us.
Contact Person
Steven Liu
Sales Manager
International Business Department
Shandong Hongda Construction Machinery Group Co., Ltd.
ADD: No.26 East Longmen Road, Laiyang, Shandong, China
Business Email: salesat
Alternate Email: steven95at
Business MSN: sdhongdaat
Skype ID: steven69888
Yahoo Msnger: steven69888
QQ ID: 609866558
Mobile Phone: +86 15192261858
Tel: +86 535 7287987
Fax: +86 535 7287987
Website:
