Help Center2015 New Designed Concrete Batching Plant With CCC/ISO9001 Certificate on Sale
Related Products
-
Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing PlantNegotiableMOQ: 1 Set -

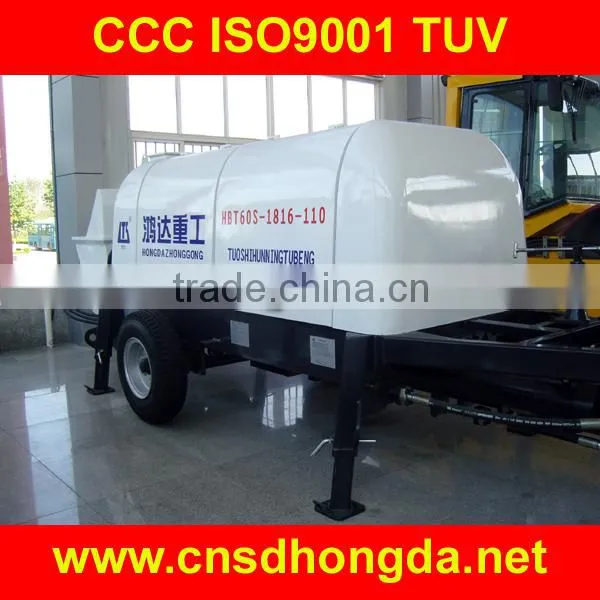

Trailer-mounted Concrete Pump (60m3/h) With CCC/ISO9001 Certificates on SaleNegotiableMOQ: 1 Set
-
2015 New Designed 120m3/h Concrete Mixing Plant With CCC/ISO9001 Certificates on SaleNegotiableMOQ: 1 Set
-
HZSX120 Concrete Mixing Plant (120m3/h) With CCC/ISO9001/TUV Certificate on SaleNegotiableMOQ: 1 Set
-
2015 New Designed Concrete Mixing Plant HZSX120(120m3/h) PriceNegotiableMOQ: 1 Set

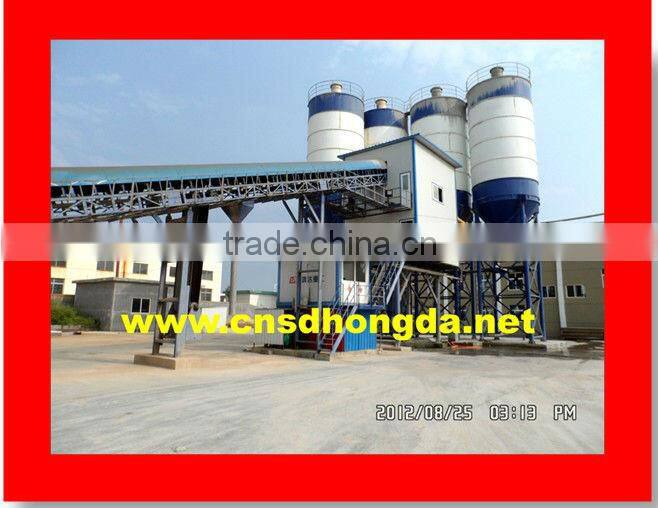

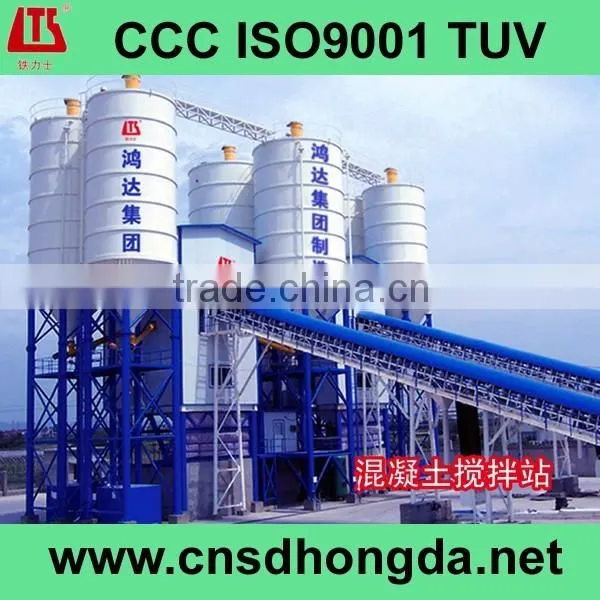

Concrete Mixing/Batching Plant
25-480m3/h, stationary, mobile, conventional-type,
compact-type, simple-type, commercial-type
Specifications
Capacity: 60 m3/h
Mixing Time: 60S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 80KW
The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) are developed by HONGDA GROUP on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.
MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1000
Volume: 1600L
Capacity: 1000L
Mixing blade: 2×8 pcs
Mixing Speed: 25.5 r.min
Mixer Motor: 37kw
Weight: 9880kg
Dimensions: 4640×2250×2250mm
AGGREGATE SYSTEM

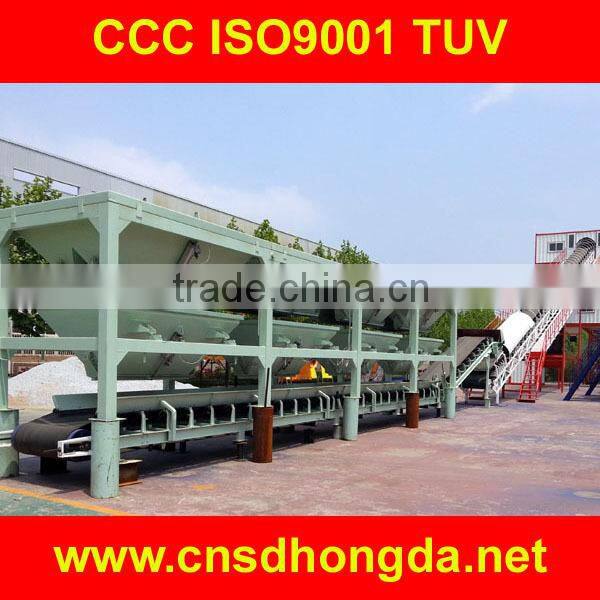

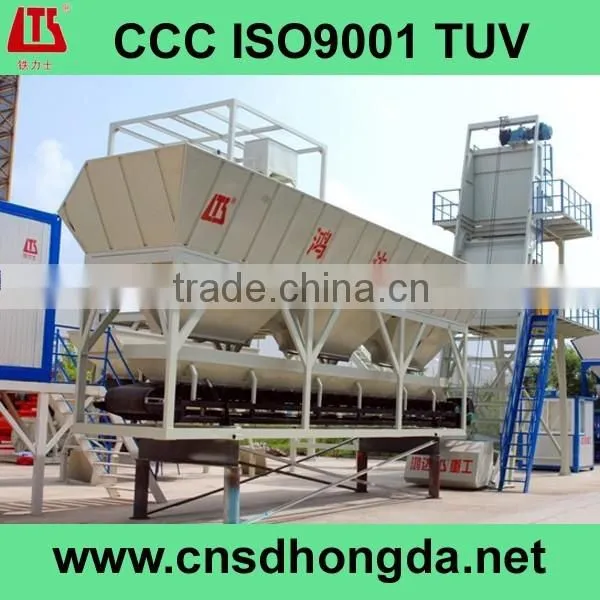

2.1 Aggregate batcher: PLD2400
Volume: 4×12 m3
Capacity: 144 m3/h
Power: 11kw
Weight: 7610 kg
Dimension: 10120×3320×3820mm

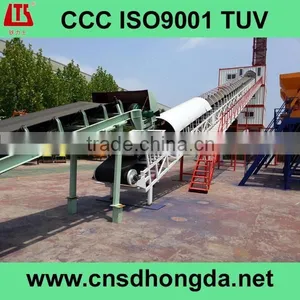

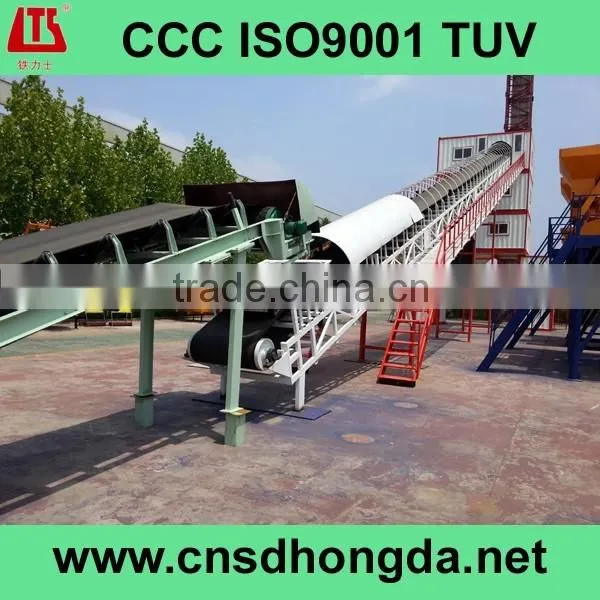

2.2 Aggregate Belt Conveyor 1 unit
Width: 800 mm
Speed: 1.6 m/s
Power of Motor: 11kw
CEMENT SYSTEM (OPTIONAL)
3.1 Cement silo 2units
Capacity: 100 t×2=200 t
Silo Diameter: Φ3000
3.2 Cement Screw Feeder 2units
Diameter: Φ219mm
Length: 9m
ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm
Pump: 3kw
WATER SYSTEM
Motor Power: 3kw
Butterfly Valve: Φ150 mm
Capacity: 80m3/h
AIR SYSTEM
Air Compressor 1unit
Power: 7.5 kw
Pressure: 1.0 Mpa
Air flew: 1.2 m3/min
WEIGHING SYSTEM
7.1 Aggregate Weighing 1unit
Weighing Capacity: 3000kg
Precision: ±1%
7.2 Cement Weighing 1unit
Weighing Capacity: 600kg
Precision: ±1%
7.3 Water Weighing 1unit
Weighing Capacity: 250 kg
Precision: ±1%
7.4 Additive Weighing: 1unit
Weighing Capacity: 40 kg
Precision: ±1%
CONTROL SYSTEM
PLC command and control operation .
Main electrical components : SCHNEIDER or SIMENSE
17’’ colorful computer
Manuel and Auto Control is freely changeable
Our main products cover 12 series with more than 80 varieties, such as:

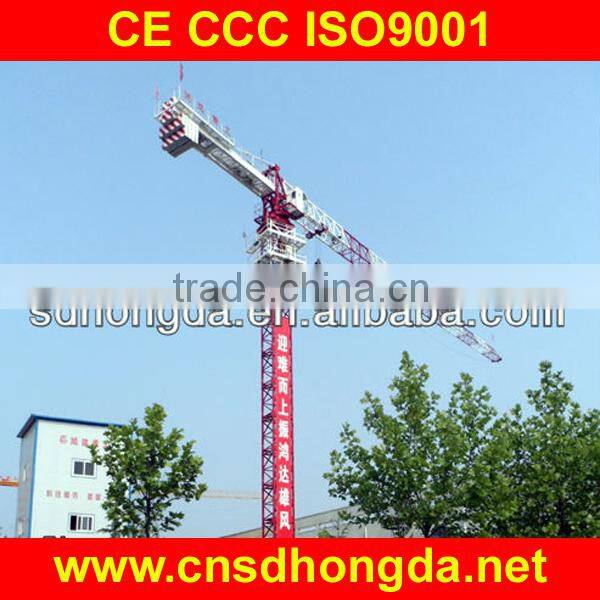

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
http://www.china.cn/product-detail/2014-new-competitive-Building-Construction-QTZ63F_60005836711.html
http://www.china.cn/product-detail/High-Efficiency-Quality-QTZ500-Electric-Tower_60005153435.html

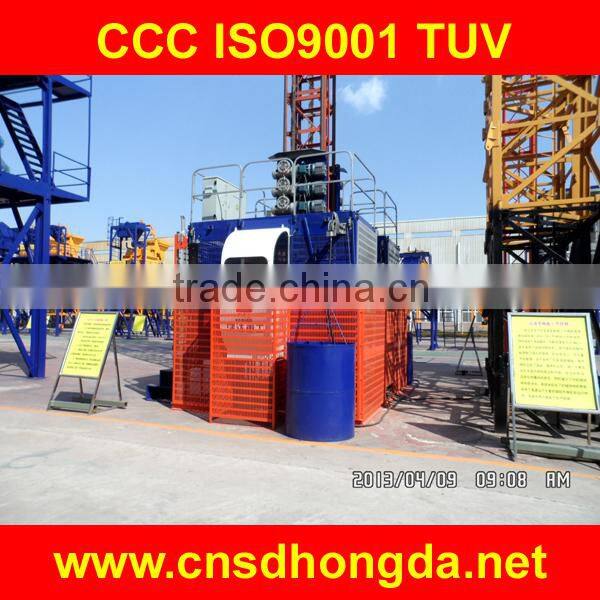

2. Construction Elevators (multi-speed, stepless-speed);
http://www.china.cn/product-detail/Double-cage-SC100-100-Elevation-Platforms_2016703692.html
http://www.china.cn/product-detail/Double-cage-SC100-100-Building-Construction_2016674114.html

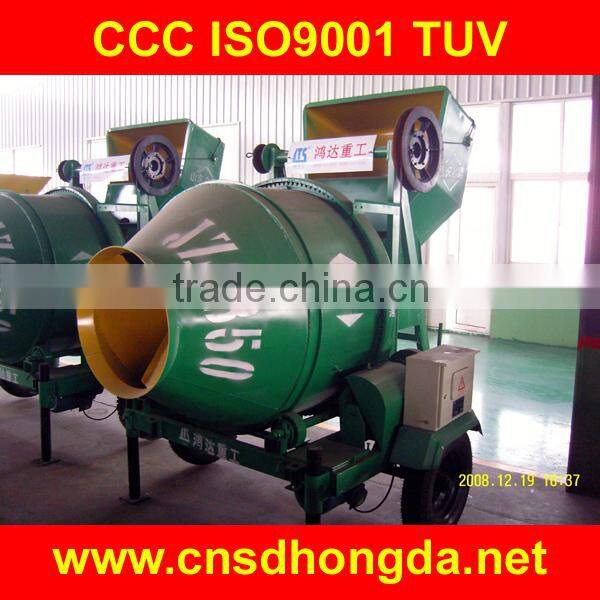

3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
http://www.china.cn/product-detail/High-Efficiency-Low-Energy-Consumption-HONGDA_2005670276.html
http://www.china.cn/product-detail/JS350-Mobile-Concrete-Mixer-CCC-ISO9001_222284609.html

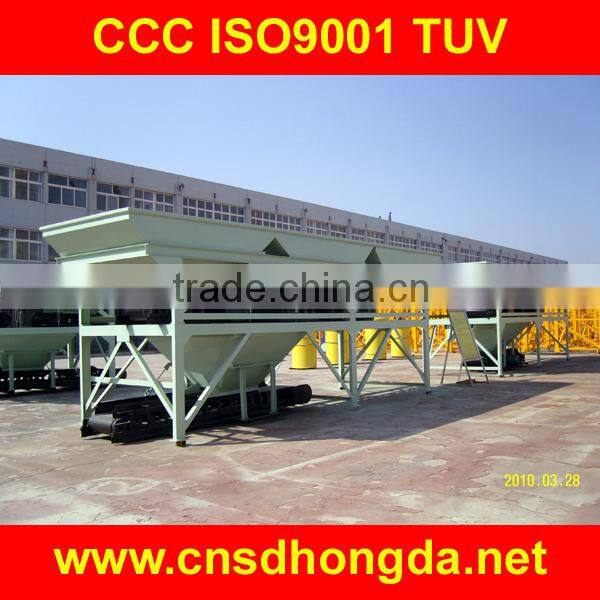

4. Concrete Batchers;
http://www.china.cn/product-detail/PLD1200C-Concrete-Batcher-with-CCC-ISO9001_1991130583.html
http://www.china.cn/product-detail/PLD1600C-Concrete-Batcher-on-Sale-concrete_1990878829.html

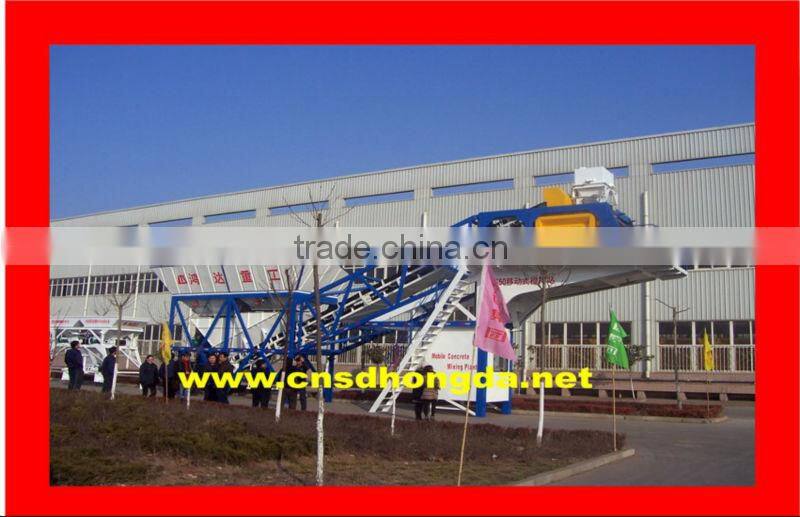

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
http://www.china.cn/product-detail/High-Efficiency-HZS120-HONGDA-Concrete-Batching_521525076.html
http://www.china.cn/product-detail/HZS-HLS60-Concrete-Batching-Plant-with_1239639489.html

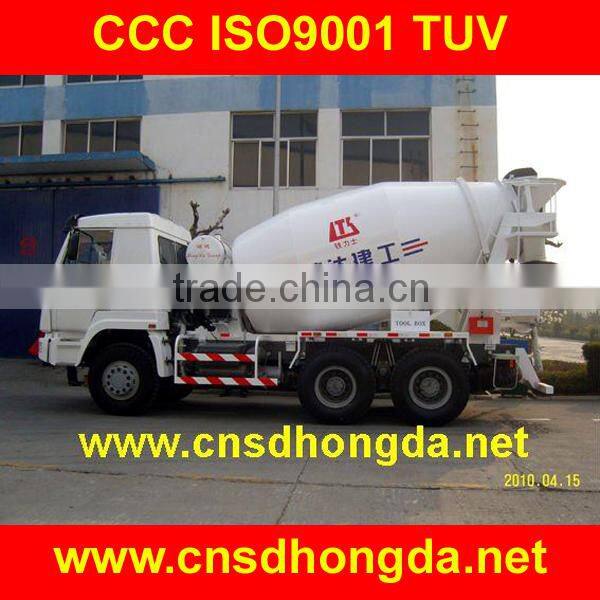

6. Concrete Truck Mixers (6-16m3);
http://www.china.cn/product-detail/2014-New-Designed-Competitive-6m3-Mini_2022270655.html
http://www.china.cn/product-detail/2014-New-Designed-Hot-Selling-8m3_2022155796.html

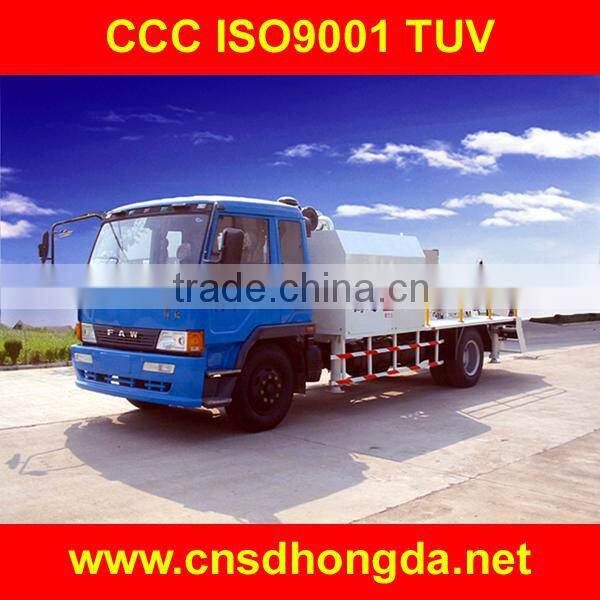

7. Truck-mounted Concrete Pumps (diesel, electric);
http://www.china.cn/product-detail/2014-New-Designed-HDT5120THB-Truck-mounted_2023195646.html
http://www.china.cn/product-detail/Truck-mounted-Concrete-Pump-2014-new_222860643.html

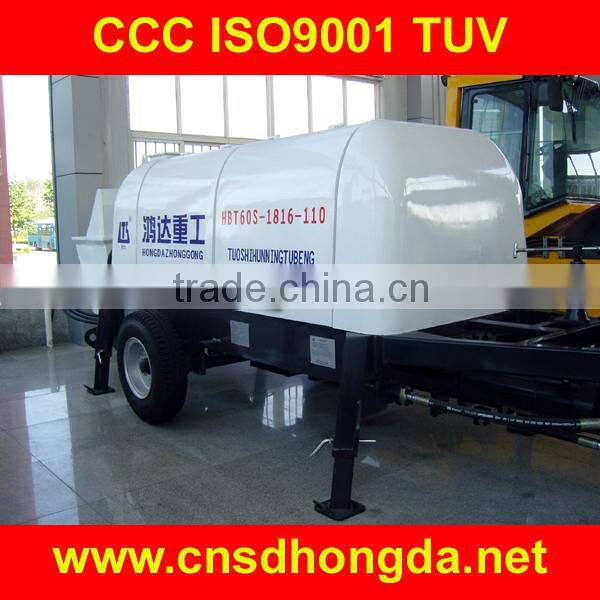

8. Trailer-mounted Concrete Pumps (diesel, electric);
http://www.china.cn/product-detail/High-Efficiency-Low-Energy-Competitive-HBT60S1816_2023055684.html
http://www.china.cn/product-detail/HBT60-Trailer-mounted-Concrete-Pump-diesel_224568798.html

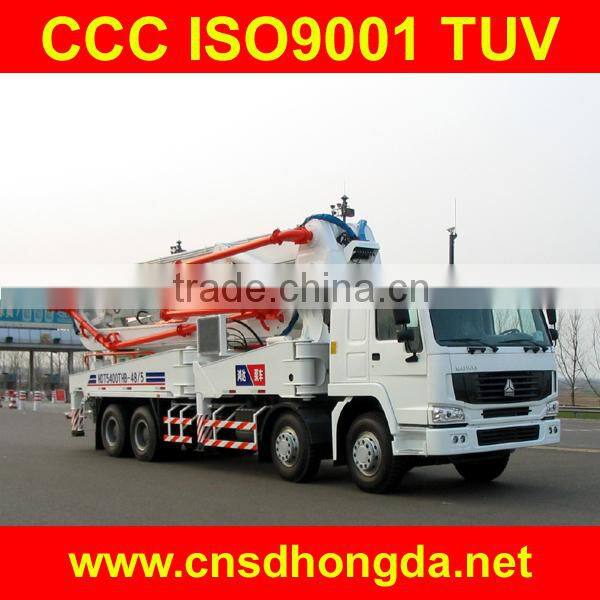

9. Concrete Pump Trucks (with 24-52m booms);
http://www.china.cn/product-detail/2014-New-Hot-Selling-39m-boom_2015806652.html
http://www.china.cn/product-detail/-24m-37m-39m-42m-48m_317394721.html

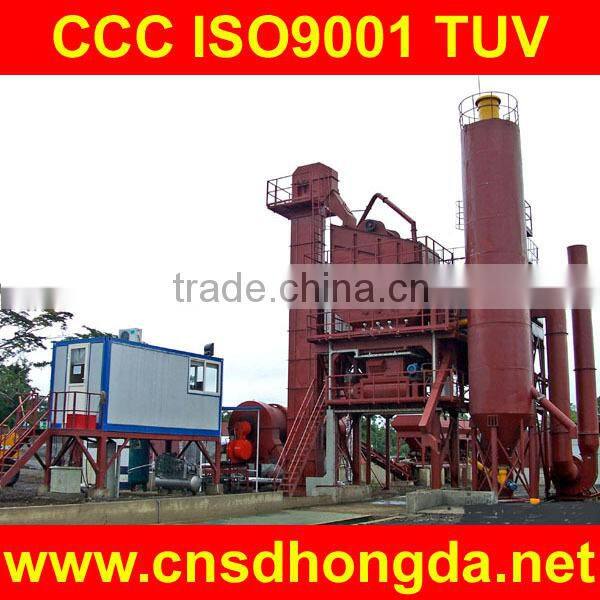

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
http://www.china.cn/product-detail/60T-h-Asphalt-Batching-Plant-Asphalt_912229536.html
http://www.china.cn/product-detail/LB2000-160T-h-Asphalt-Batching-Plant_912227175.html
11. Stabilized Soil Mixing Plants;
http://www.china.cn/product-detail/2014-New-Modular-Designed-WCB300-Stabilized_60006909655.html
http://www.china.cn/product-detail/High-Efficiency-Quality-Professional-WCB300-Stabilized_60006512148.html

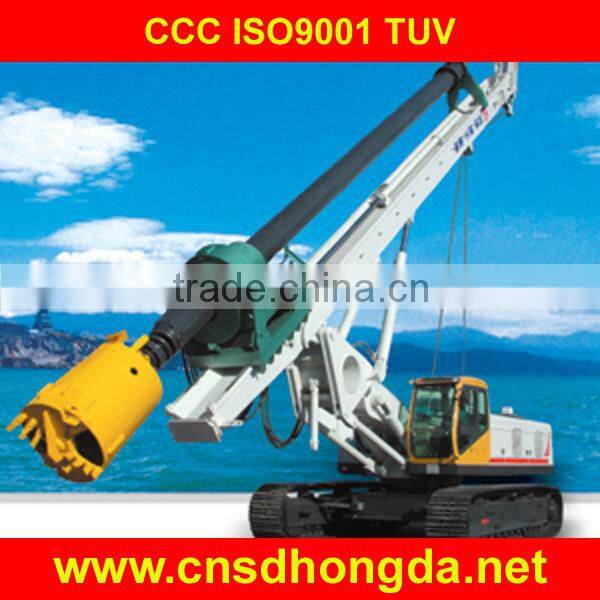

12. Rotary Drilling Rigs...
http://www.china.cn/product-detail/Excellent-Performance-HDR230-Rotary-Drilling-Rig_60006369032.html
http://www.china.cn/product-detail/HDR230-20-40-60m-Rotary-Drilling_508380285.html
Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
Why Choose Hongda?
Hongda promise to you:
1. Provide technical consultation service for customer, do well technical follow-up.
2. Installation, debug, and provide relevant technical training.
3. Strictly carry out three guarantees(guaranteed quality, guaranteed quantity and guaranteed repair).
4. Ensure spare parts and components available adequately and timely for all working life.
R&D Technical Support
We have a professional R&D team for research and development of new techniques and products. We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.
Before Sale Service
Before sales, we provide our customers with professional solutions on Concrete Batching Plant according to customers’ situations.
After Sale Service
Turn-Key Solutions
Free Erection & Commissioning Service
Operation Training Service
Spare Parts Supply ( all working life )
1.Is the price you offer is best price?
The price we offer is our normal price,We can discuss it according to your quantity and requirement.We will definitely try our best to provide you the best price as we can.
2.What's your Delivery Time?
It depends on your special requirements. Normally the delivery time is 25- 35 working days.
3.Do you want to know more about this company before you make a deal? Request an Assessment Report.
Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers.
4.How long is your Warranty period?
12 months since delivery the machine .
More information can be get by contact with HONGDA Group.
Steven Liu
Sales Manager
International Business Department
Shandong Hongda Construction Machinery Group Co., Ltd.
ADD: No.26 East Longmen Road, Laiyang, Shandong, China
Business Email: salesat
Alternate Email: steven95at
Business MSN: sdhongdaat
Skype ID: steven69888
Yahoo Msnger: steven69888
QQ ID: 609866558
Mobile Phone: +86 15192261858
Tel: +86 535 7287987
Fax: +86 535 7287987
